Home >> Isuzu >> 2002 >> Rodeo LS, 2.2 D >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (4L30-E) >> Powertrain Control Module (PCM) (V6) >> Removal

Powertrain Control Module (PCM) (V6): Removal

  1. Disconnect battery ground cable.
  2. Disconnect PCM wiring harness connectors from PCM.
  3. Remove PCM from bracket.

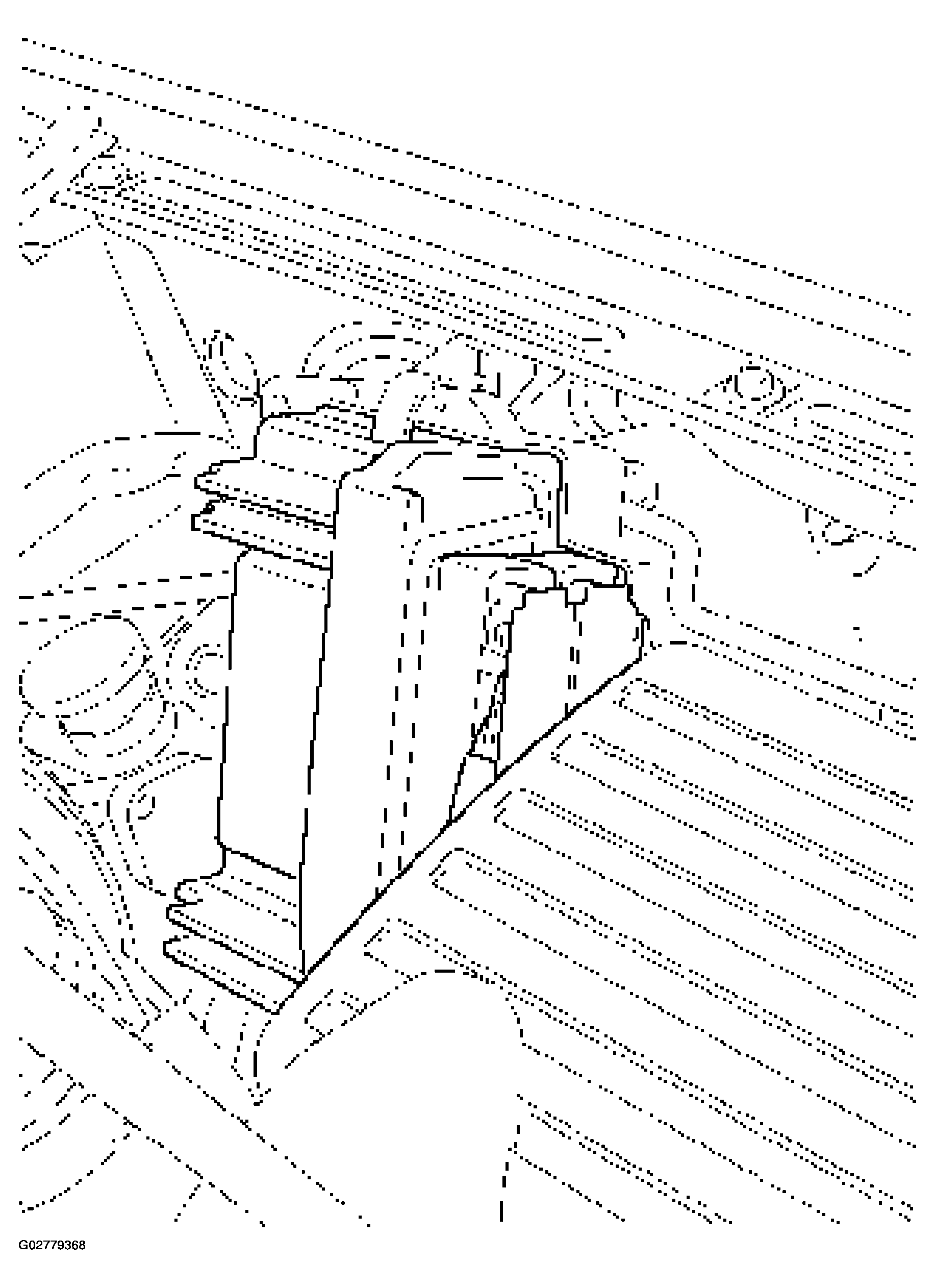

Fig 1: Removing PCM (V6)
G02779368
