Torque Specifications

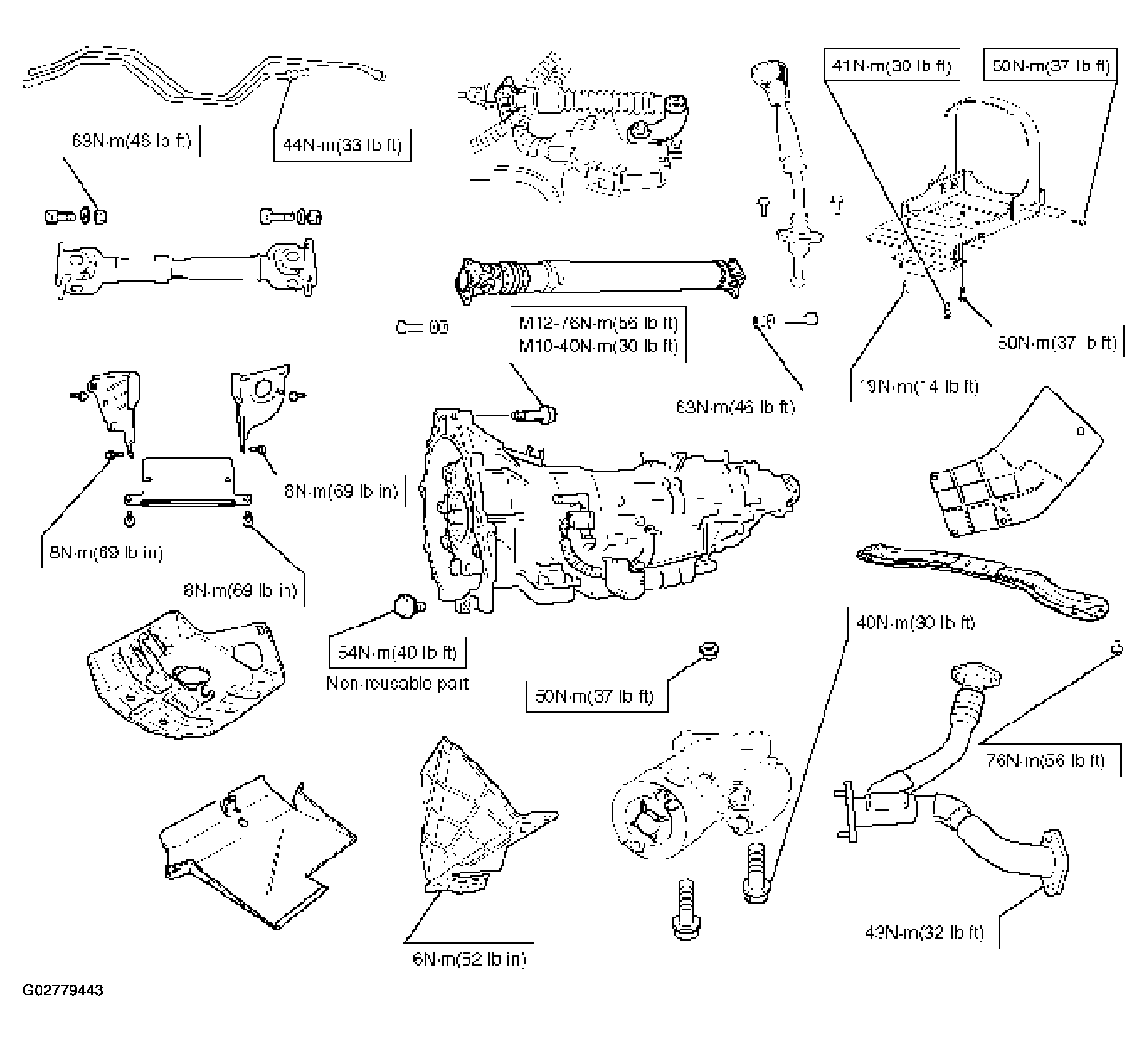

Fig 1: Torque Specifications Table (V6 -- 1 Of 3)

G02779443

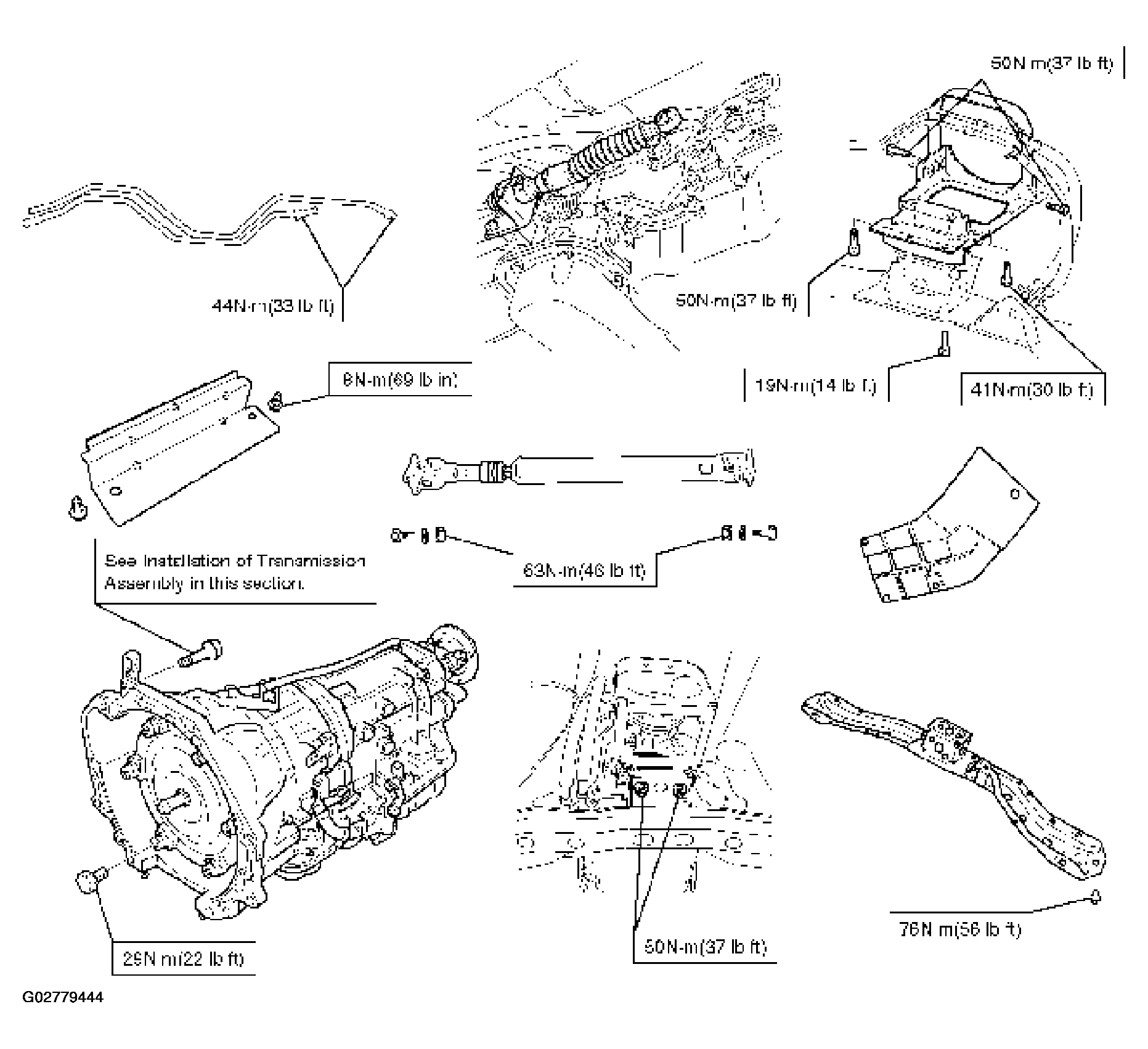

Fig 2: Torque Specifications Table (V6 -- 2 Of 3)

G02779444

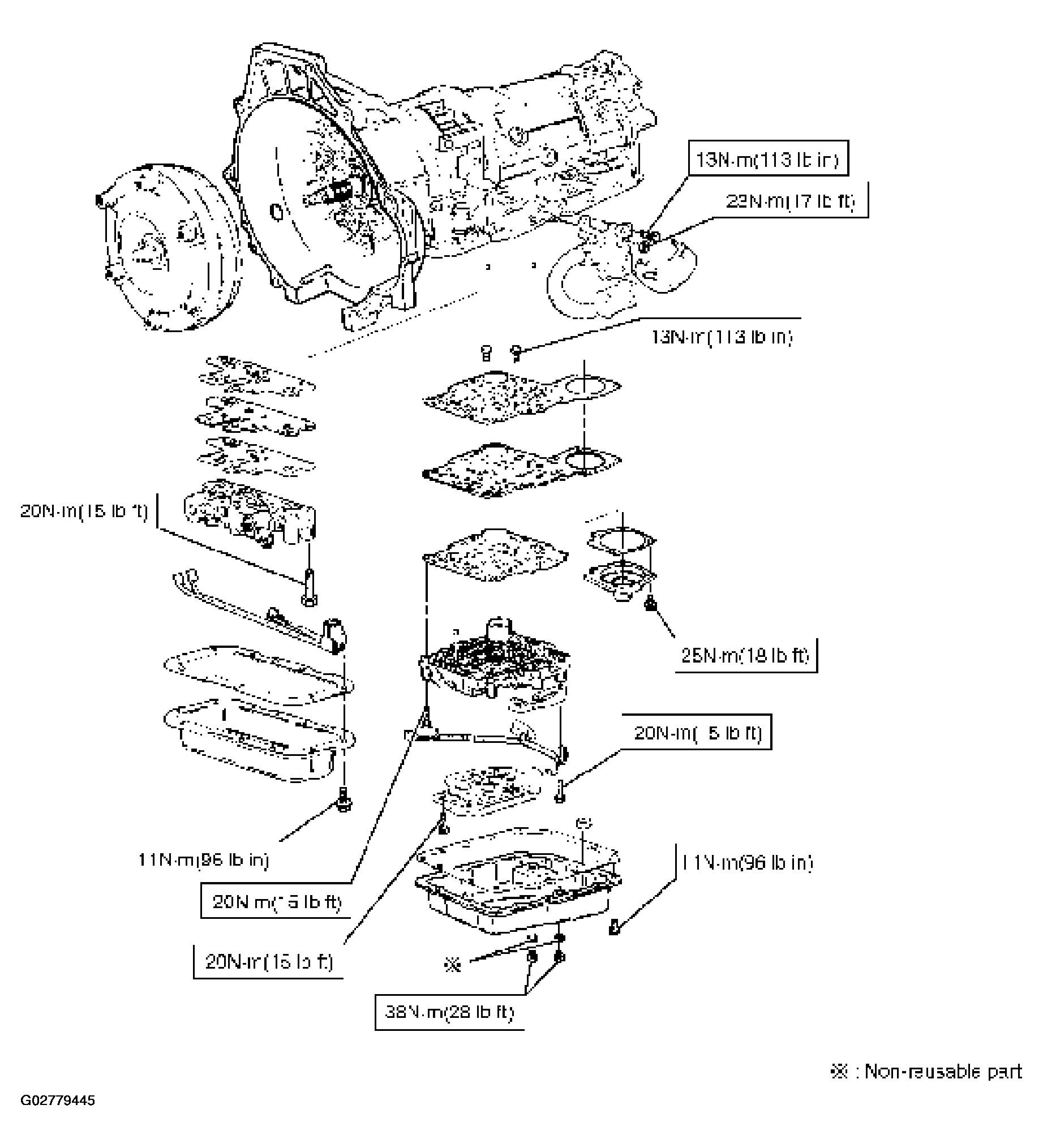

Fig 3: Torque Specifications Table (V6 -- 3 Of 3)

G02779445

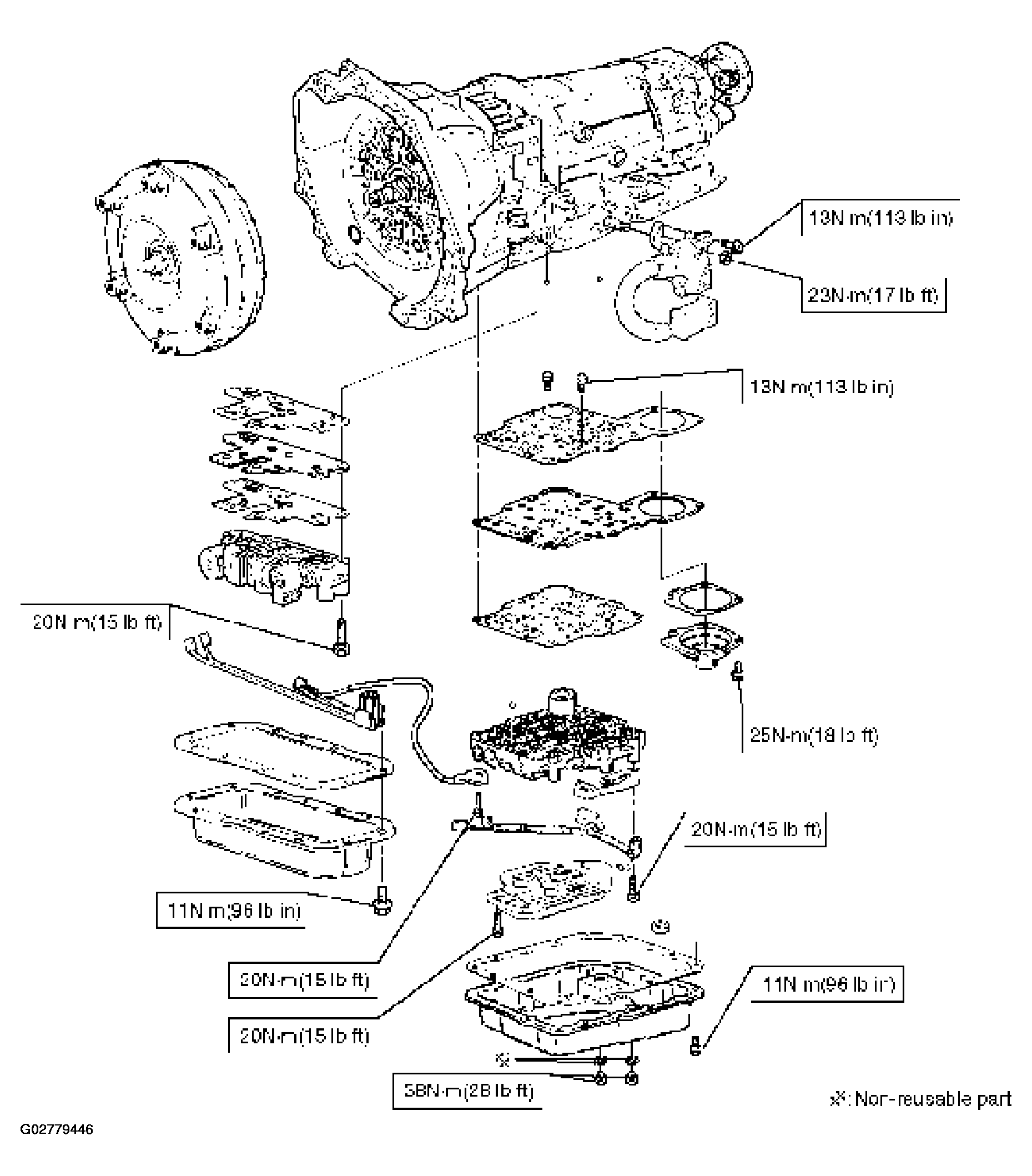

Fig 4: Torque Specifications Table (HEC -- 1 Of 2)

G02779446

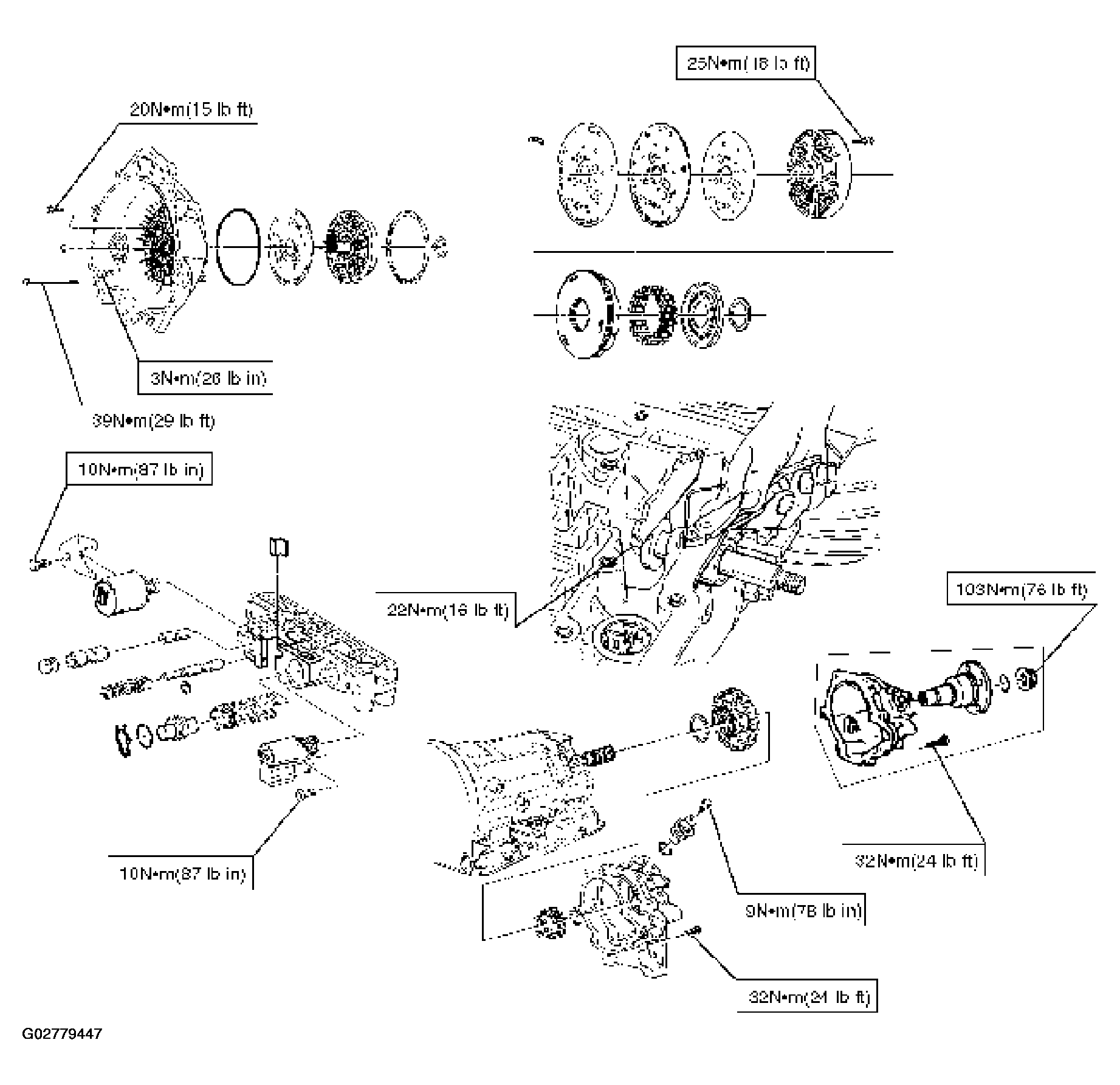

Fig 5: Torque Specifications Table (HEC -- 2 Of 2)

G02779447
