Coil Spring and Associated Parts: Notes

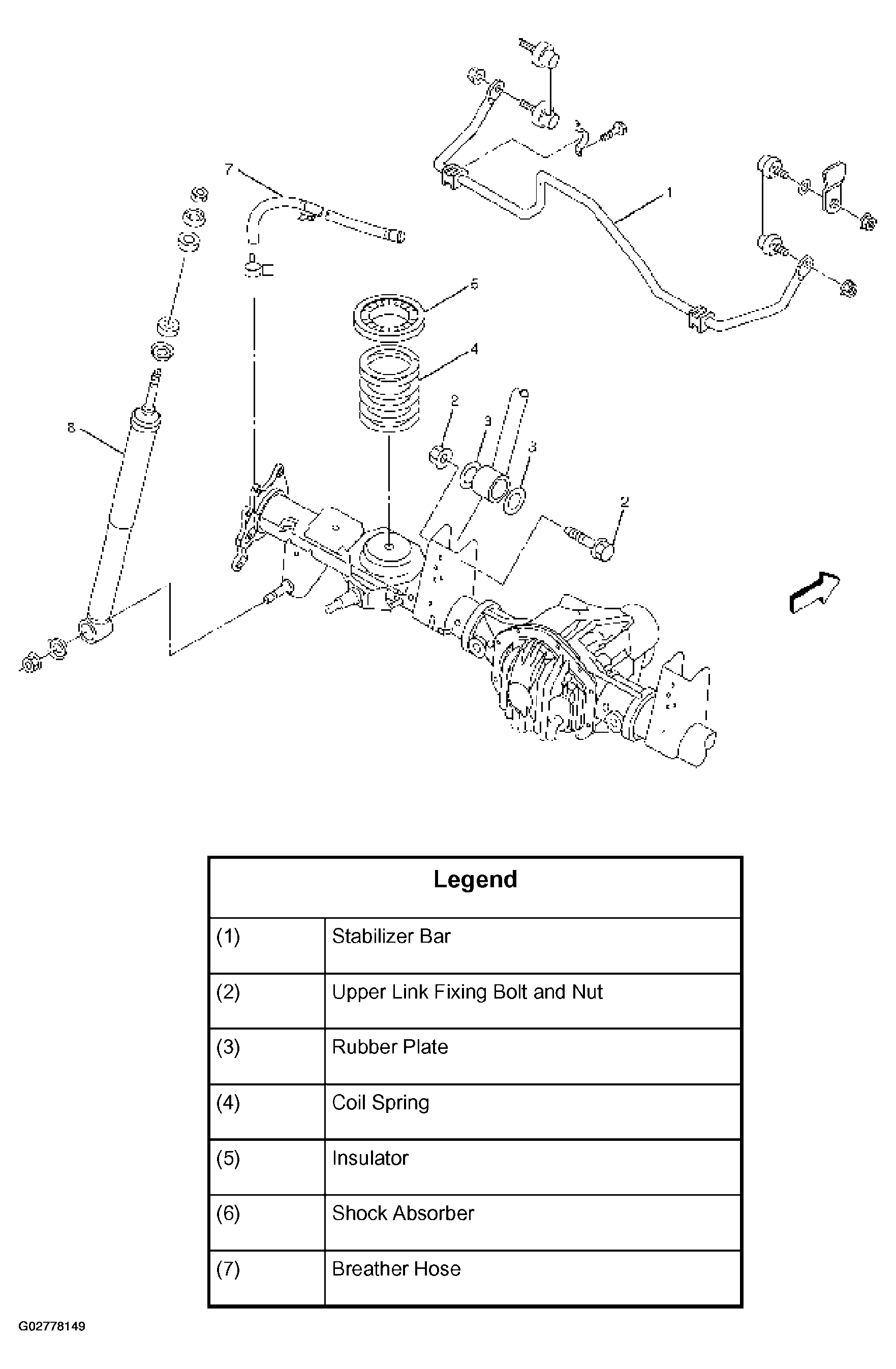

Fig 1: Identifying Coil Spring & Associated Parts

G02778149
