Lock Cylinder: Removal

  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery ground cable, and wait at least 5 minutes.
  4. Disconnect the yellow 2-way SRS connector located under the steering column.
    CAUTION: The wheels of the vehicle must be straight ahead and the steering column in the "LOCK" position before disconnecting the steering wheel. Failure to do so will cause the coil assembly to become uncentered which will cause damage to the coil assembly.
  5. Remove the engine hood opening lever and steering lower cover.
  6. Remove driver knee bolster (reinforcement).
  7. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.

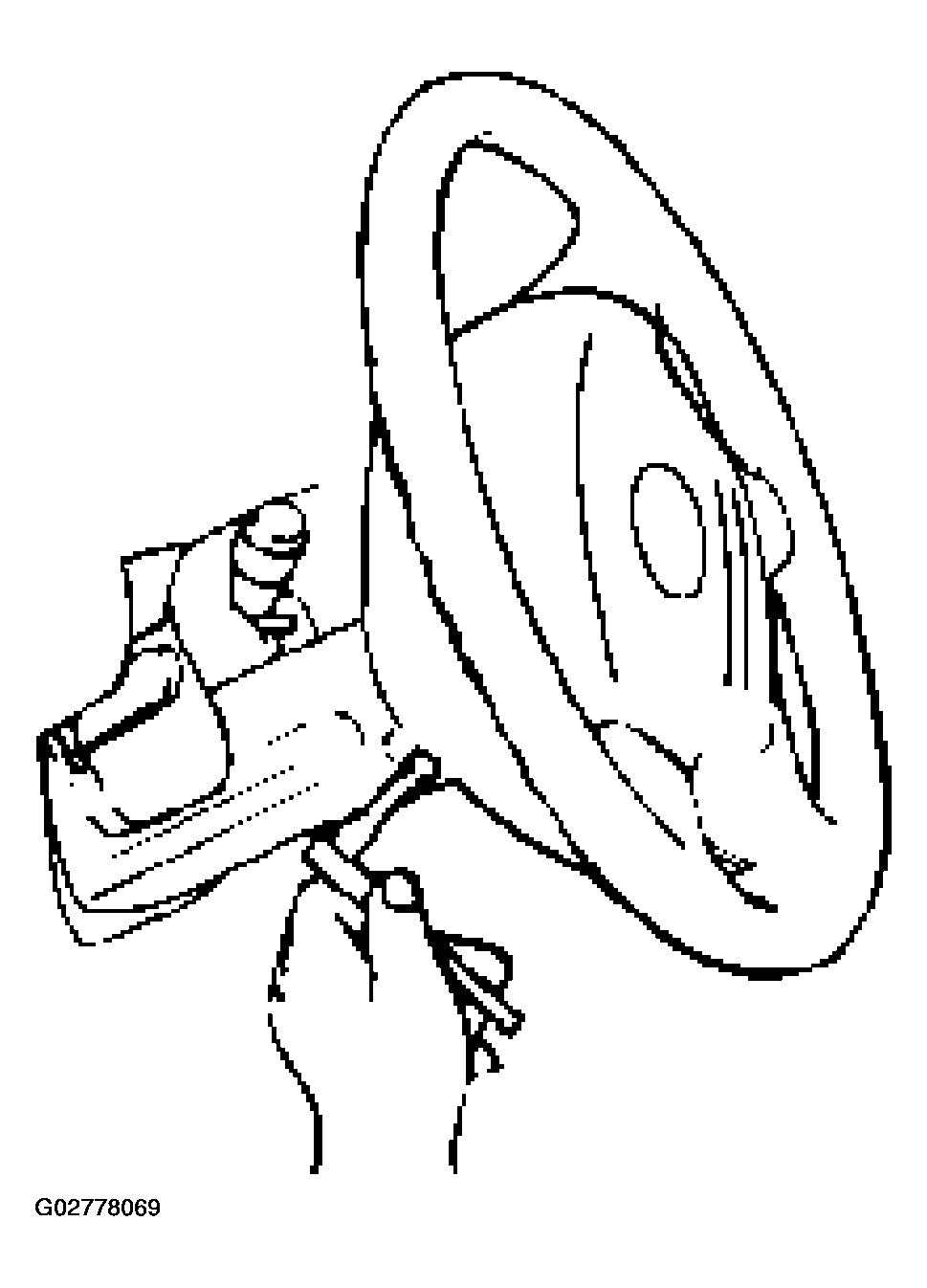

    Fig 1: Removing Driver Knee Bolster (Reinforcement)
    G02778069
  8. Disconnect the yellow 2-way SRS connector and horn lead located behind the inflator module.

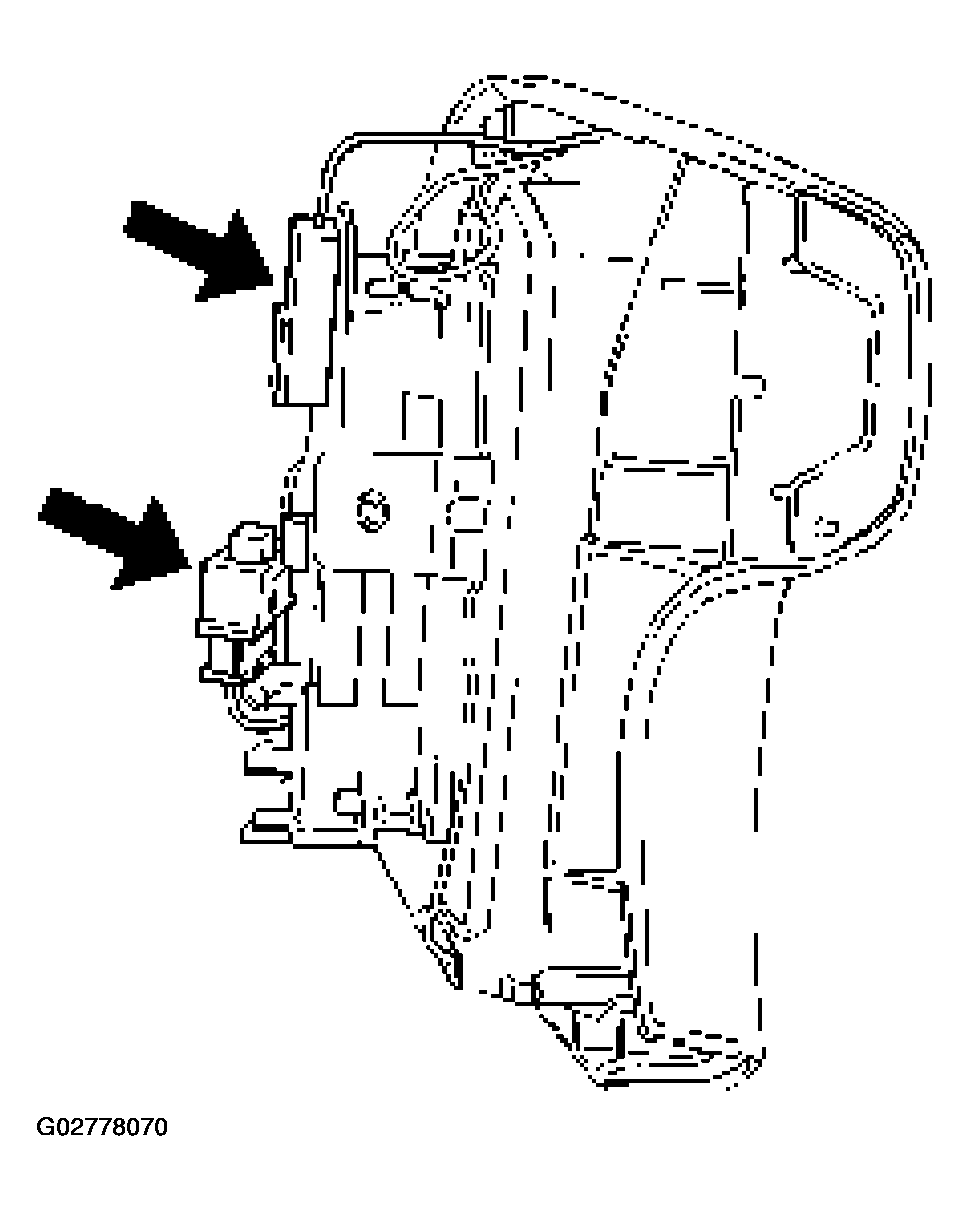

    Fig 2: Disconnecting SRS Connector And Horn Lead
    G02778070
  9. Apply a setting mark (1) across the steering wheel and shaft so parts can be reassembled in their original position.

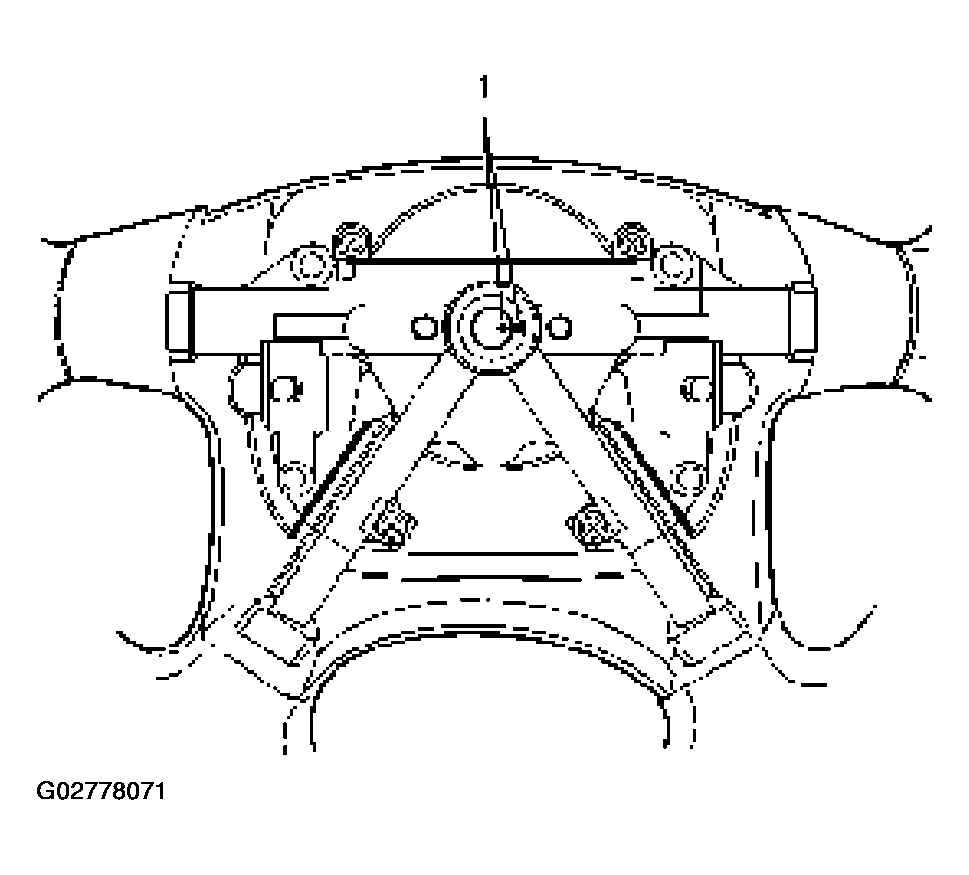

    Fig 3: Identifying Setting Mark
    G02778071
  10. Move the front wheels to the straight ahead position, then use steering wheel remover J-29752 to remove the steering wheel.
    CAUTION: Never apply force to the steering wheel shaft using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.

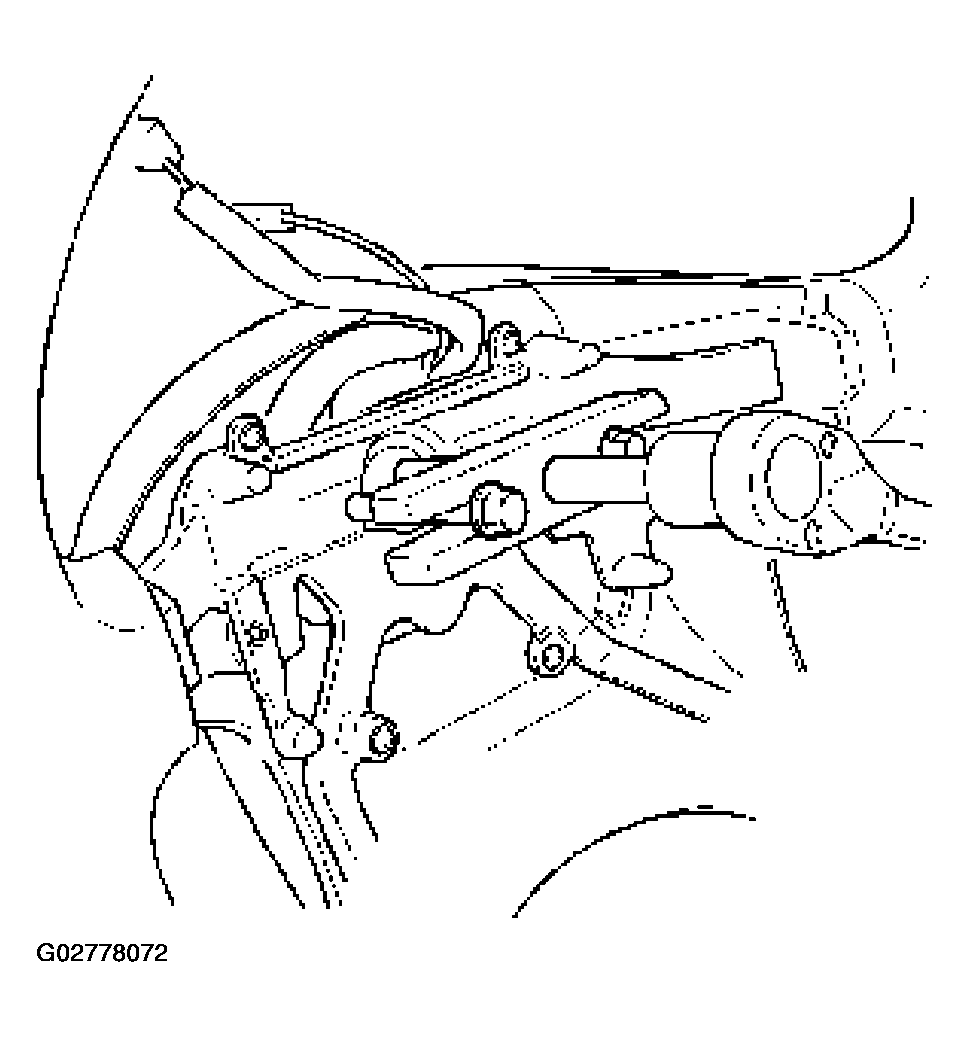

    Fig 4: Removing Steering Wheel
    G02778072
    WARNING: THE INFLATOR MODULE SHOULD ALWAYS BE CARRIED WITH THE TRIM COVER AWAY FROM YOUR BODY AND SHOULD ALWAYS BE LAID ON A FLAT SURFACE WITH THE URETHANE SIDE UP. THIS IS NECESSARY BECAUSE A FREE SPACE IS PROVIDED TO ALLOW THE AIR CUSHION TO EXPAND IN THE UNLIKELY EVENT OF ACCIDENTAL DEPLOYMENT. OTHERWISE, PERSONAL INJURY MAY RESULT.
    Fig 5: Removing Steering Column Cover
    G02778073
  11. Remove steering column cover.
  12. Disconnect the wiring harness connectors located under the steering column.
  13. Remove the combination switch assembly with SRS coil.

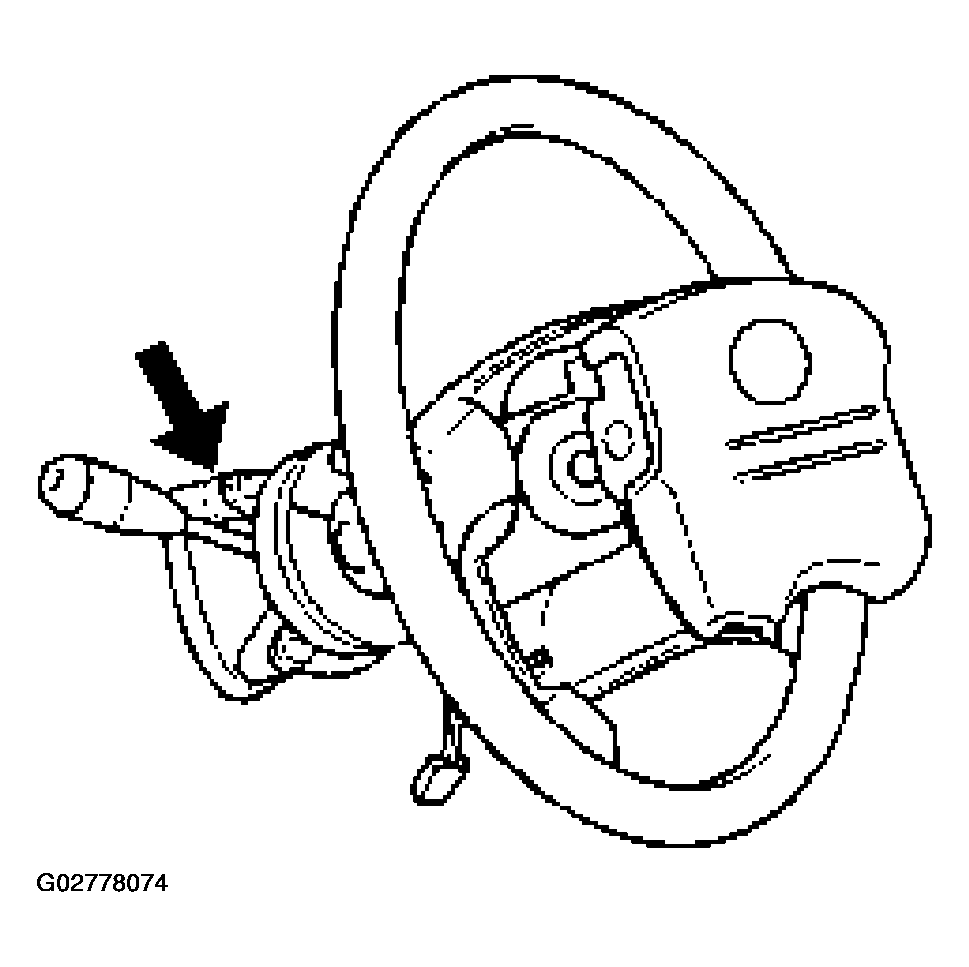

    Fig 6: Removing Combination Switch Assembly With SRS Coil
    G02778074
  14. Remove snap ring.
  15. Remove cushion rubber.
  16. Remove shift lock cable (for A/T).
  17. Disconnect the starter switch harness connector located under the steering column then remove lock cylinder assembly.
