Transfer Gear Assembly and Associated Parts: Notes

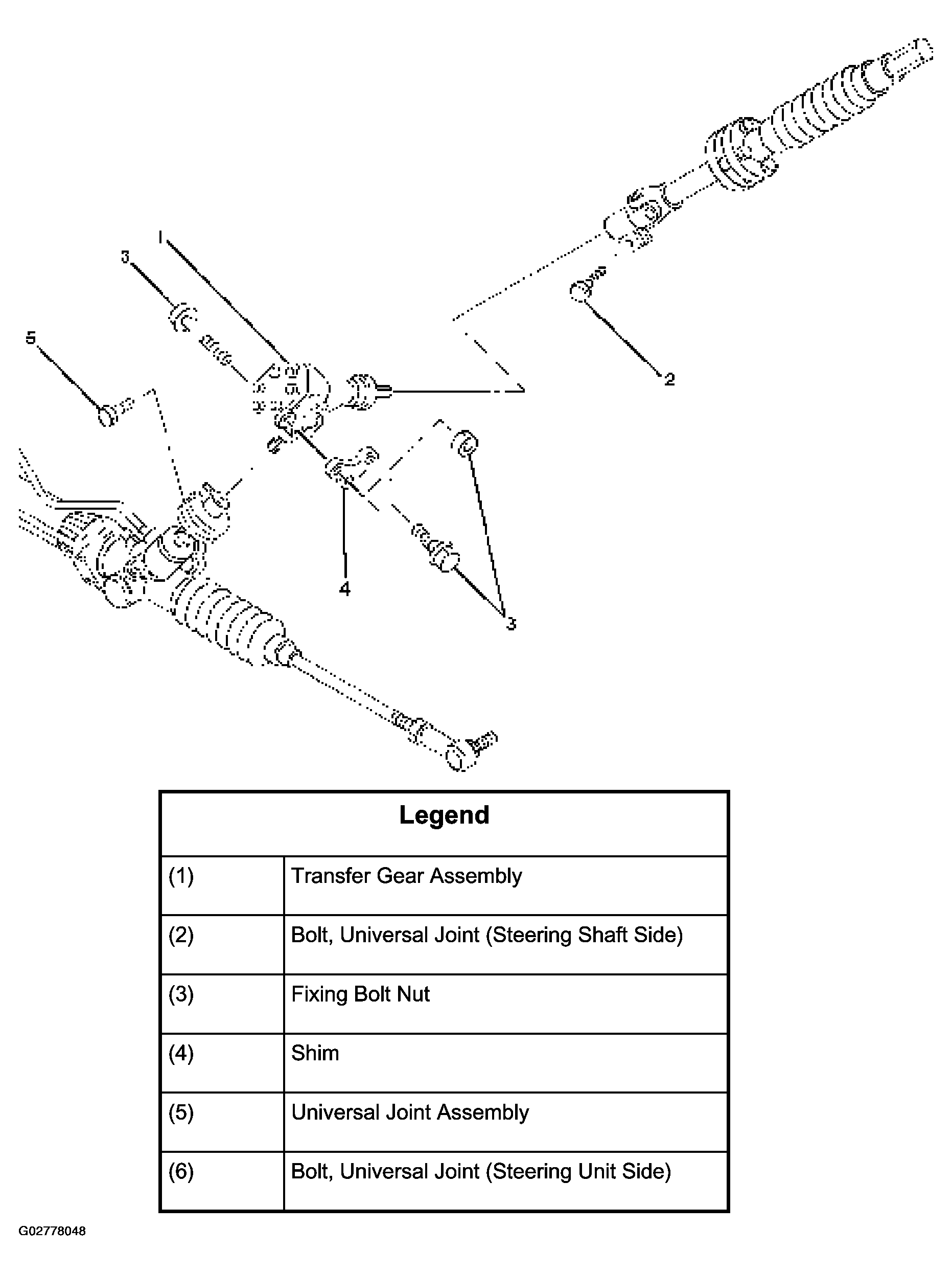

Fig 1: Exploded View Of Transfer Gear Assembly

G02778048
