Power Steering Unit and Associated Parts
Power Steering Unit and Associated Parts

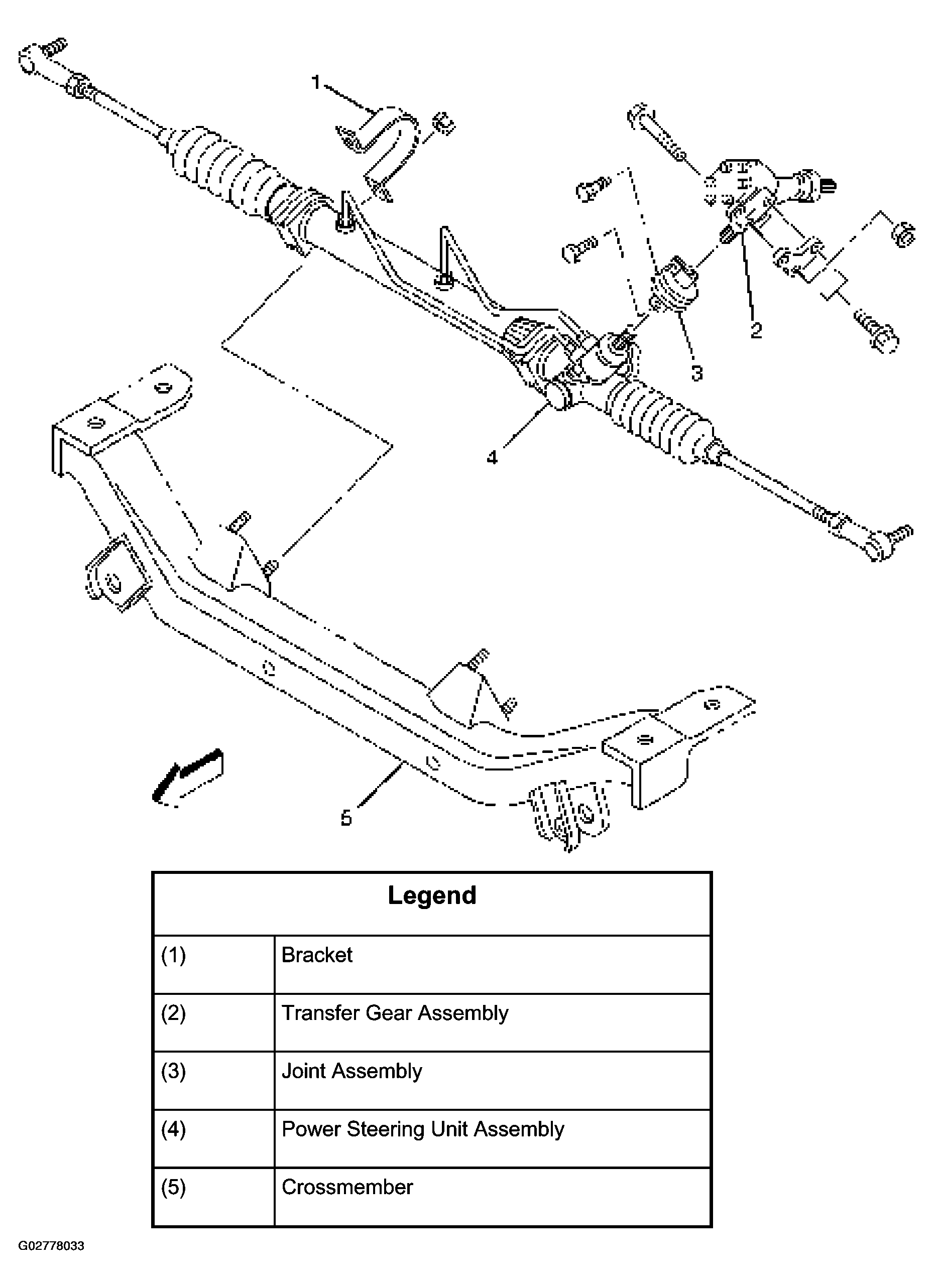

Fig 1: Exploded View Of Power Steering Unit
