Camber Adjustment

The camber angle can be adjusted by means of the camber shims (2) installed in position between the chassis frame (1) and fulcrum pins

CAUTION: Left and right side must be equal within 30'.

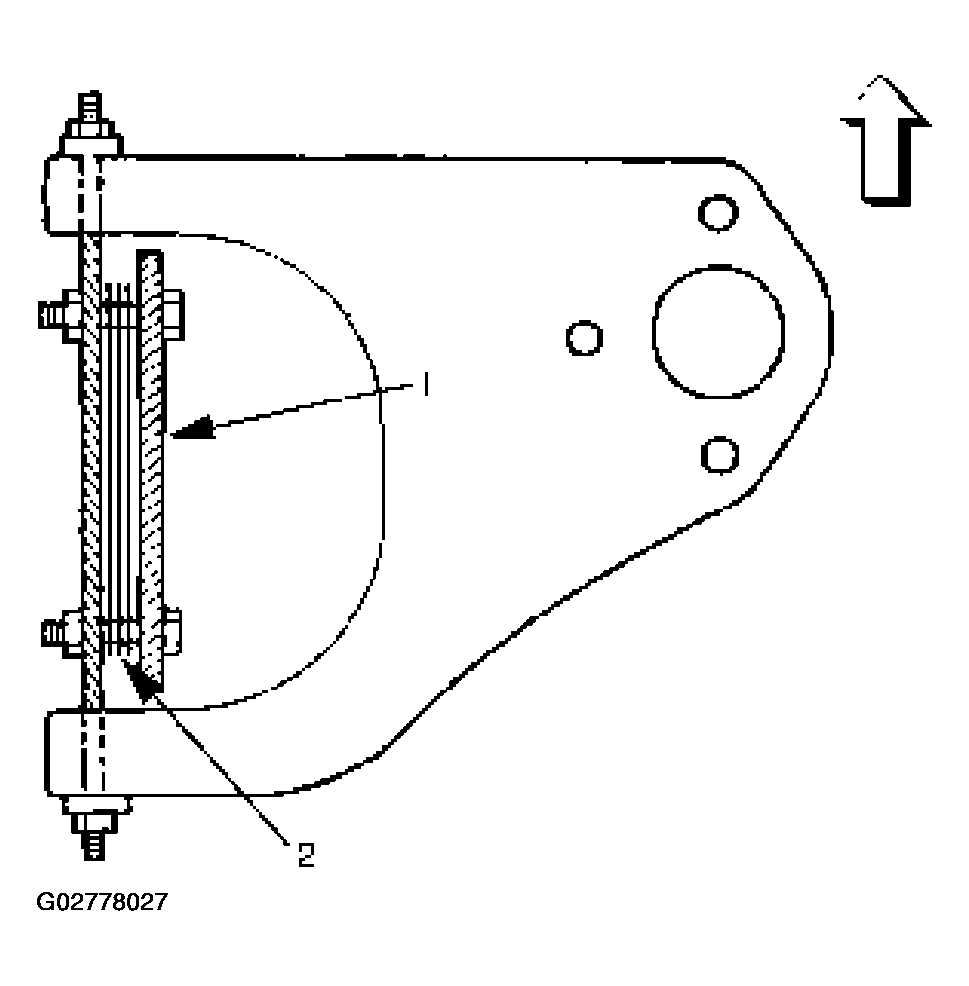

Fig 1: Adjusting Camber

Fig 2: Identifying Caster Shim And Caster Frame

NOTE: Overall thickness of caster shim and camber shim should be 10.8 mm (0.425 in) or less.

Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N.m (112 lb ft)

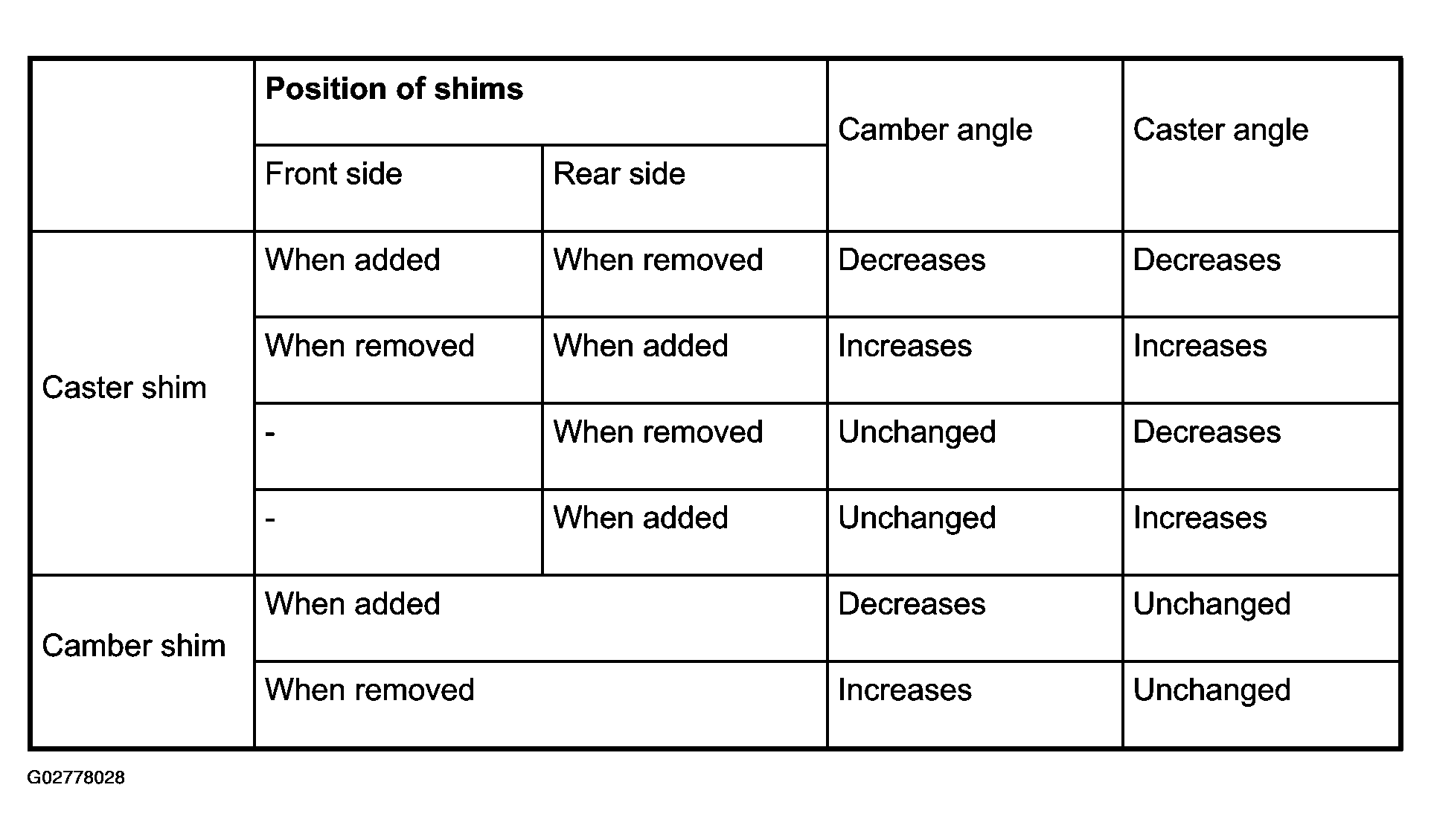

Fig 3: Shim Position Table
