Mid Unit Display Screen (IB01-13-S001)

WARNING: This page is about the Axiom Base, 4WD, which is a different variant/trim than selected.

Publication date: 1970-01-01
Reference number: IB01-13-S001

AXIOM MID UNIT DISPLAY SCREEN

TECHNICAL SERVICE BULLETIN

Reference Number(s): IB01-13-S001, Date of Issue: MARCH, 2001

ISUZU:	All 2002 Axiom
AFFECTED VEHICLES:	All 2002 Axiom models.

Service Information

All new 2002 Axioms will have a removable sticker on the MID Unit Display Unit that clearly states the following:

This sticker to be removed by the customer only
At low ambient temperature the MID screen may appear dim
As cabin temperature rises the MID screen will return to full illumination

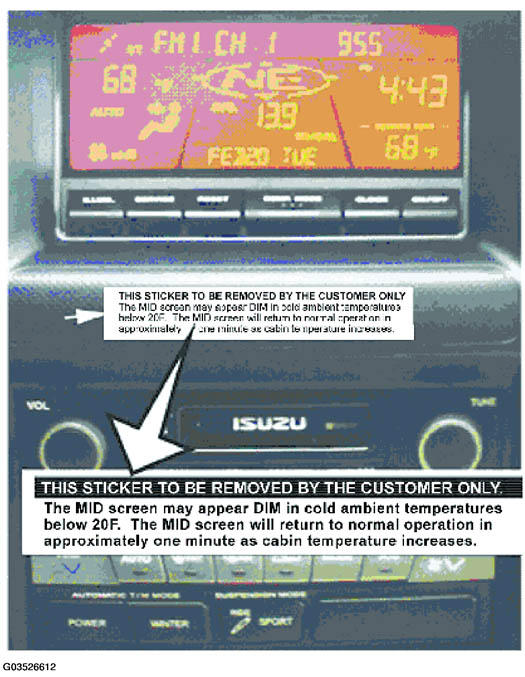

Fig 1: Identifying Mid Label

This dim condition at low ambient temperature is a characteristic for this type of liquid crystal display. No repairs should be attempted. This sticker should not be removed during In-Depth delivery or PDI. The customer should be made aware that this is a normal function of the MID display screen.
