Driver Seat Side: Removal

  1. Disconnect the battery ground cable.
  2. Remove the switch (1).
    • Pull out the switch by pushing the spring with the tip of a screwdriver.
    • Disconnect the connector.

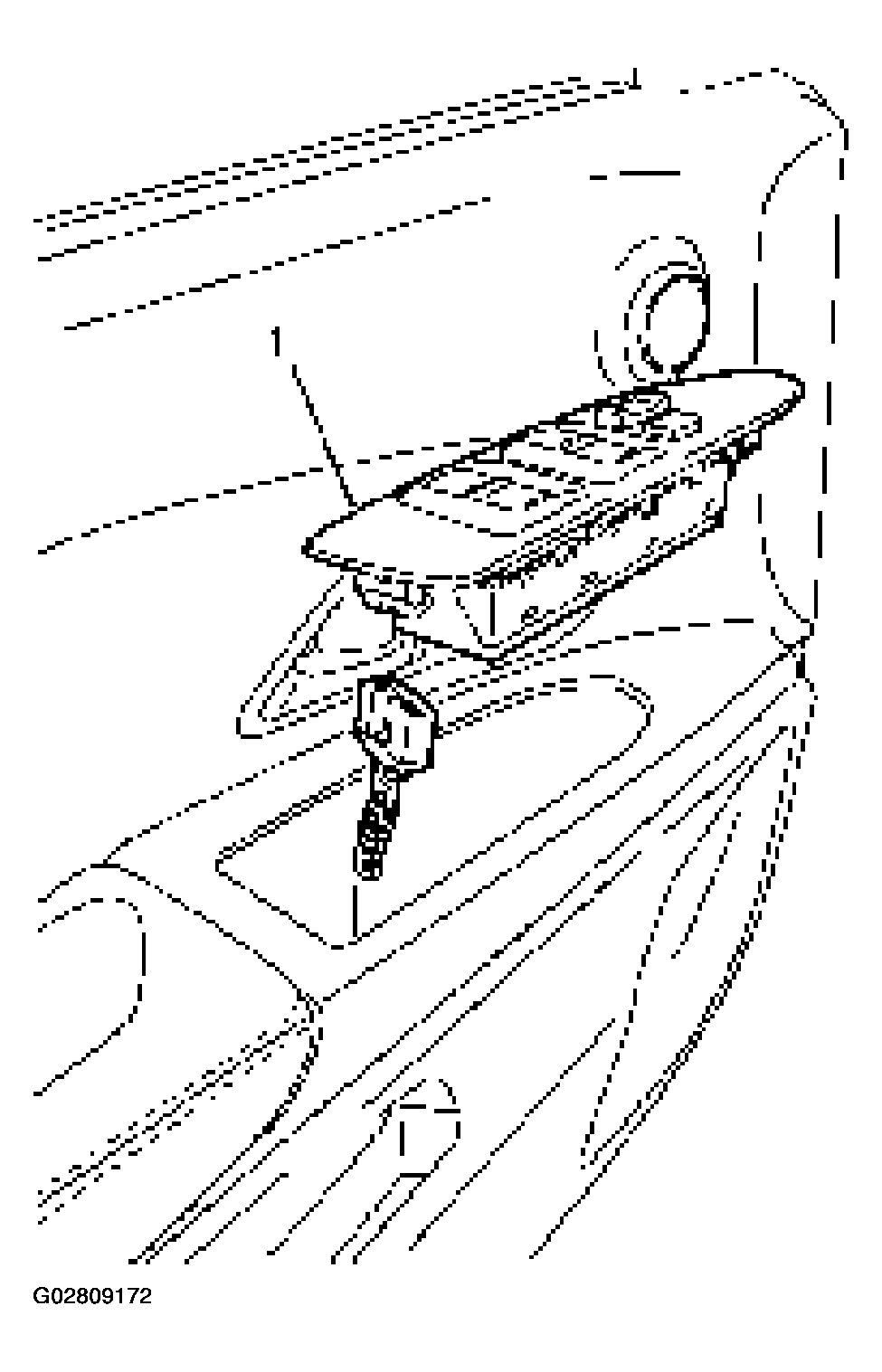

      Fig 1: Removing Driver's Door Power Window Switch
      G02809172Courtesy of ISUZU MOTOR CO.
