Interior Mirror Assembly: Removal

  1. Disconnect the battery ground cable.
  2. Remove the covers (1).
  3. Remove the interior mirror assembly (4).
    • Pull the interior mirror up with the stay and remove the interior mirror from the base (3).
    • Disconnect the connector (2).

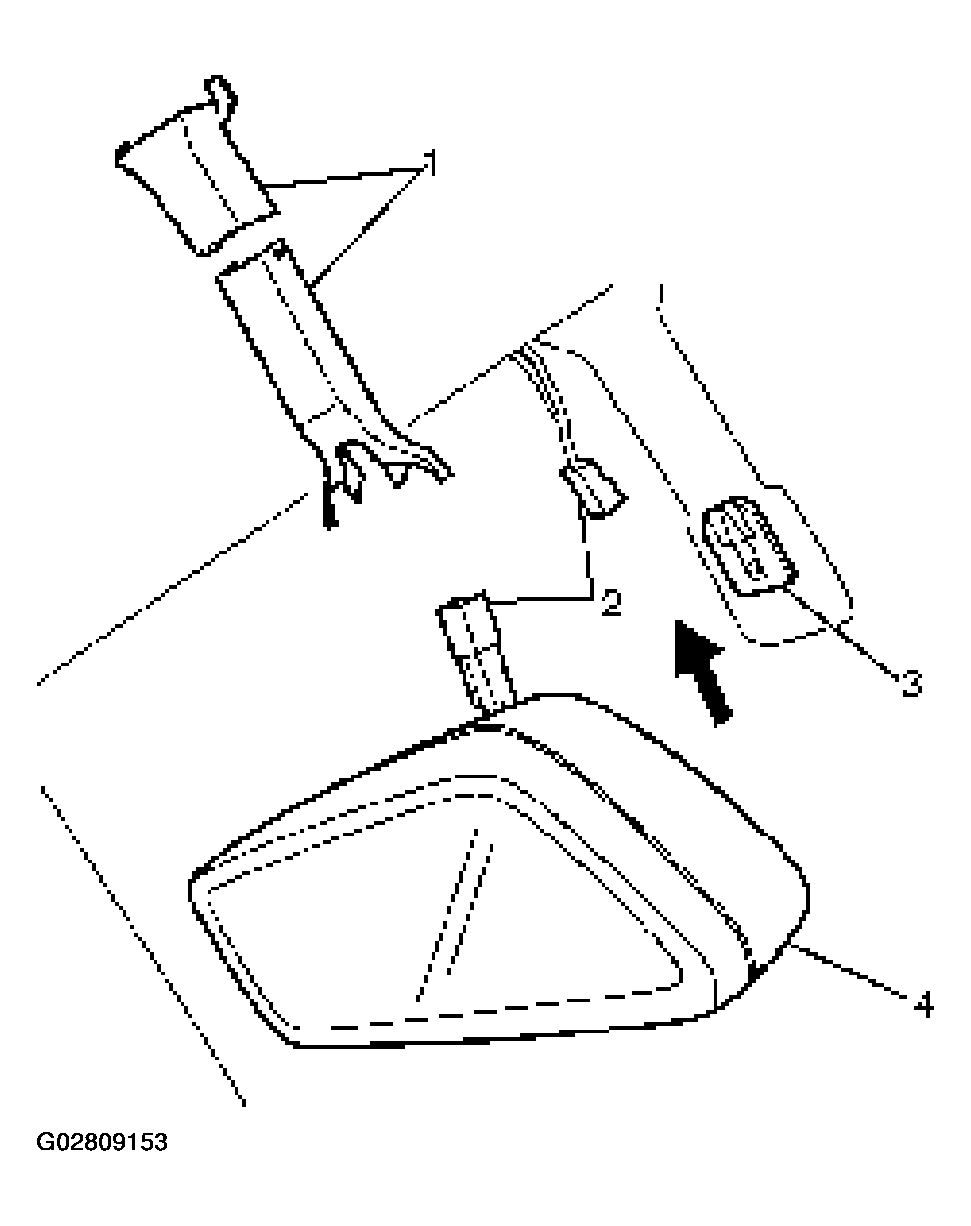

      Fig 1: Removing Interior Mirror Assembly
      G02809153Courtesy of ISUZU MOTOR CO.
