Isuzu
>>
2002
>>
Axiom XS, 4WD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
EHCU Connector Pin-Out Checks
>>
Circuit Diagram
Circuit Diagram

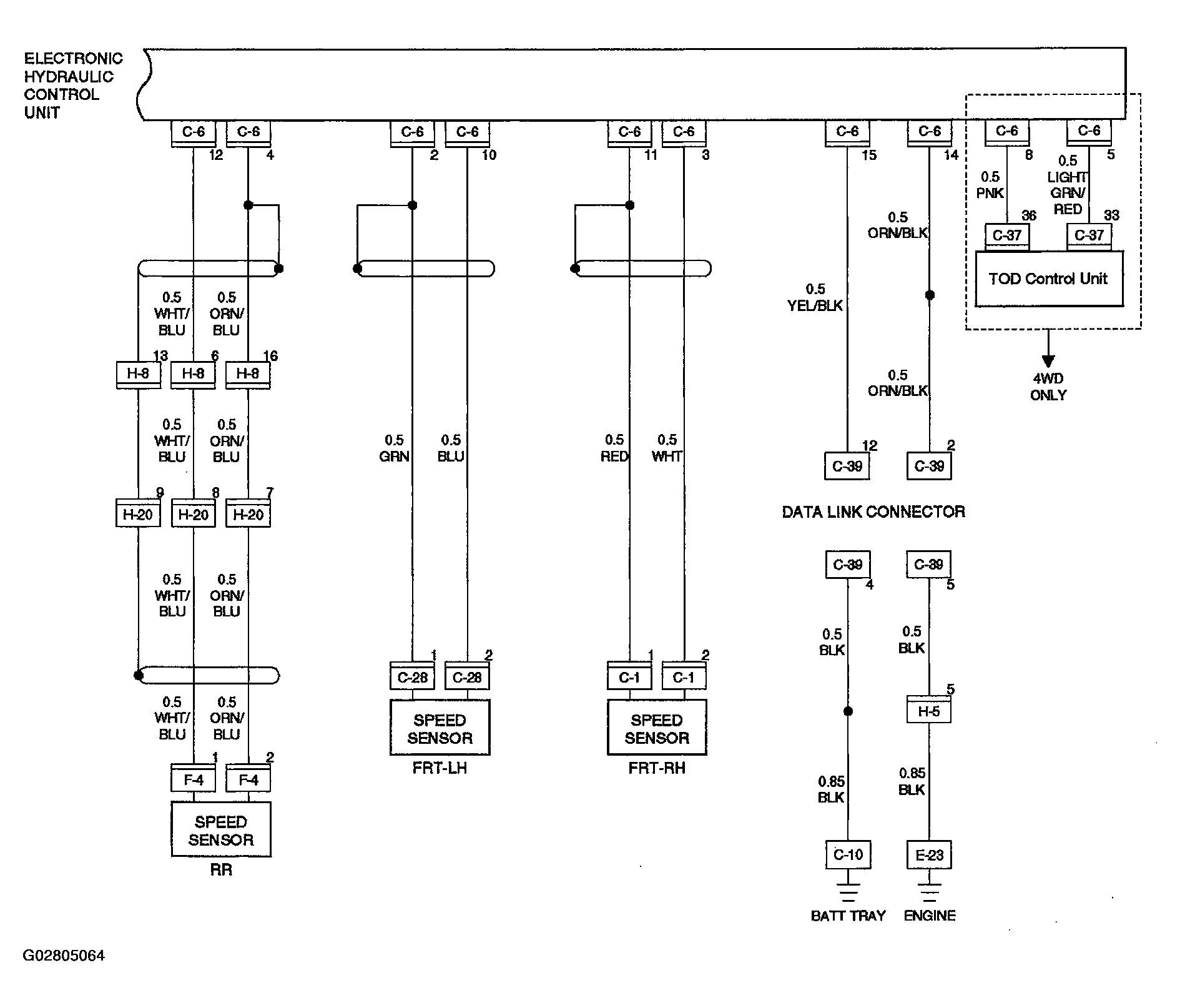

Fig 1: Circuit Diagram (1 Of 3)
Courtesy of ISUZU MOTOR CO.

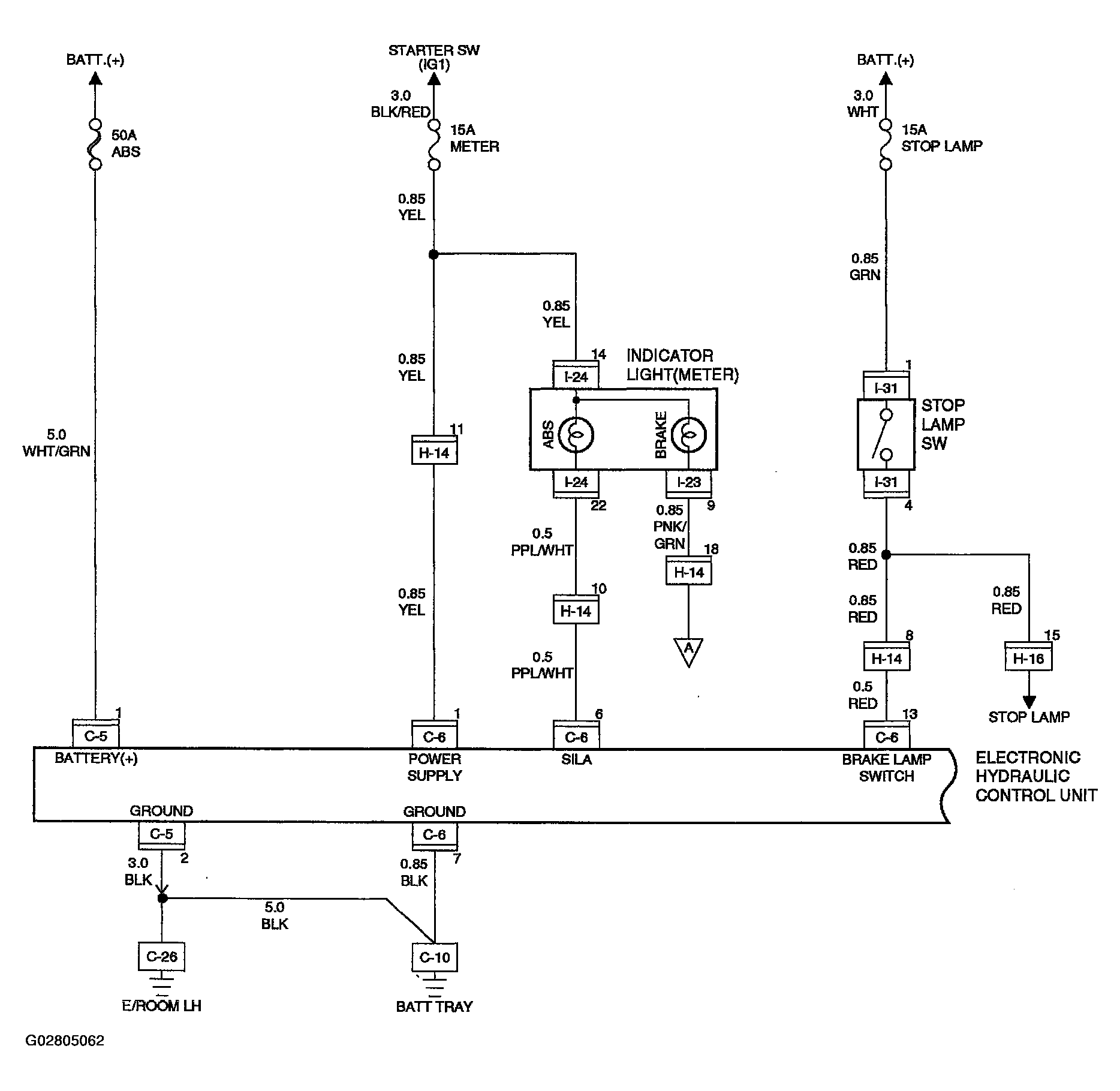

Fig 2: Circuit Diagram (2 Of 3)
Courtesy of ISUZU MOTOR CO.

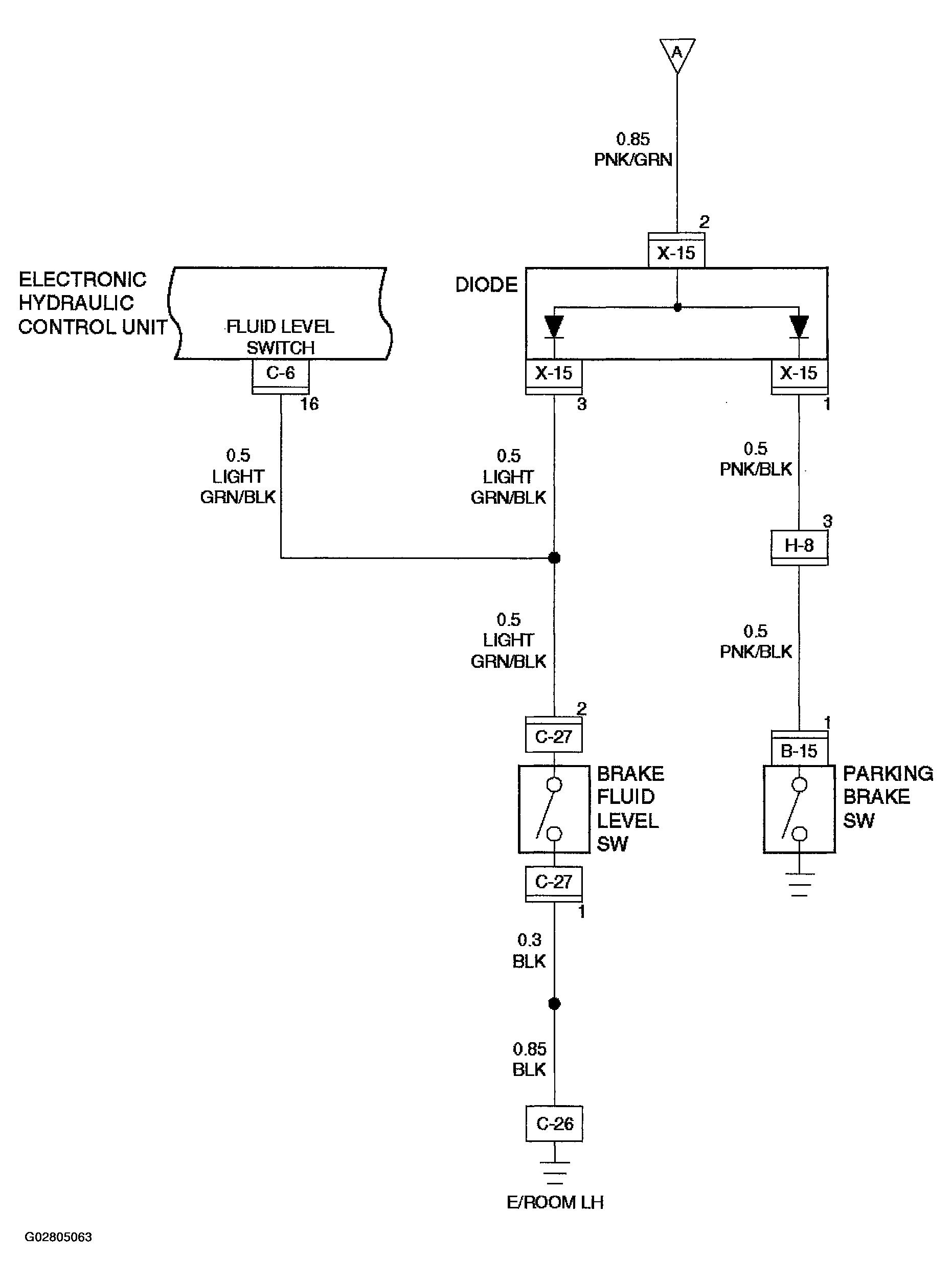

Fig 3: Circuit Diagram (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
