Home >> Isuzu >> 2002 >> Axiom Base, RWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Coil Spring >> Coil Spring And Associated Parts >> Notes

Coil Spring And Associated Parts: Notes

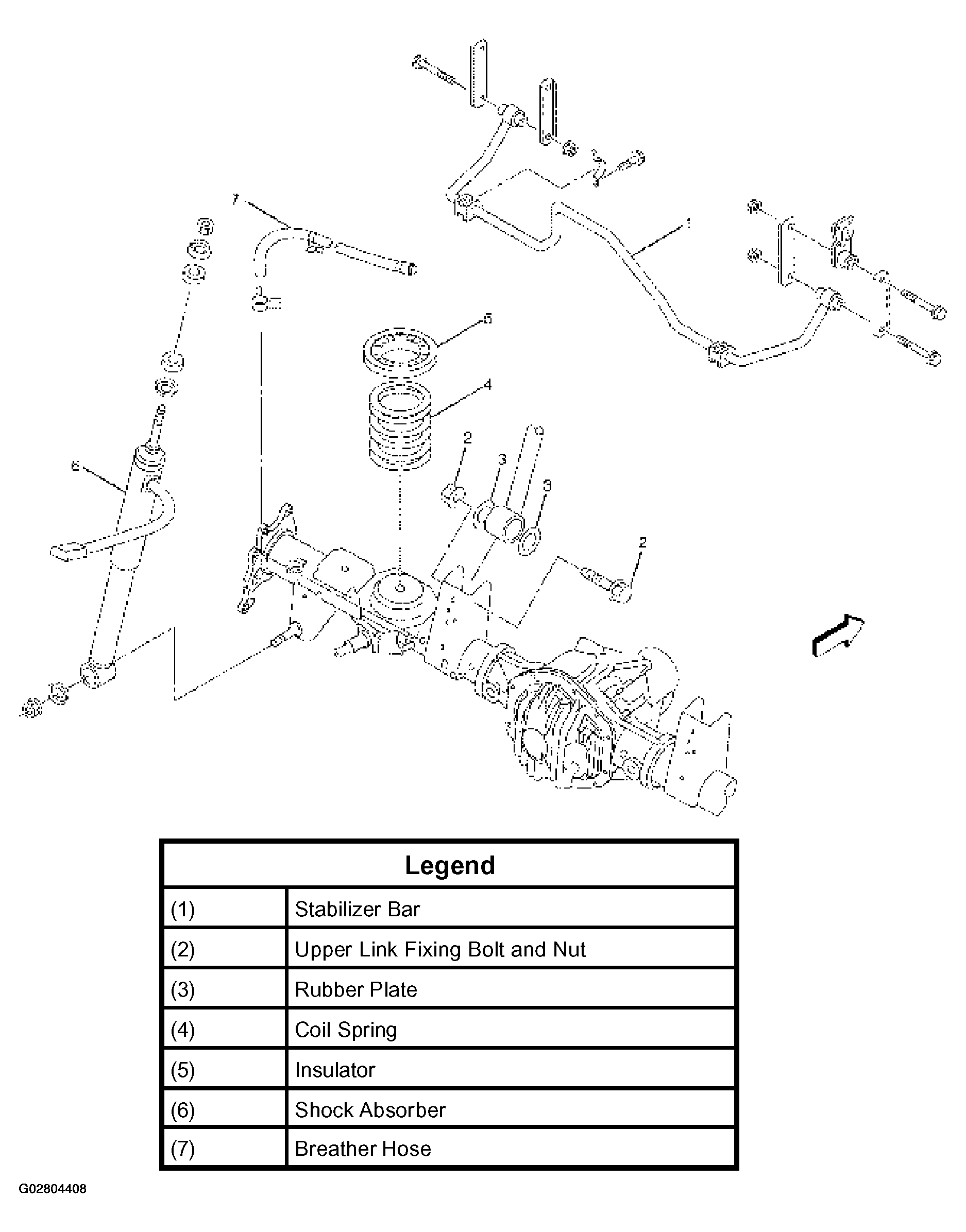

Fig 1: Identifying Coil Spring And Associated Parts

G02804408

Courtesy of ISUZU MOTOR CO.
