Steering Column and Associated Parts

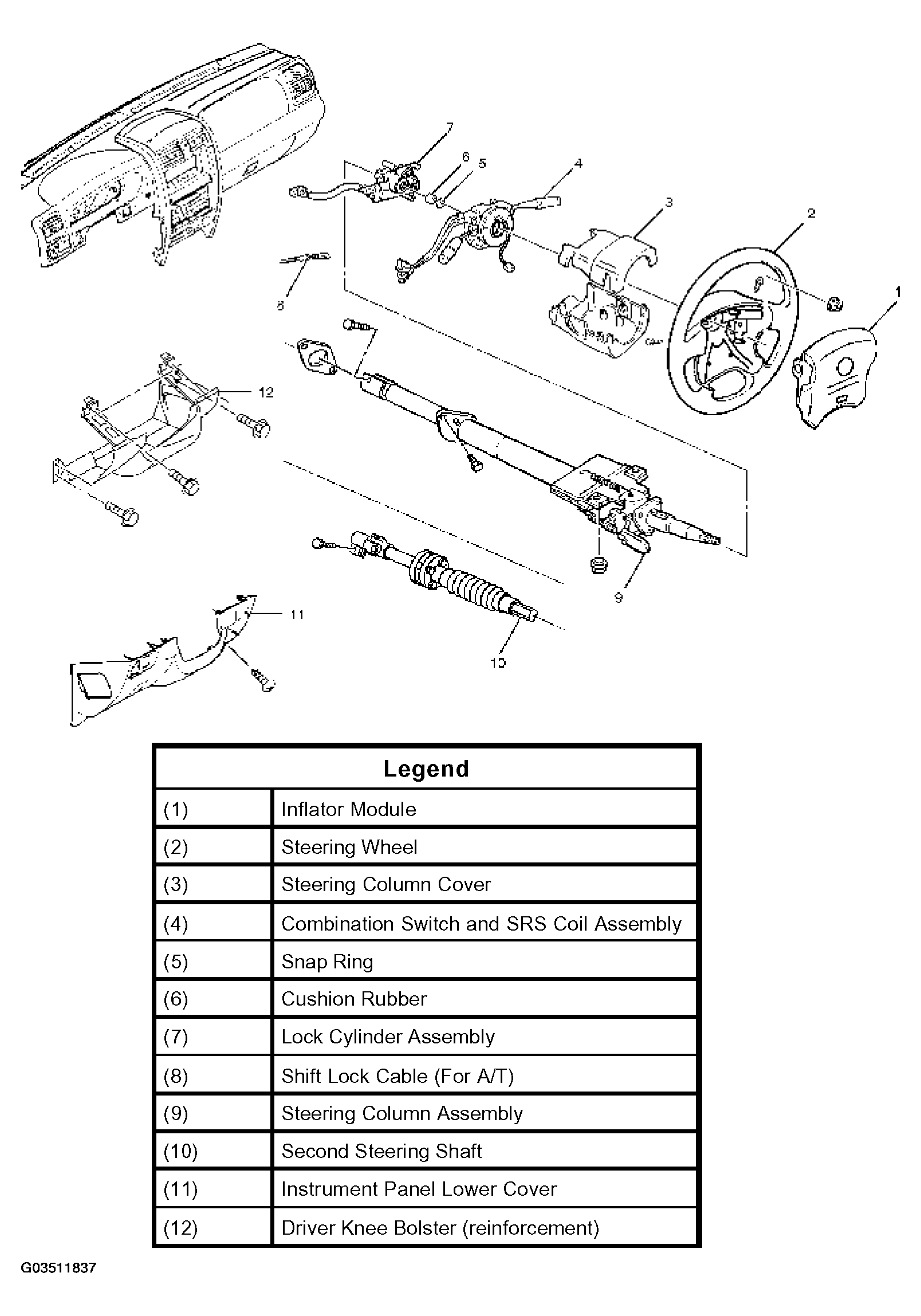

Fig 1: Identifying Steering Column & Associated Parts

G03511837

Courtesy of ISUZU MOTOR CO.
