Fuel Pump And Associated Parts: Removal

CAUTION: When repair to the fuel system has been completed, start engine and check the fuel system for loose connection or leakage. For the fuel system diagnosis, refer to BASIC DIAGNOSTIC PROCEDURES .
  1. Remove fuel tank assembly (8). Refer to FUEL TANK .
  2. Remove Fuel Tube/Quick Connector (2).
    NOTE: Refer to FUEL TUBE / QUICK - CONNECTOR FITTINGS  when performing any repairs.
  3. Remove the retainer (7) with tool J-39763 and remove the fuel pump and sender (FPS) assembly (4).

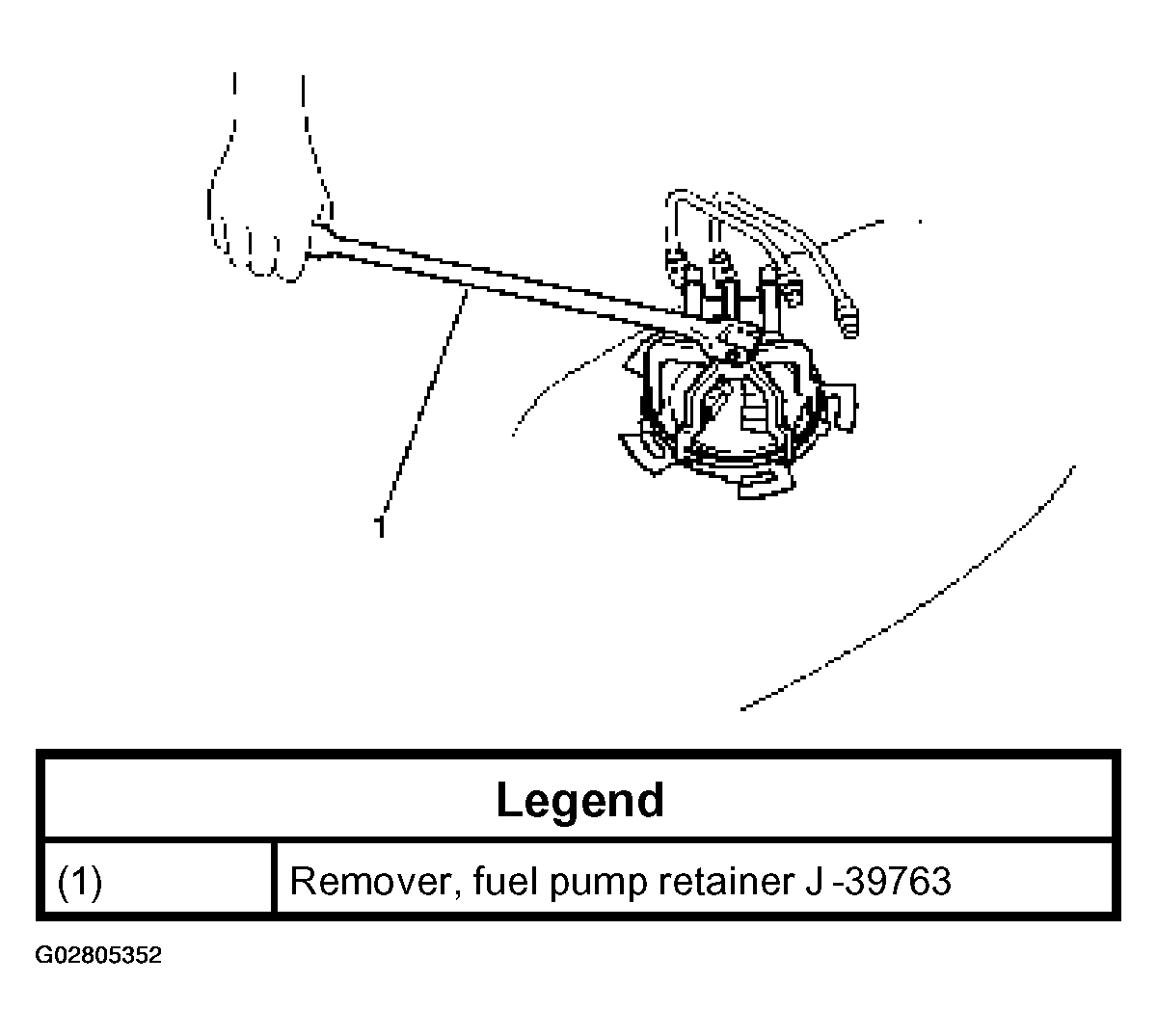

Fig 1: Removing Fuel Pump And Sender
G02805352Courtesy of ISUZU MOTOR CO.
NOTE: After removing pump assembly (4), cover fuel tank to prevent any dust entering.
