Cigarette Lighter: General Description: Removal

  1. Disconnect the battery ground cable.
  2. Remove the center cluster assembly (1).
  3. Remove the cigarette lighter assembly (2).
    • Disconnect the connectors.
    • Remove the socket (3) and nut (4).

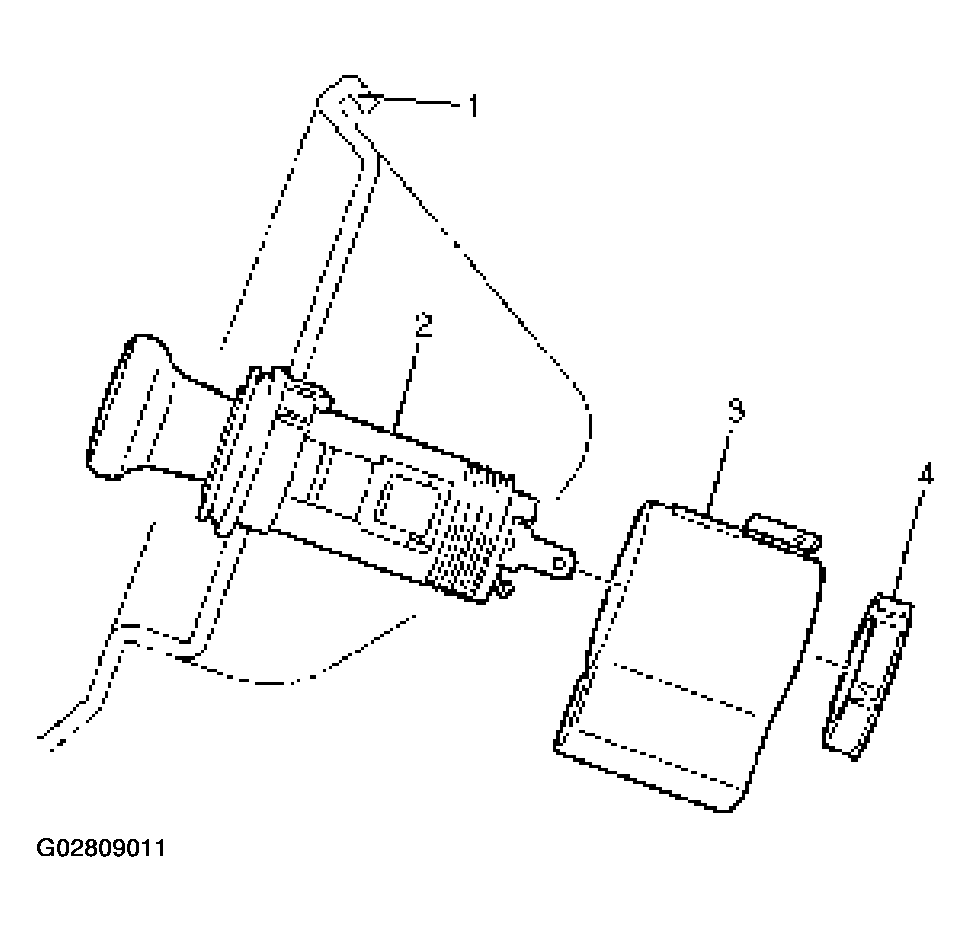

      Fig 1: Removing Cigarette Lighter Assembly
      G02809011Courtesy of ISUZU MOTOR CO.
