Torque Specifications

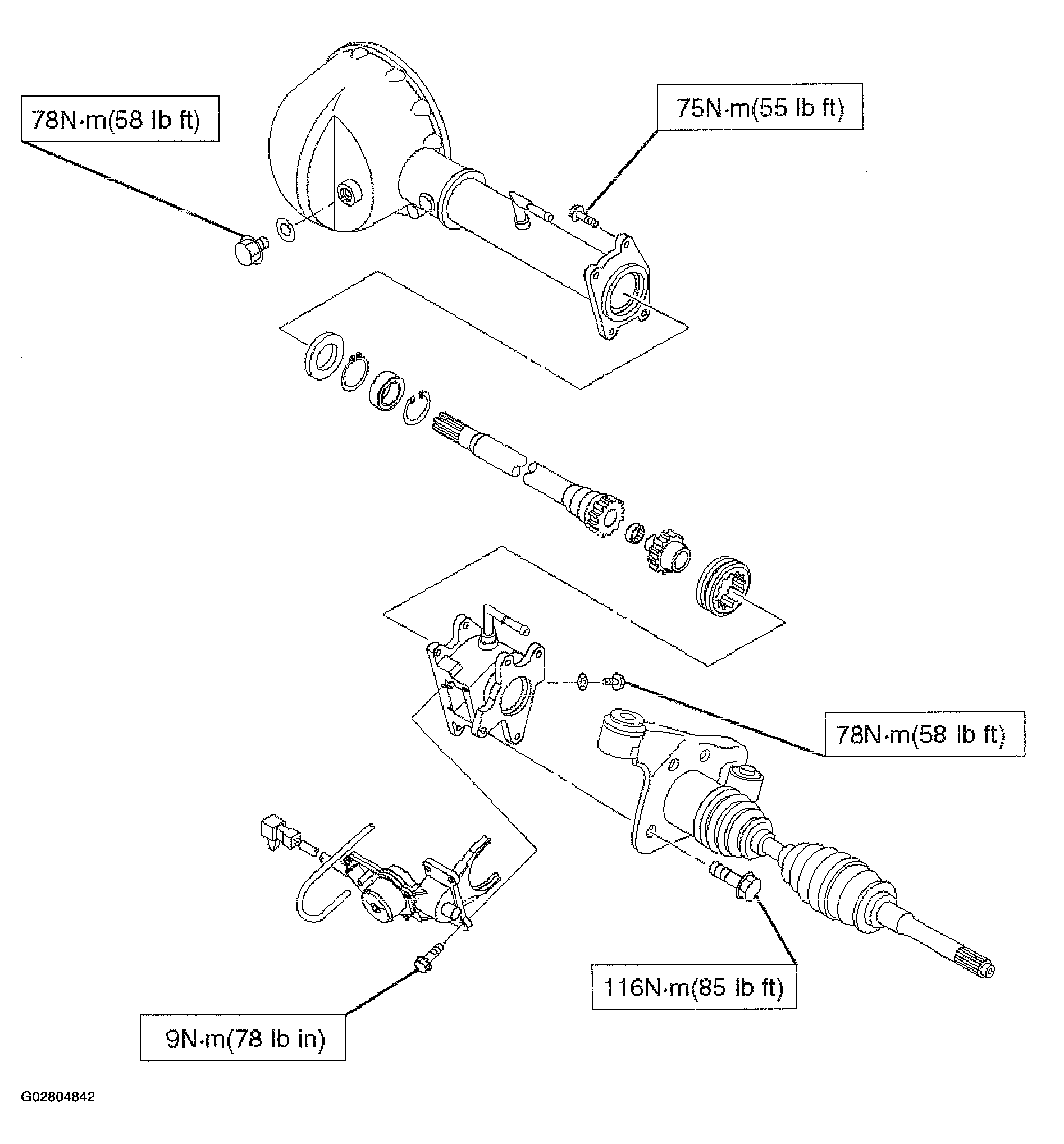

Fig 1: Drive Shaft Assembly Torque Specifications Table (1 Of 2)
G02804842Courtesy of ISUZU MOTOR CO.

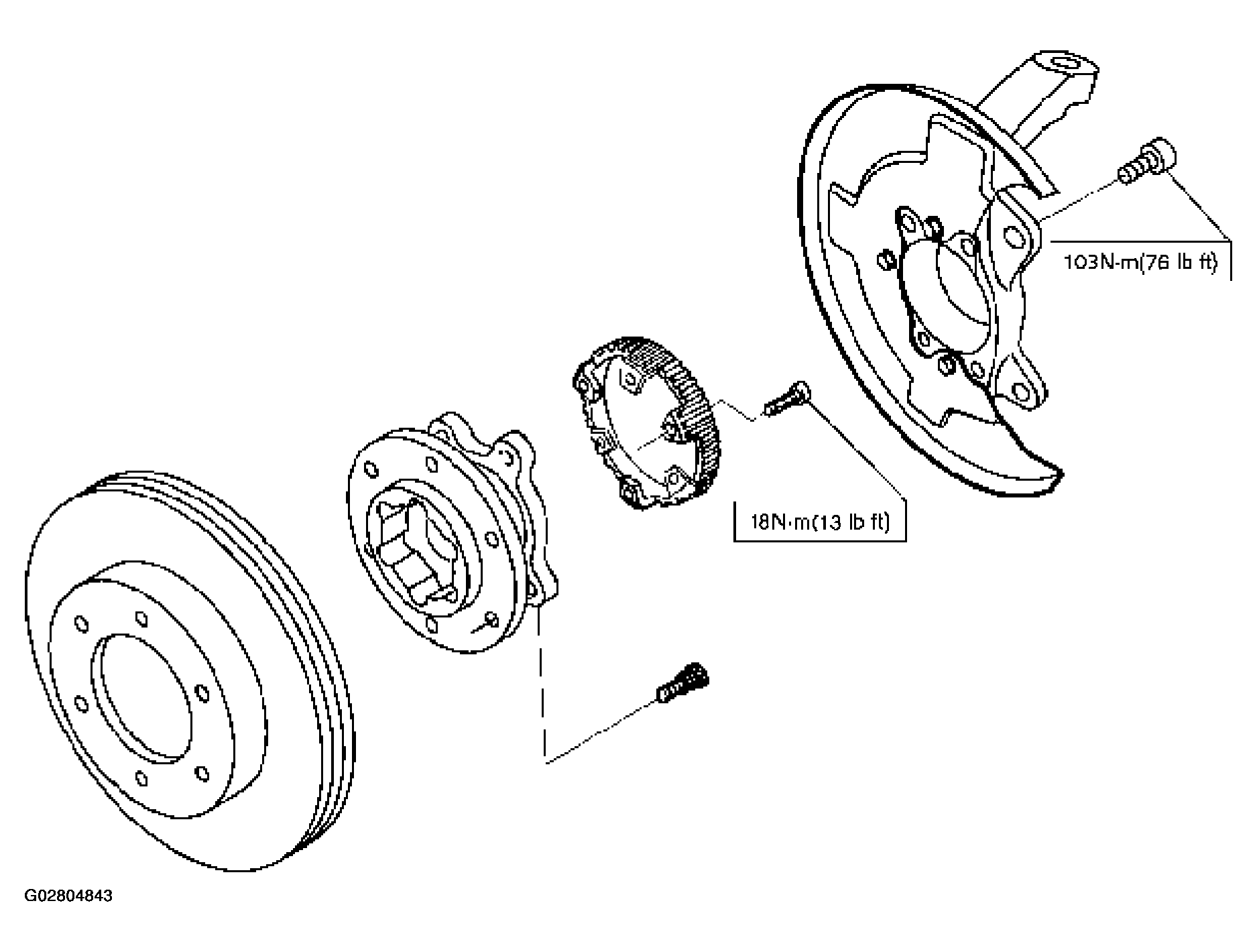

Fig 2: Drive Shaft Assembly Torque Specifications Table (2 Of 2)
G02804843Courtesy of ISUZU MOTOR CO.
