Disassembled View: Reassembly

Install wheel pin.

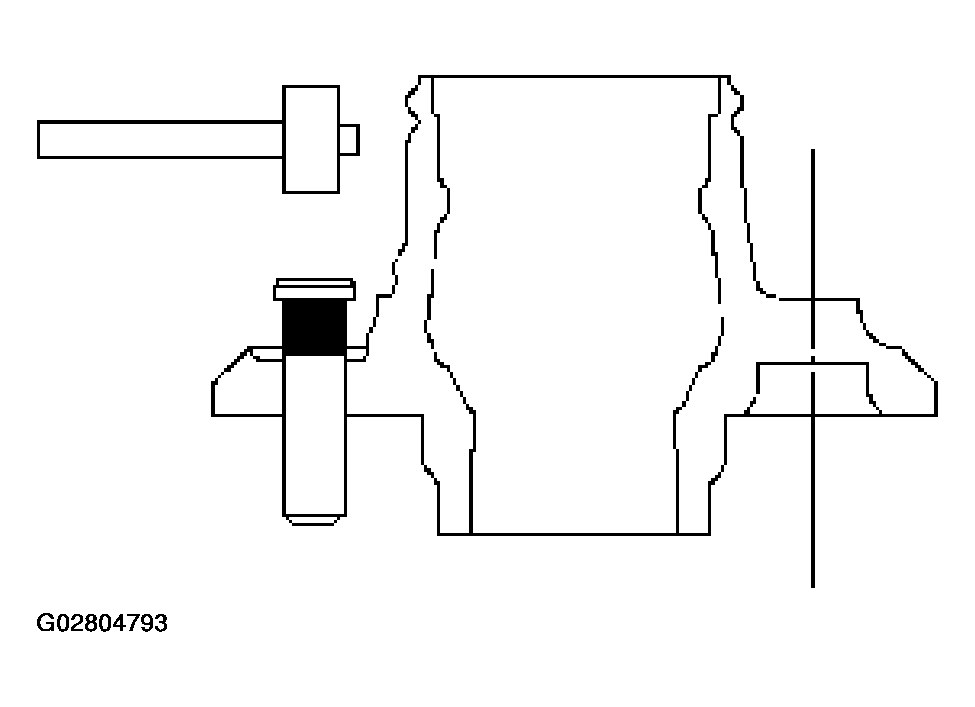

Fig 1: Installing Wheel Stud Using Hammer
Courtesy of ISUZU MOTOR CO.
- Place hub on a wood workbench or a block of wood approx. 6" by 6" to protect the wheel stud ends and threads.
- Install wheel stud, using a hammer.
  NOTE: Be sure wheel stud is started squarely and seats completely.
Install the hub unit bearing to the knuckle. Tighten the bolts to the specified torque.
Hub unit bearing bolt

Torque: 103 +/-10 N.m (10.5+/- 1 CCM)

If there is rust on the bearing and knuckle contact surfaces, use sandpaper to remove it before installation.
Install the ABS sensor connector.
Install the disc rotor.
Install the brake caliper to the bracket. Refer to FRONT DISC BRAKE CALIPER .
