Home >> Isuzu >> 2002 >> Axiom Base, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Exterior / Interior Trim >> Headlining >> Parts Location >> Notes

Parts Location: Notes

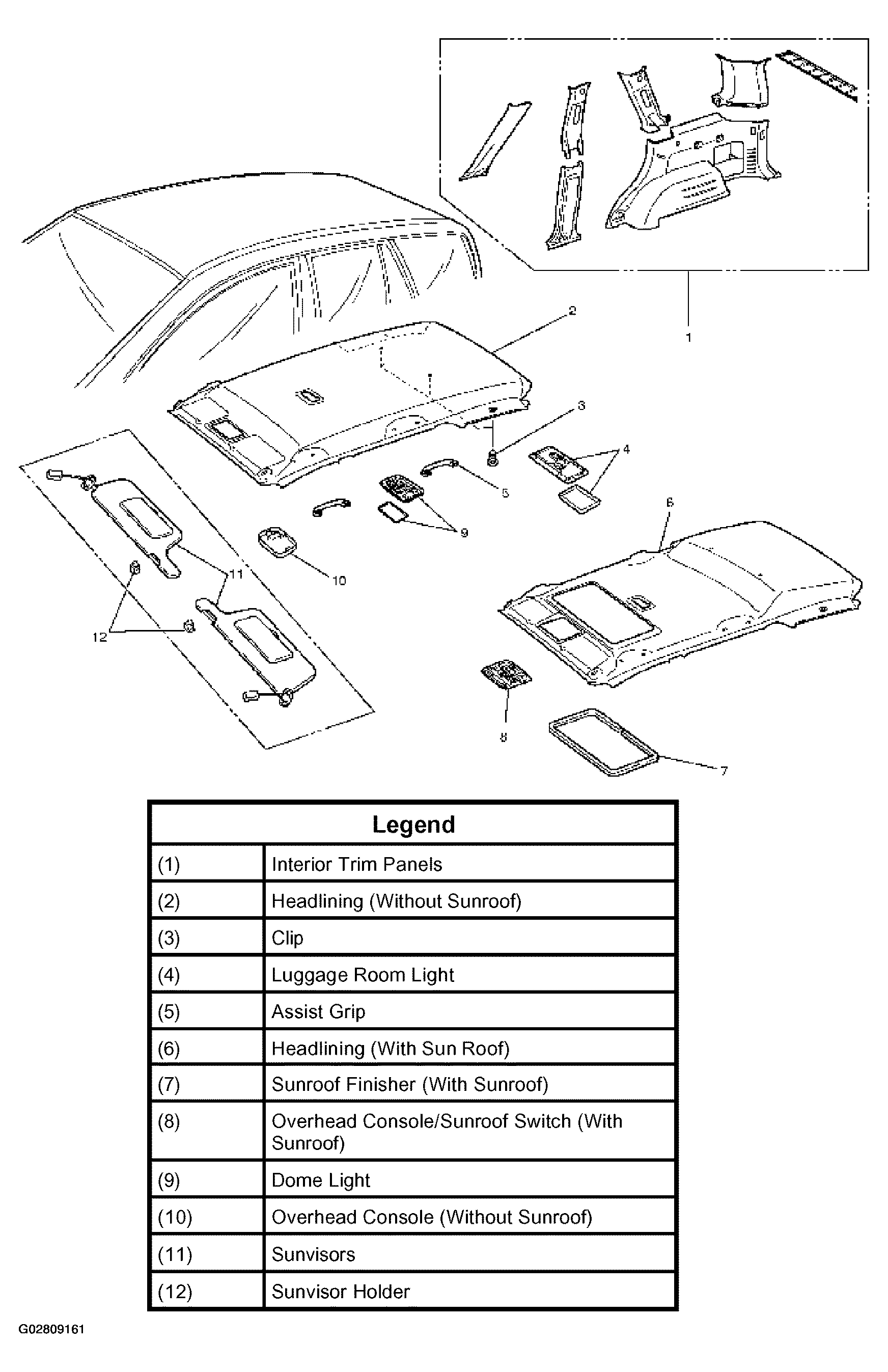

Fig 1: Exploded View Of Headlining

G02809161

Courtesy of ISUZU MOTOR CO.
