Parts Location: Removal

  1. Disconnect the battery ground cable.
  2. Remove the front bumper fascia.
    • Remove the nine clips (2), the three bolts (1) and two screws (3).

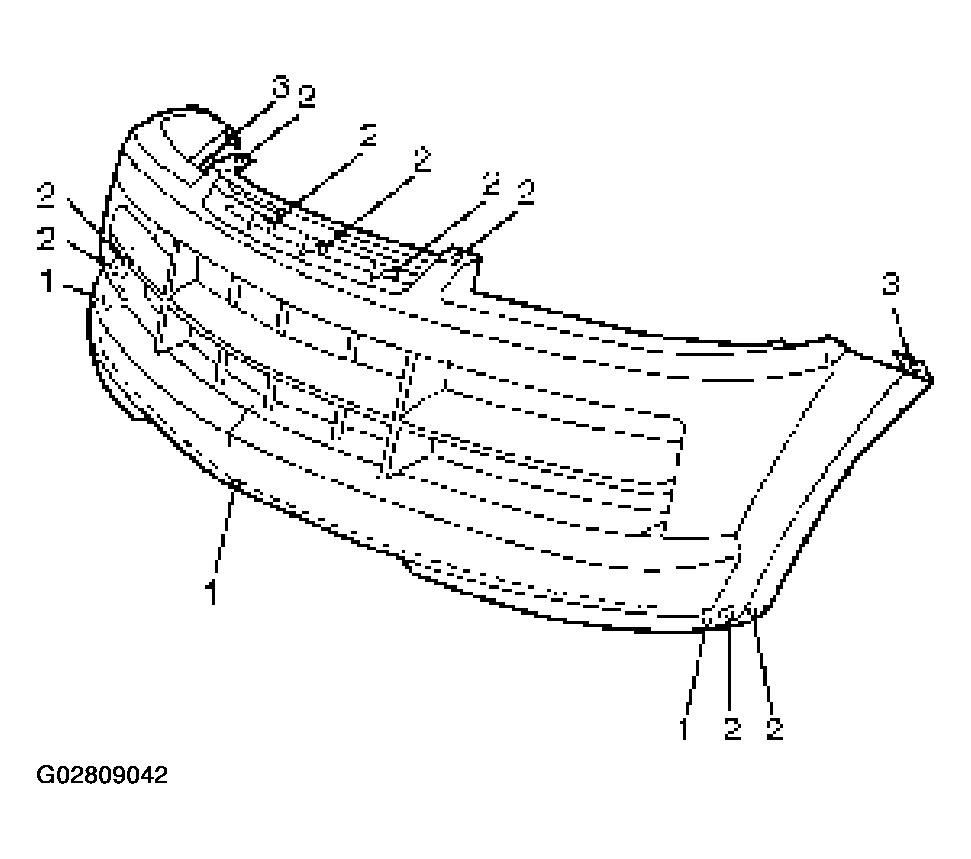

      Fig 1: Identifying Clip & Bolts Of Front Bumper Fascia
      G02809042Courtesy of ISUZU MOTOR CO.
  3. Remove the front bumper center retainer.
    • Remove the two nuts and the bolt.
  4. Remove the front bumper sides's retainers.
    • Remove the four nuts and the bolt from both sides.
  5. Remove the front bumper reinforcement assembly.
    • Remove the four bolts.
  6. Remove the front bumper center bracket.
    • Remove the two bolts.
  7. Remove the front bumper sides's brackets (1).
  8. Remove the two nuts (2) from both sides.

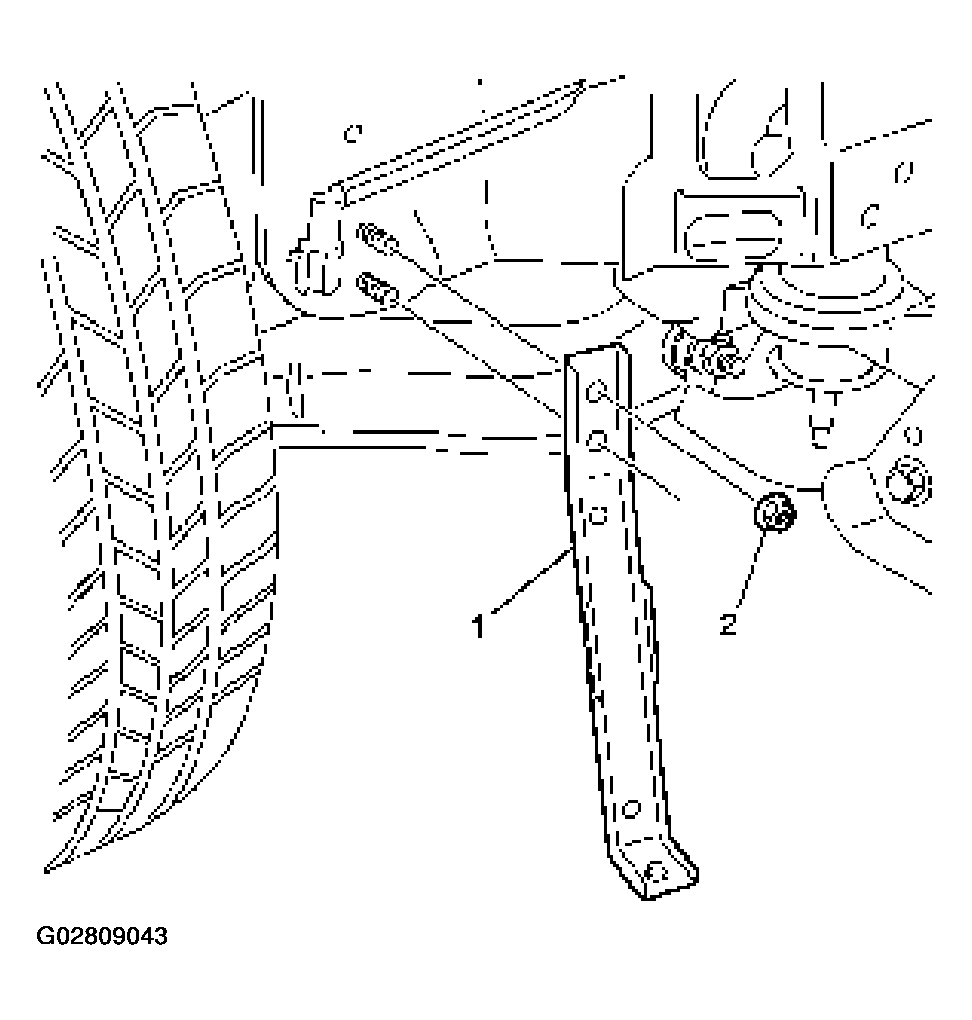

    Fig 2: Identifying Nut Of Front Bumper Side Brackets
    G02809043Courtesy of ISUZU MOTOR CO.
  9. Remove the front bumper back bar assembly.
    • Remove the two bolts from both sides of the front bumper.

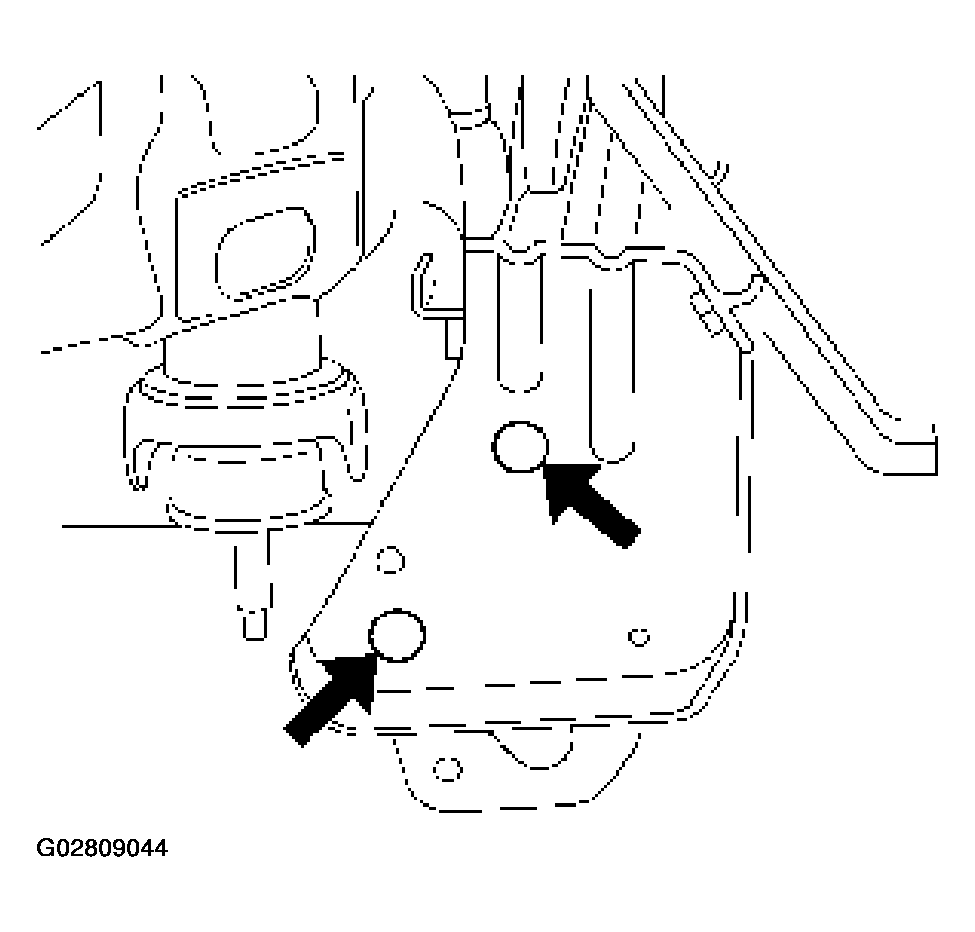

      Fig 3: Identifying Bolts Of Front Bumper Back Bar Assembly
      G02809044Courtesy of ISUZU MOTOR CO.
  10. Remove the front bumper mounting (1).
  11. Remove the screw (2) from both sides.

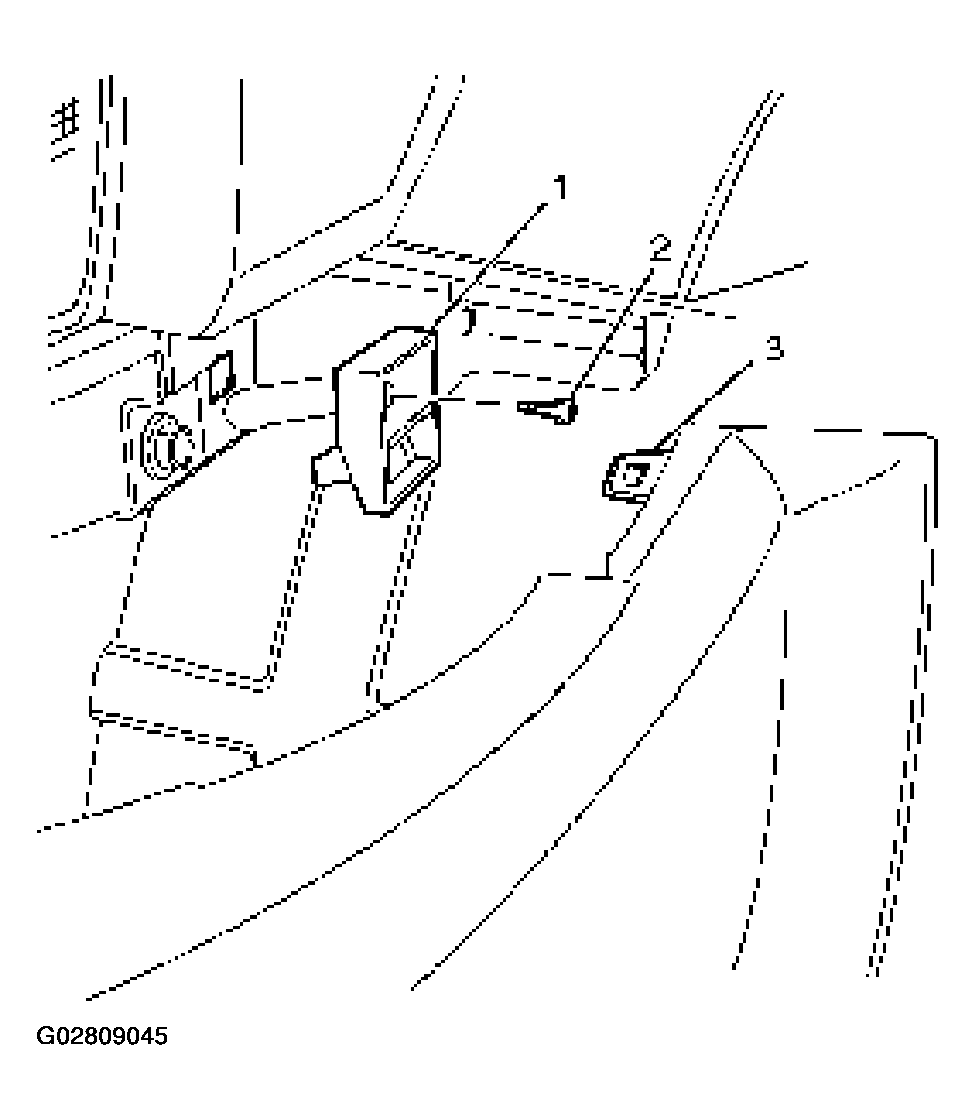

    Fig 4: Identifying Screw Of Front Bumper Mounting
    G02809045Courtesy of ISUZU MOTOR CO.
