Parts Location: Removal

  1. Open the hood.
  2. Support the hood.
  3. Remove the windshield washer nozzle tube.

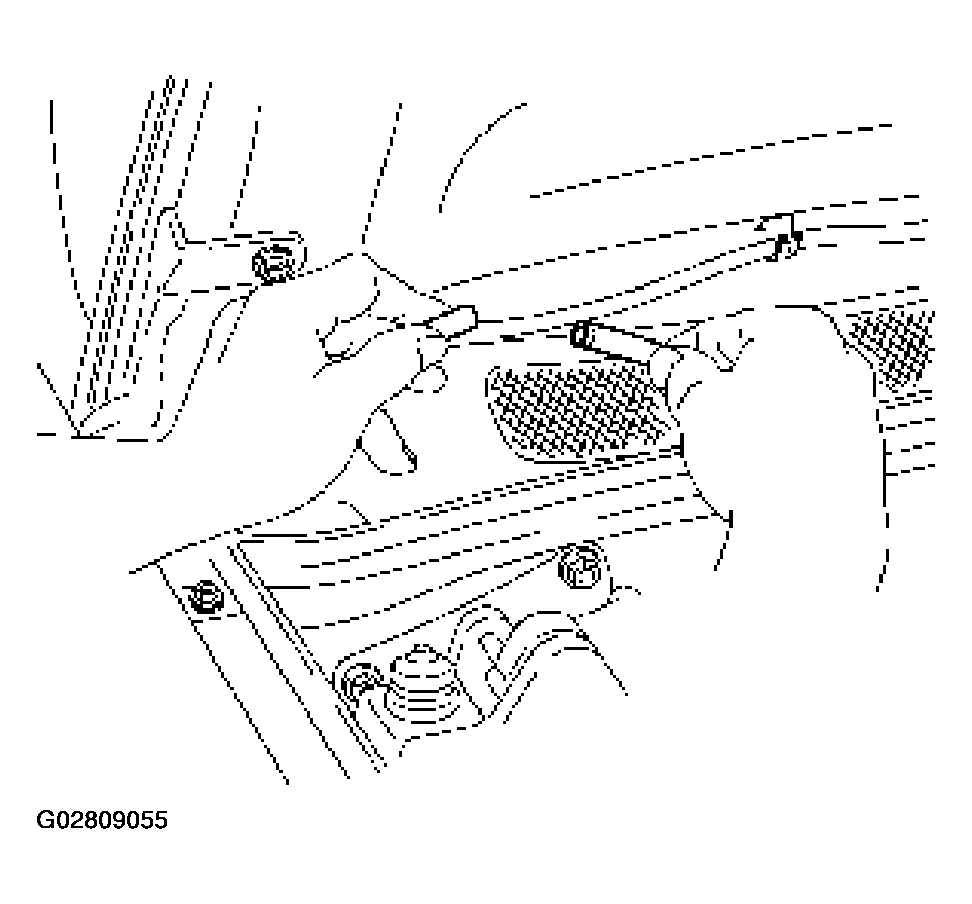

    Fig 1: Removing Windshield Washer Nozzle Tube
    G02809055Courtesy of ISUZU MOTOR CO.
  4. Remove the hood hinge bolts.
    • Before removing the hinges from the engine hood, scribe a mark showing location of the hinges to facilitate installation in the original position.
      Fig 2: Marking Hinge Location Before Removing Hood
      G02809056Courtesy of ISUZU MOTOR CO.
  5. Remove the engine hood.
