DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input

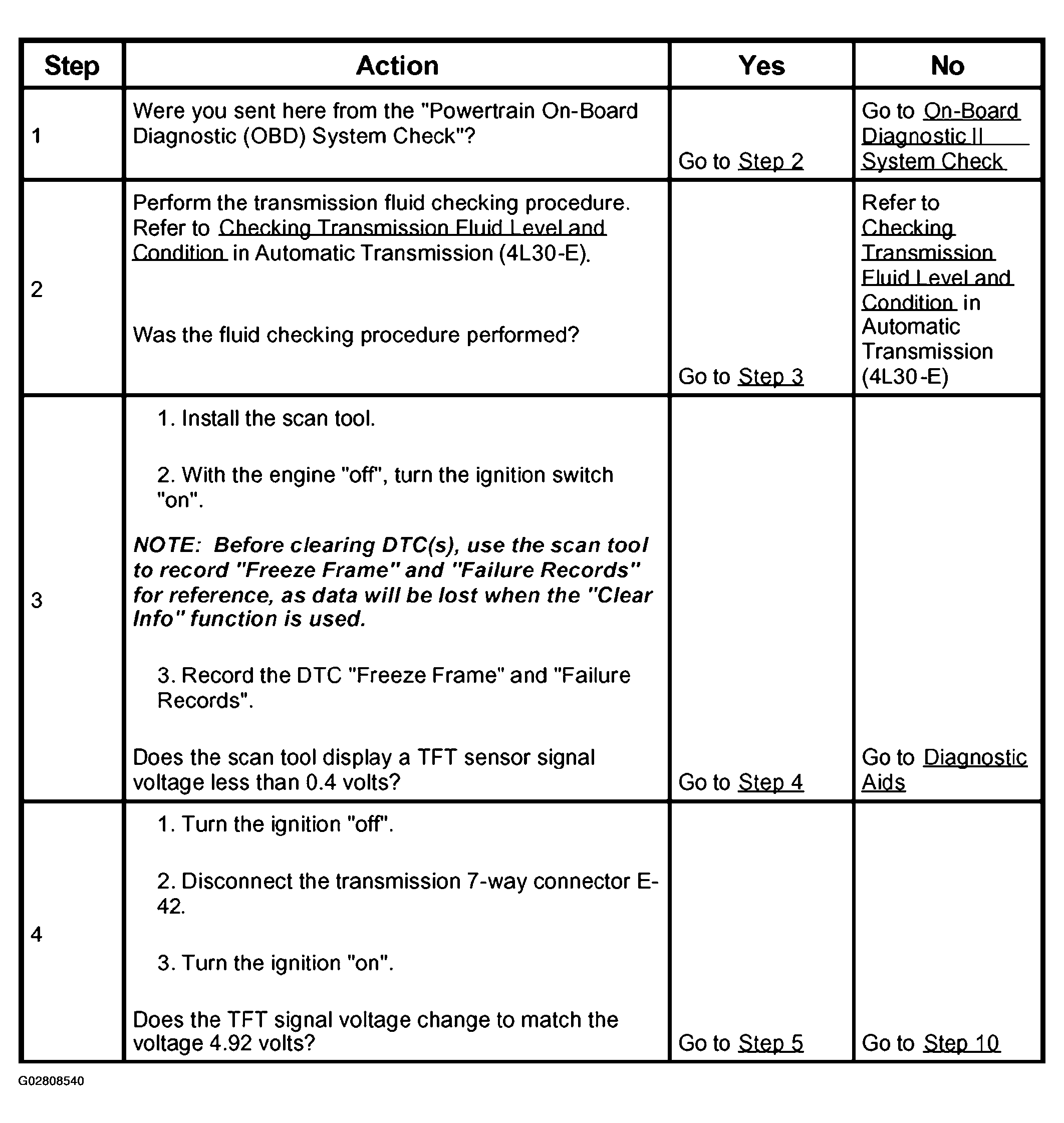

Fig 1: DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input Diagnostic Chart (1 Of 2)

Courtesy of ISUZU MOTOR CO.

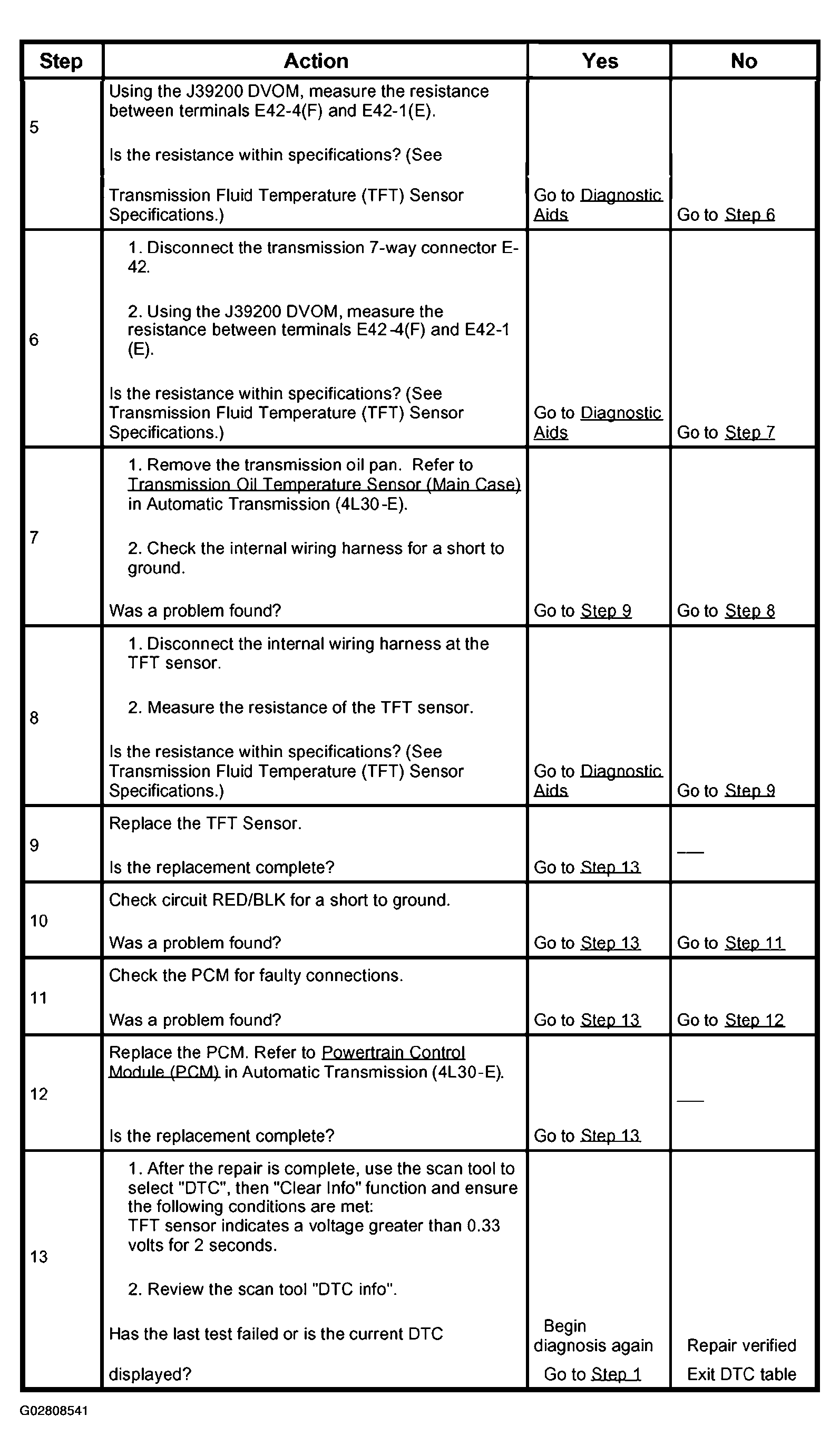

Fig 2: DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input Diagnostic Chart (2 Of 2)

Courtesy of ISUZU MOTOR CO.
