LEMON Manuals
: Even more car manuals for everyone
Home
>>
Isuzu
>>
2002
>>
Axiom Base, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Transmission Control System
>>
Diagnosis
>>
Tech 2 OBD II Connection
>>
Transmission Data
Transmission Data

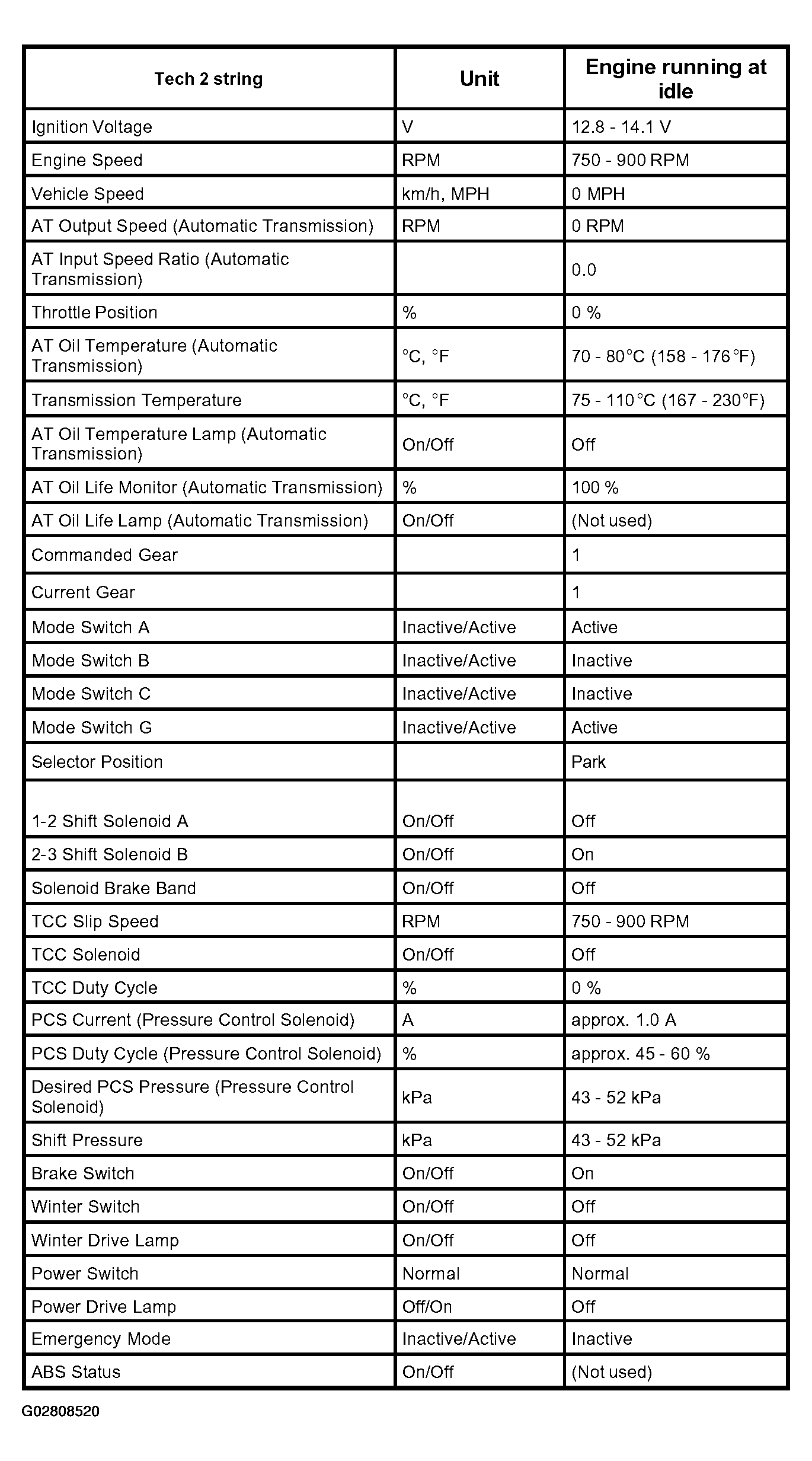

Fig 1: Transmission Data Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
