"Power Mode": Upshift

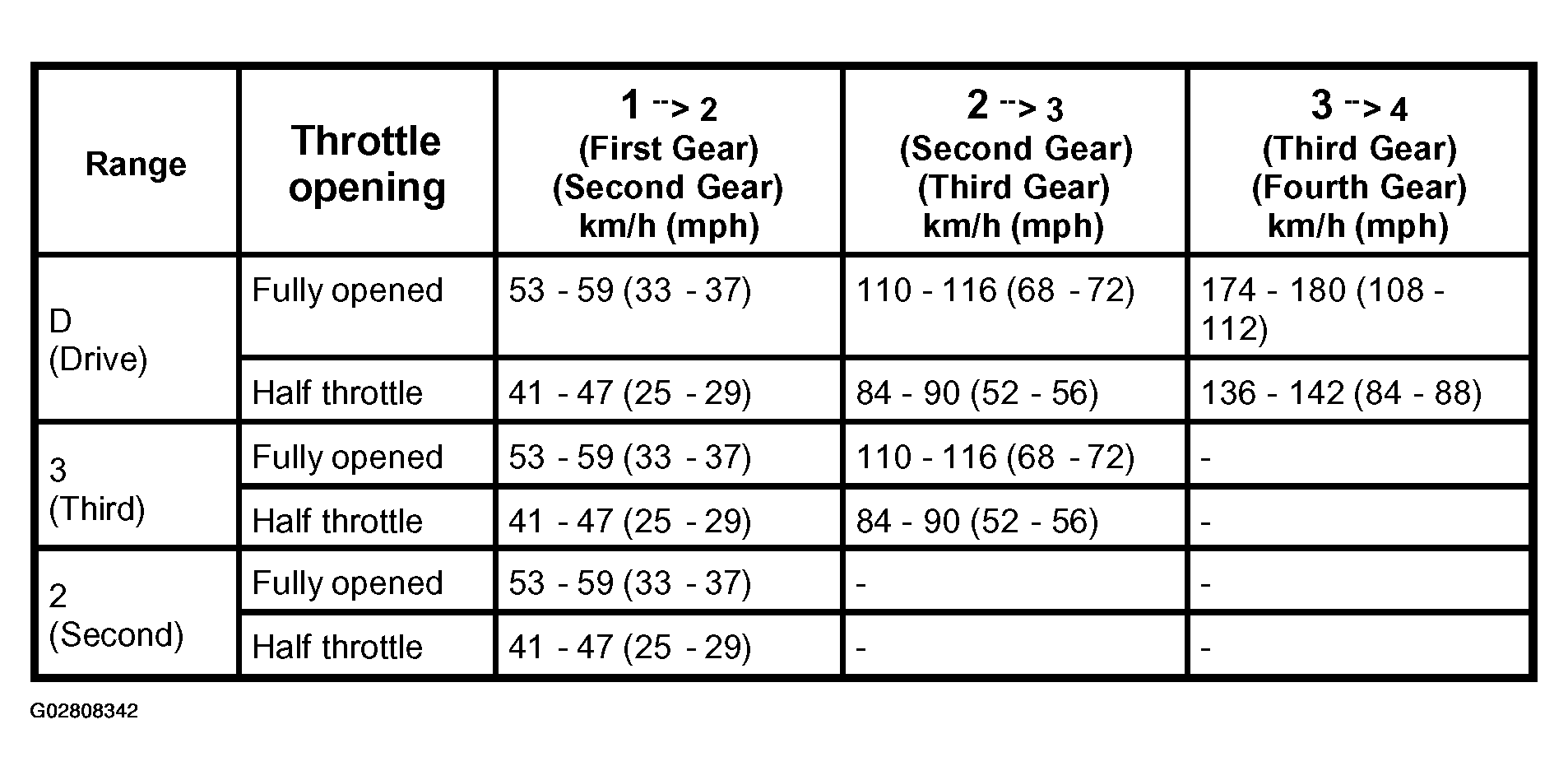

Fig 1: Upshift Speed Chart (Power Mode)

G02808342

Courtesy of ISUZU MOTOR CO.
