Disassembled View: Notes

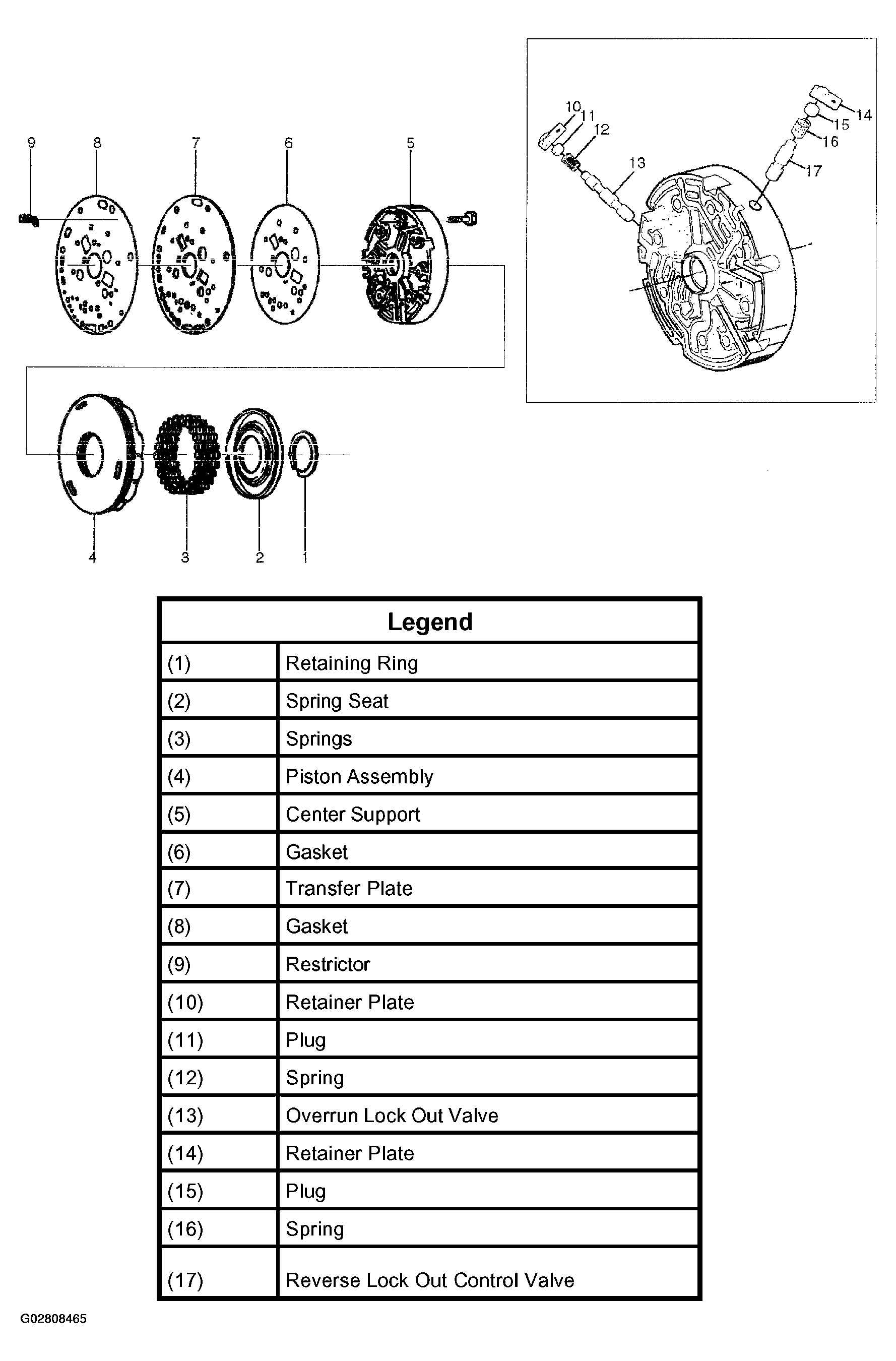

Fig 1: Disassembled View Of Reverse Clutch Piston & Center Support
G02808465Courtesy of ISUZU MOTOR CO.
