Disassembled View: Reassembly

Install wear plate onto oil pump assembly.
Install converter housing onto complete oil pump assembly. Align with two short J-38588 guide pins on outer bolt holes.
- Loosely install five 13 mm bolts.
- Center converter housing using J-38557 centering tool.
- Tighten five inner 13 mm bolts in an alternating pattern.
  Torque: 20 N.m (15 lb ft)

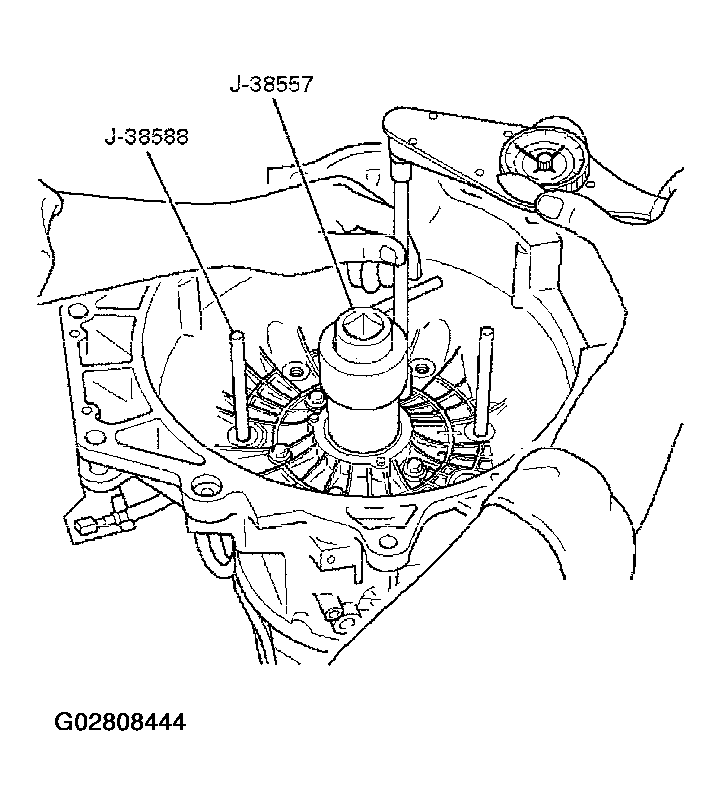

  Fig 1: Installing Converter Housing Onto Complete Oil Pump Assembly
  Courtesy of ISUZU MOTOR CO.
Install oil seal ring (3 screws).
Torque: 3 N.m (26 lb in)
Install gasket.
Install outer seal ring.
