Main Data And Specifications
>>
Torque Specifications
Torque Specifications

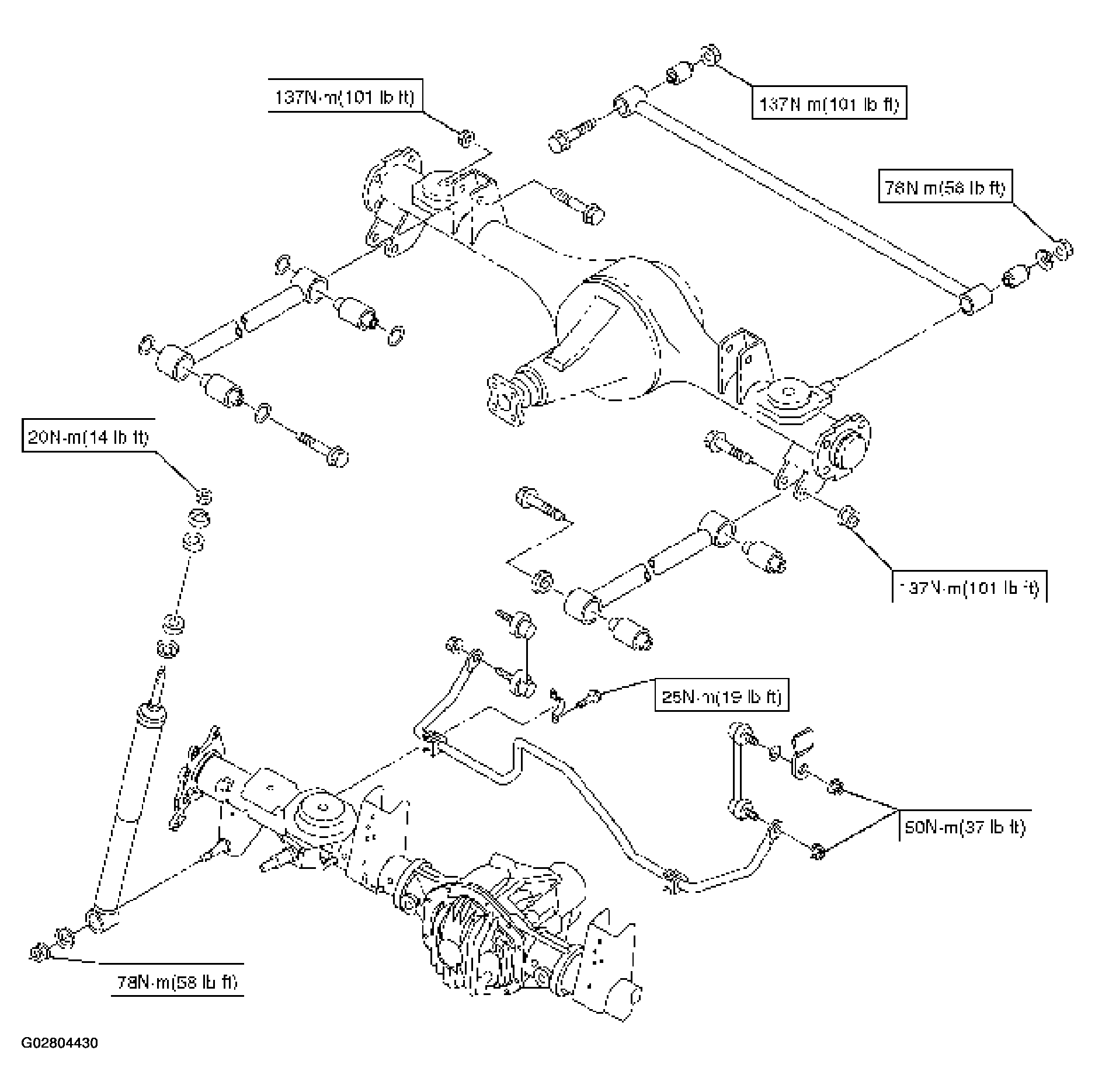

Fig 1: Rear Suspension Torque Specification chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
