Transfer Gear Assembly and Associated Parts

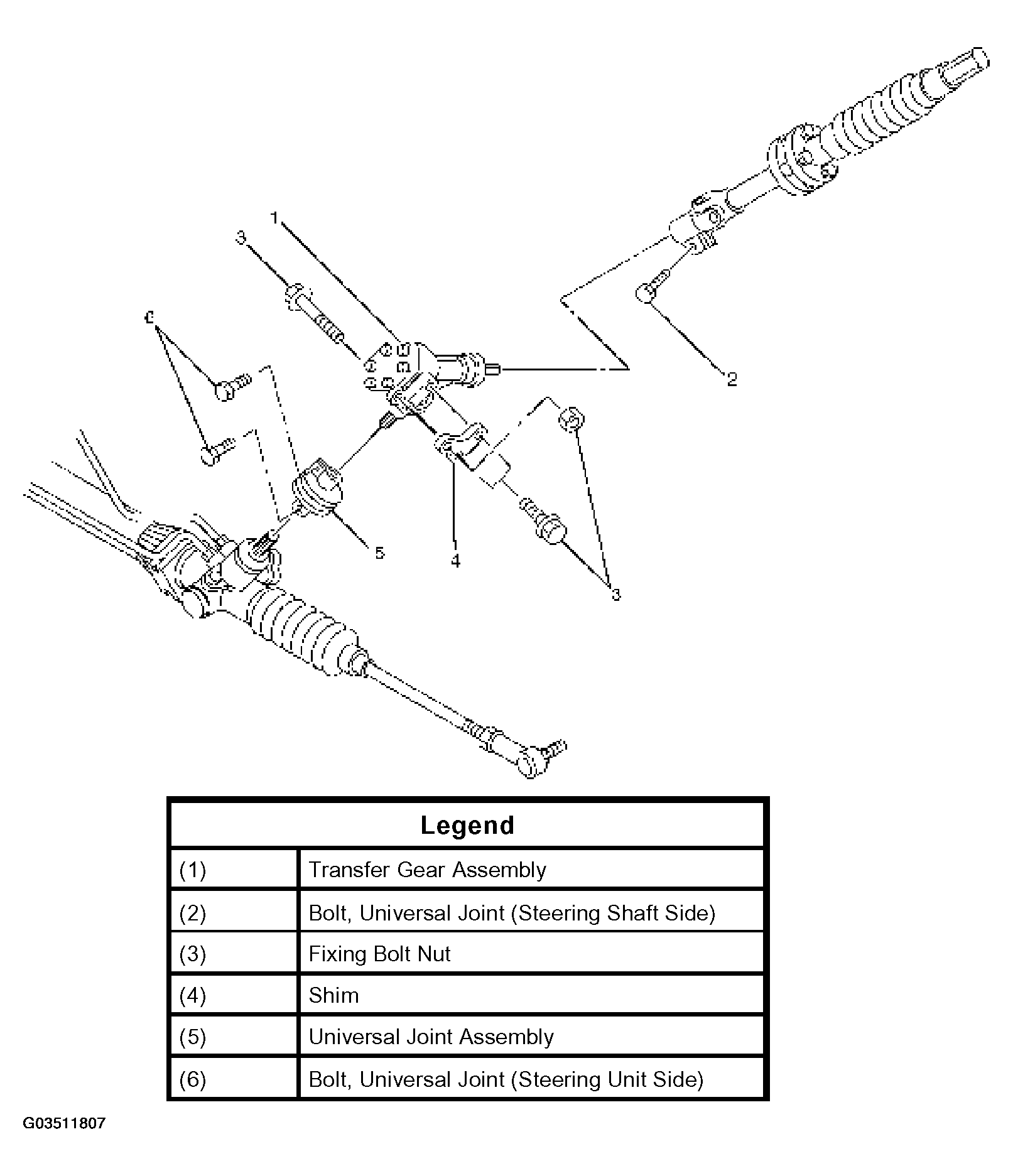

Fig 1: Identifying Transfer Gear Assembly & Associated Parts

G03511807

Courtesy of ISUZU MOTOR CO.
