Lifting Points And Supportable Point Locations
>>
Supportable Point: Front
Supportable Point: Front
Position the chassis stands at the bottom of the frame sidemember, behind the front wheel.

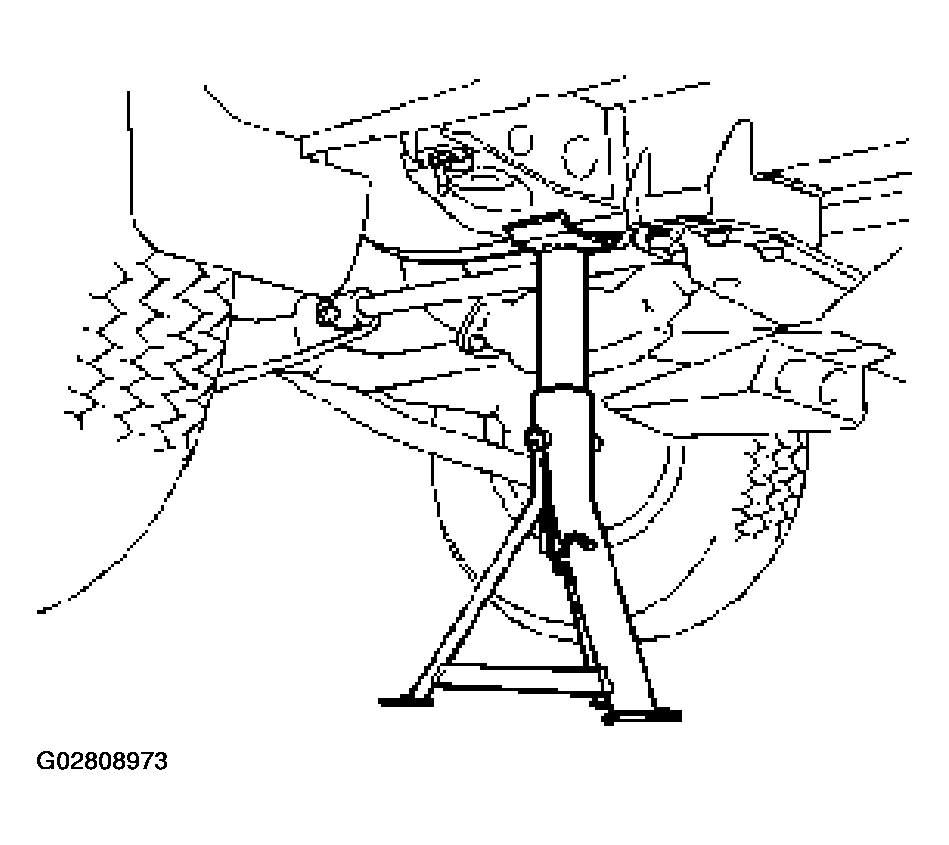

Fig 1: Identifying Supportable Point - Front
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
