Home >> Isuzu >> 2002 >> Axiom Base, 4WD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Fuel >> Fuel Tank >> Fuel Tank And Associated Parts >> Notes

Fuel Tank And Associated Parts: Notes

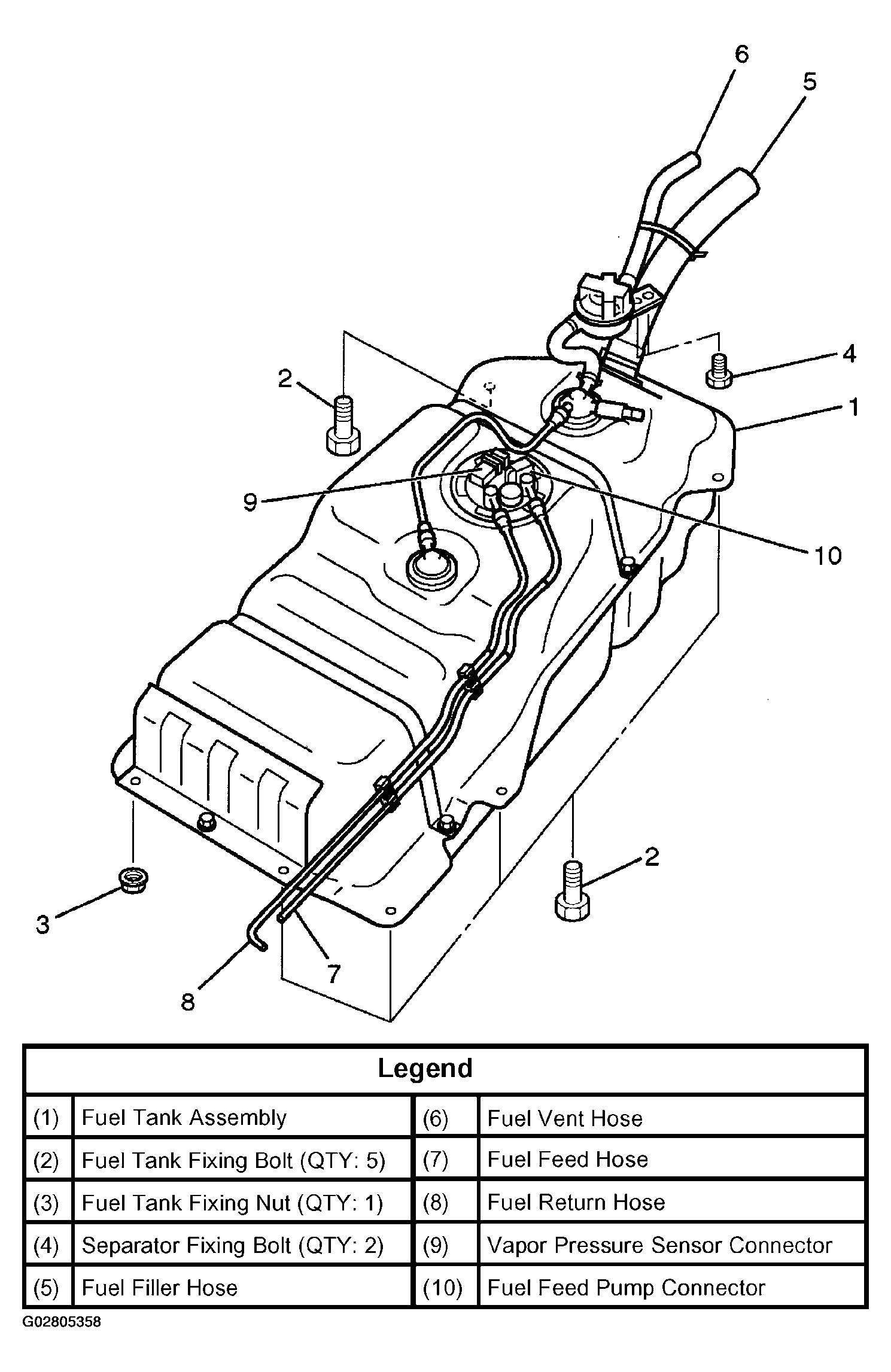

Fig 1: Identifying Fuel Tank

G02805358

Courtesy of ISUZU MOTOR CO.
