Home >> Isuzu >> 2002 >> Axiom Base, 4WD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Fuel >> Fuel Pump >> Fuel Pump And Associated Parts >> Notes

Fuel Pump And Associated Parts: Notes

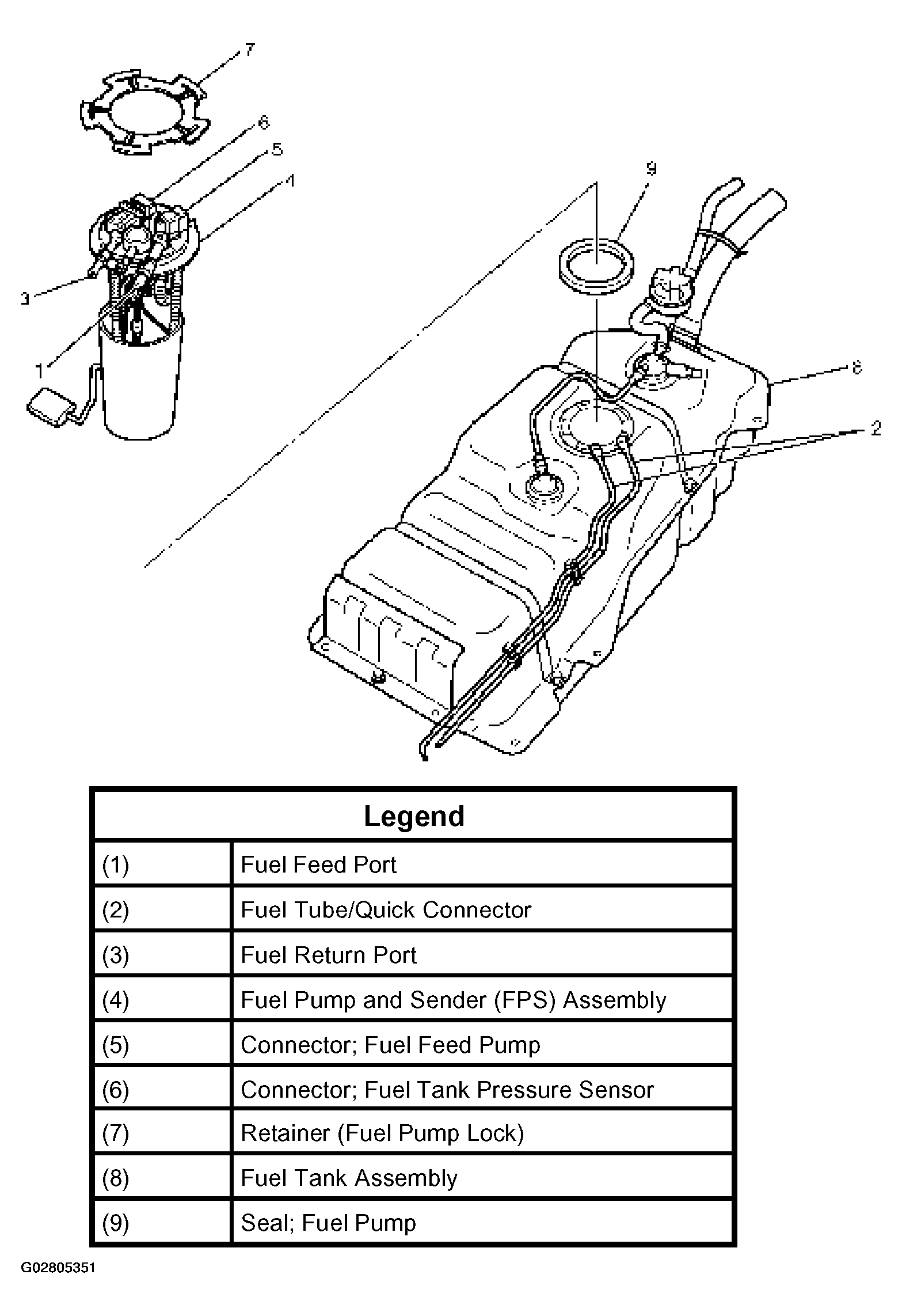

Fig 1: Identifying Fuel Pump

G02805351

Courtesy of ISUZU MOTOR CO.
