DTC 13: 2WD Controller In 4WD Vehicle Controller (Flash Out) C0285 (Serial Communications), DTC 24: 4WD State Input Signal Failure (Flash Out) C0282 (Serial Communications)

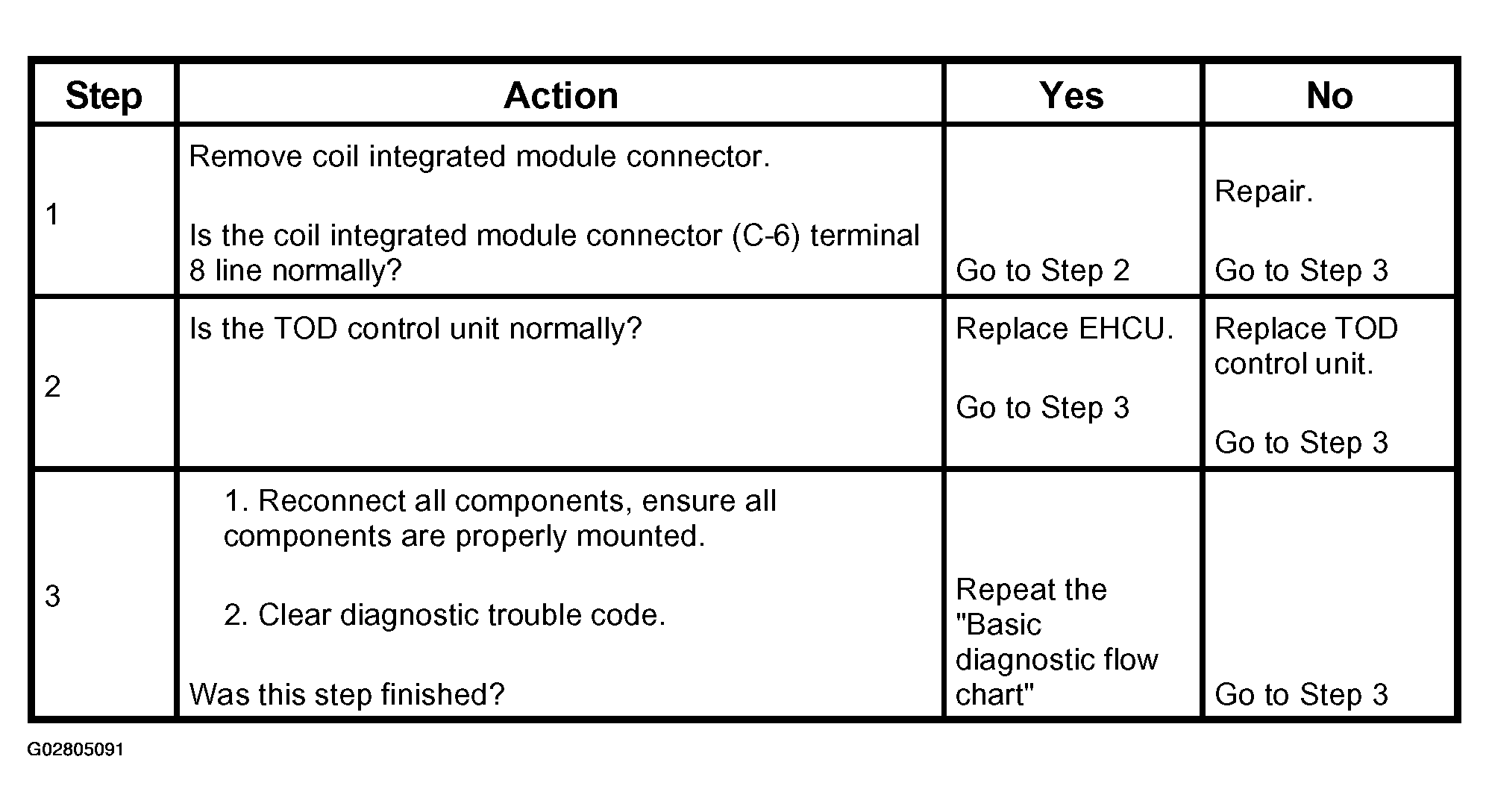

Fig 1: Diagnosis Procedure - 2WD Controller In 4WD Vehicle Controller (DTC 13 (Flash Out) / C0285 (Serial Communications), 4WD State Input Signal Failure (DTC 24 (Flash Out) / C0282 (Serial Communications)
G02805091Courtesy of ISUZU MOTOR CO.
