Home >> Isuzu >> 2002 >> Axiom Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Structure >> Front Window Regulator, Glass And Glass Run >> Parts Location >> Notes

Parts Location: Notes

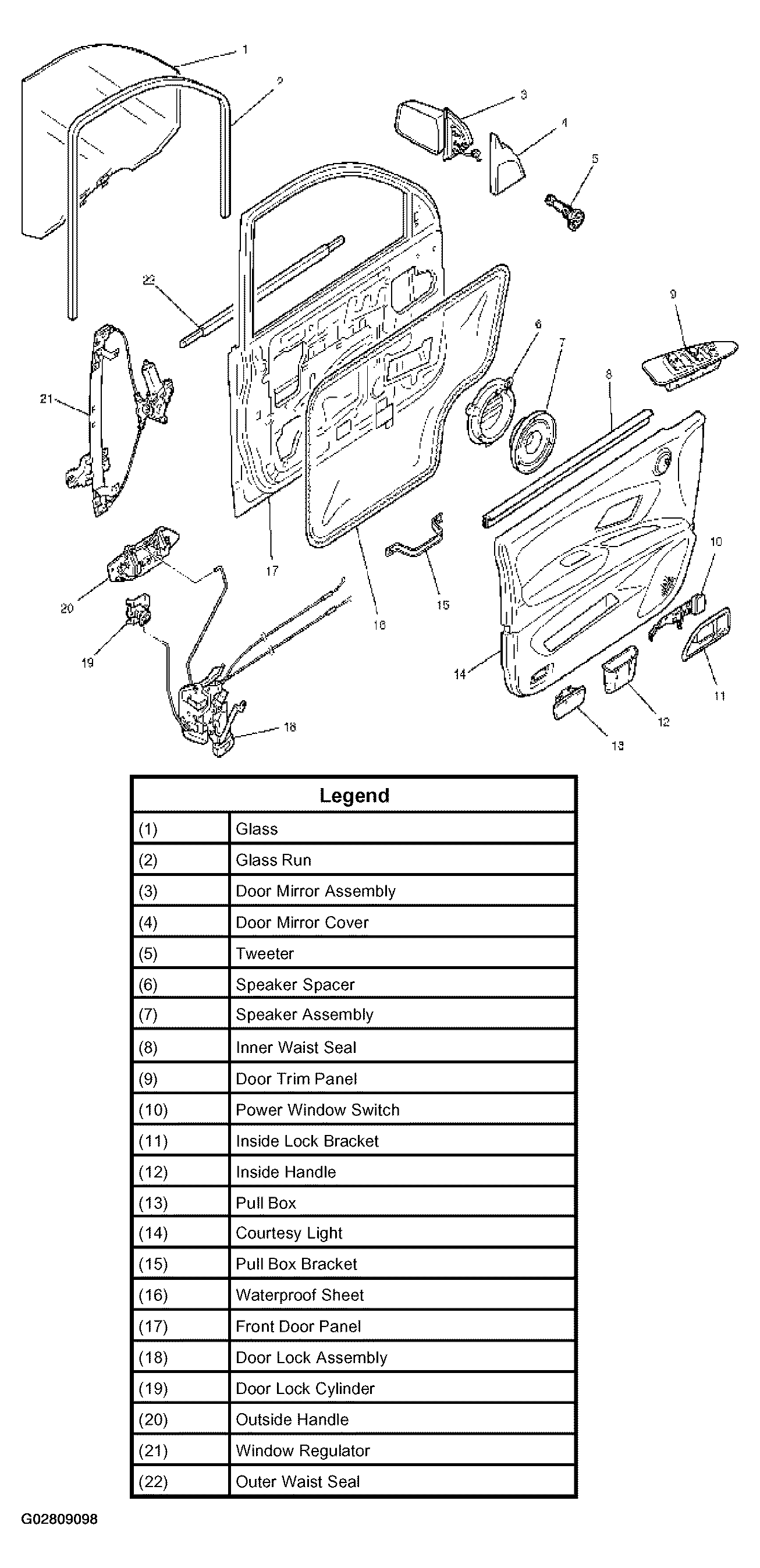

Fig 1: Identifying Parts Location Of Front Window Regulator, Glass & Glass Run

G02809098

Courtesy of ISUZU MOTOR CO.
