Parts Location: Removal

  1. Disconnect the battery ground cable.
  2. Remove the front bumper fascia assembly.
  3. Remove the front turn signal light assembly.
    • Remove the fixing screw and disconnect the connector.

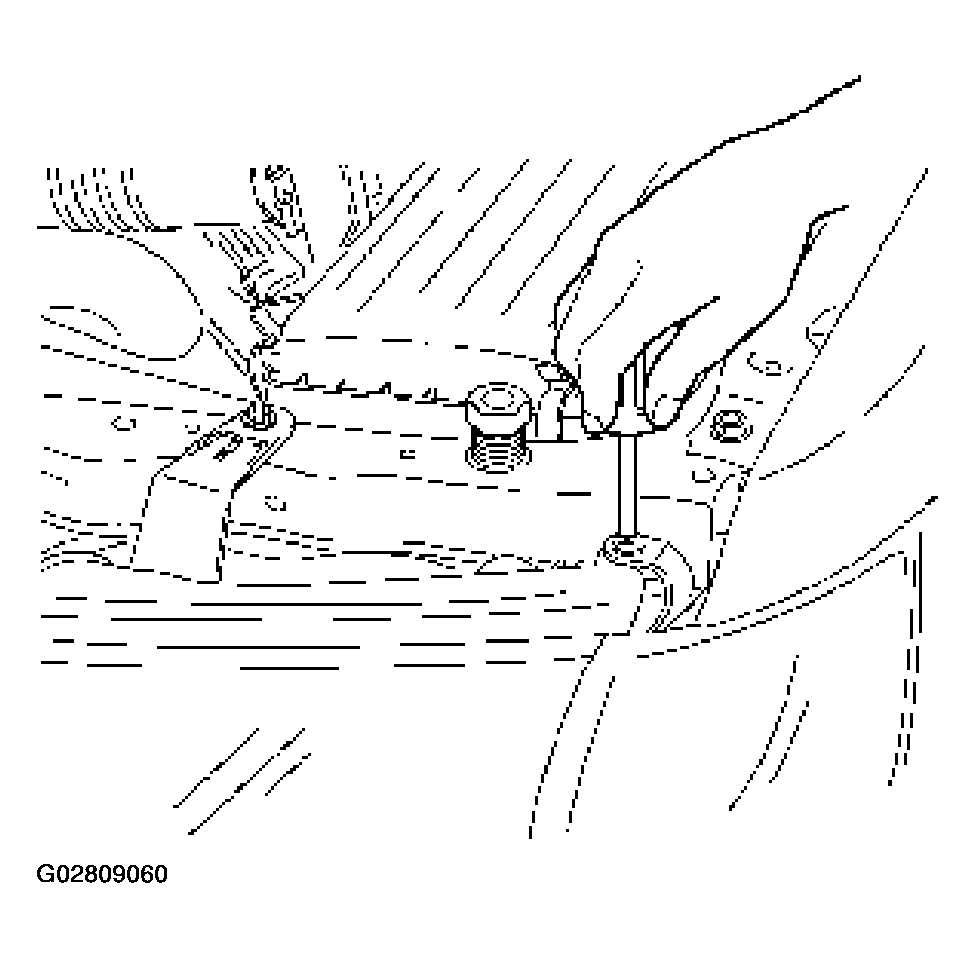

      Fig 1: Removing Screw Front Turn Signal Light Assembly
      G02809060Courtesy of ISUZU MOTOR CO.
  4. Remove the locker cover assembly.
  5. Remove the inner liner.
    Fig 2: Removing Inner Liner Of Wheel Well
    G02809061Courtesy of ISUZU MOTOR CO.
  6. Remove the antenna assembly.
  7. Remove the front fender panel (1).
    • Remove the eight fixing bolts.
  8. Remove the engine compartment upper extension (2).

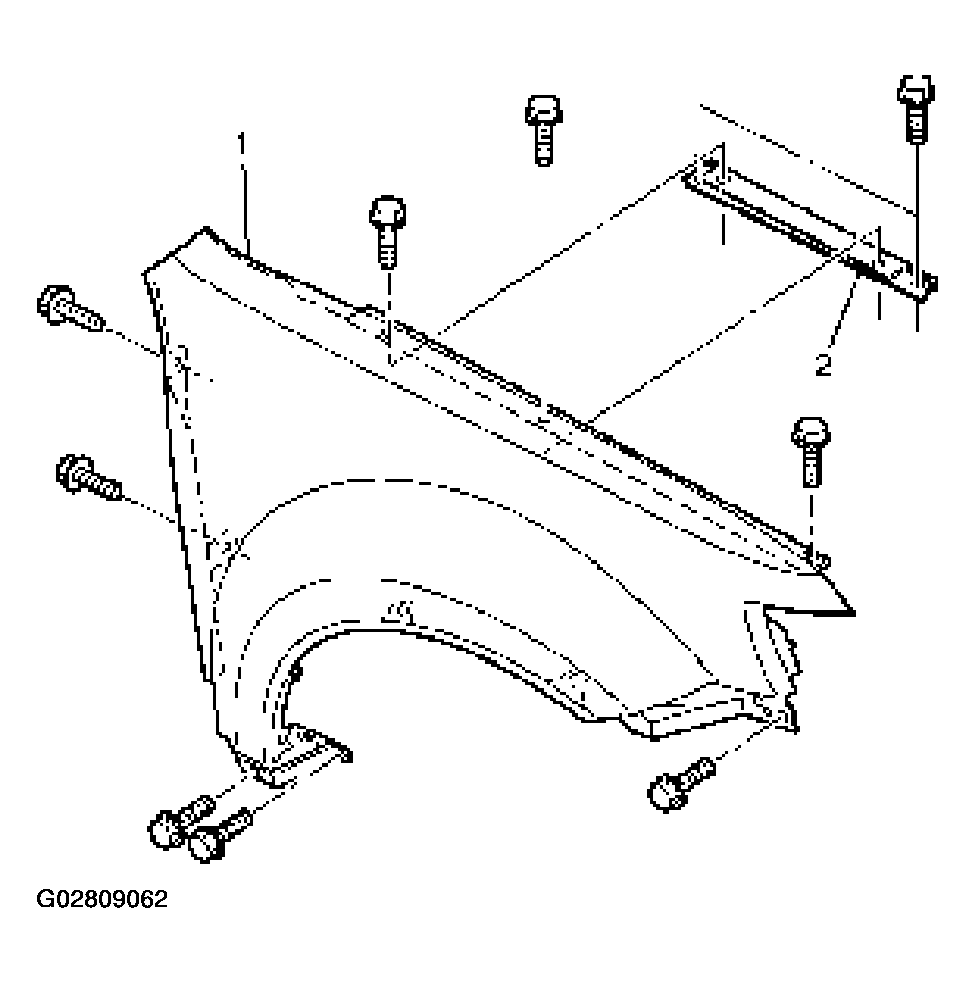

Fig 3: Removing Bolts Front Fender Panel
G02809062Courtesy of ISUZU MOTOR CO.
