Parts Location: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Tighten the front fender panel fixing bolts to the specified torque.

   Torque:  7 N.m (61 lb in)

2. Check the fender and front door (1).

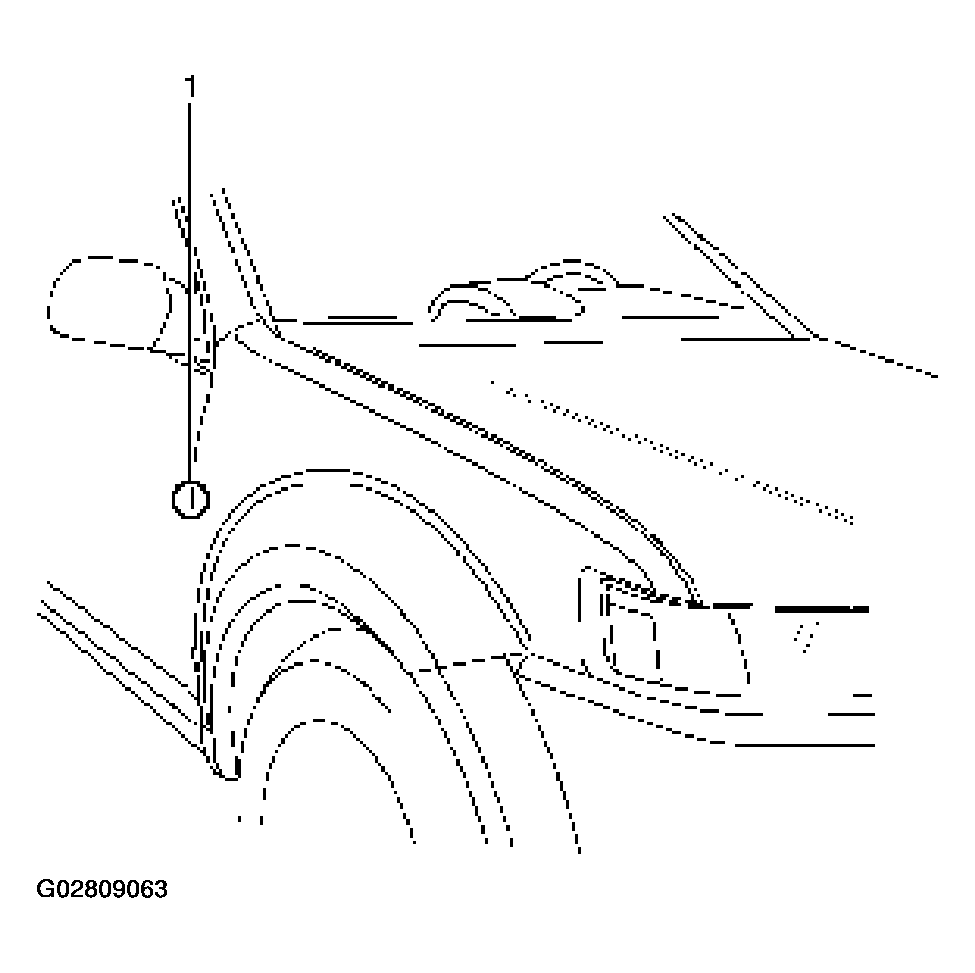

   Fig 1: Checking Front Fender & Front Door Clearence

   Courtesy of ISUZU MOTOR CO.

Clearance:  5.0 mm (0.196 in)

Height (step):  Flush

Fig 2: Checking Front Fender & Front Door Height (Step)

Courtesy of ISUZU MOTOR CO.
