Parts Location: Removal

  1. Disconnect the battery ground cable.
  2. Apply a setting mark on the body side hinge.
  3. Remove the door check arm bolt.

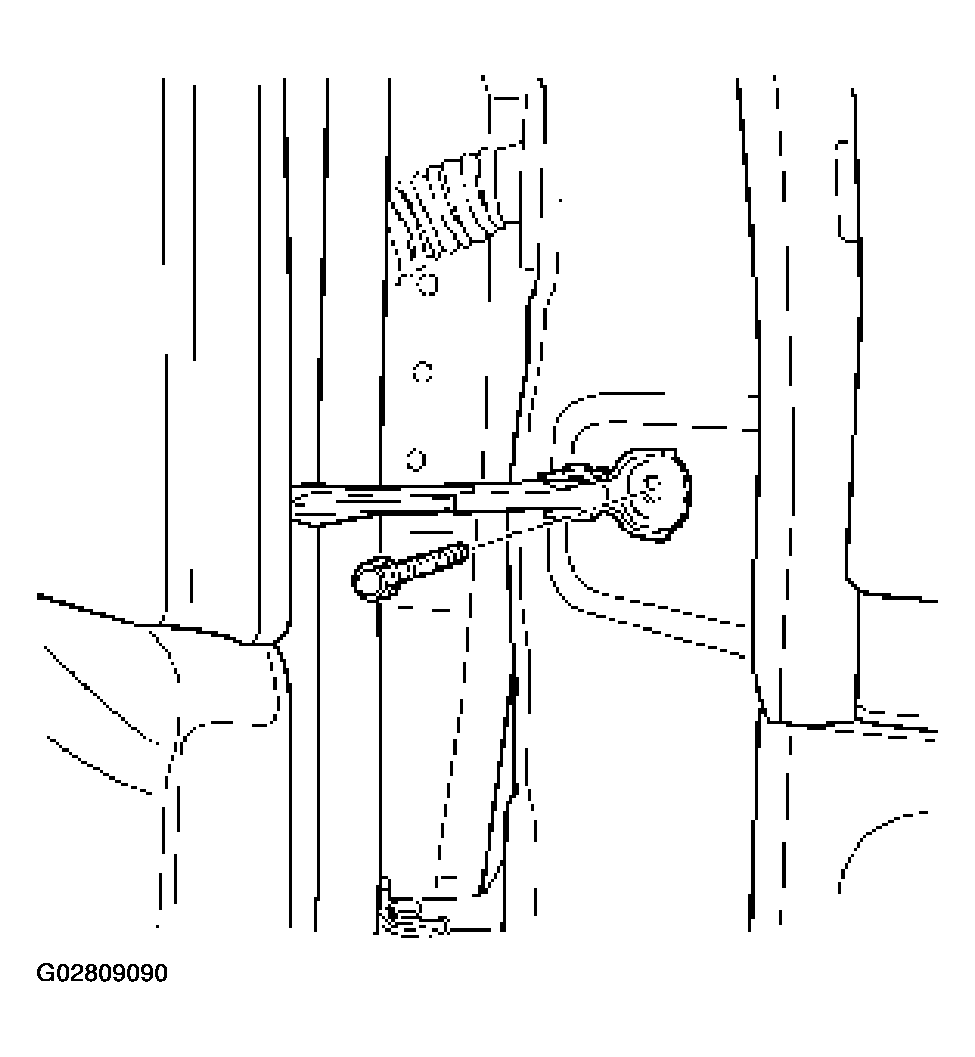

    Fig 1: Removing Door Check Arm Bolt
    G02809090Courtesy of ISUZU MOTOR CO.
  4. Remove the upper and lower hinge bolts.
    • Position a wood block under the door for protection and support the door assembly with hands during removal or installation.

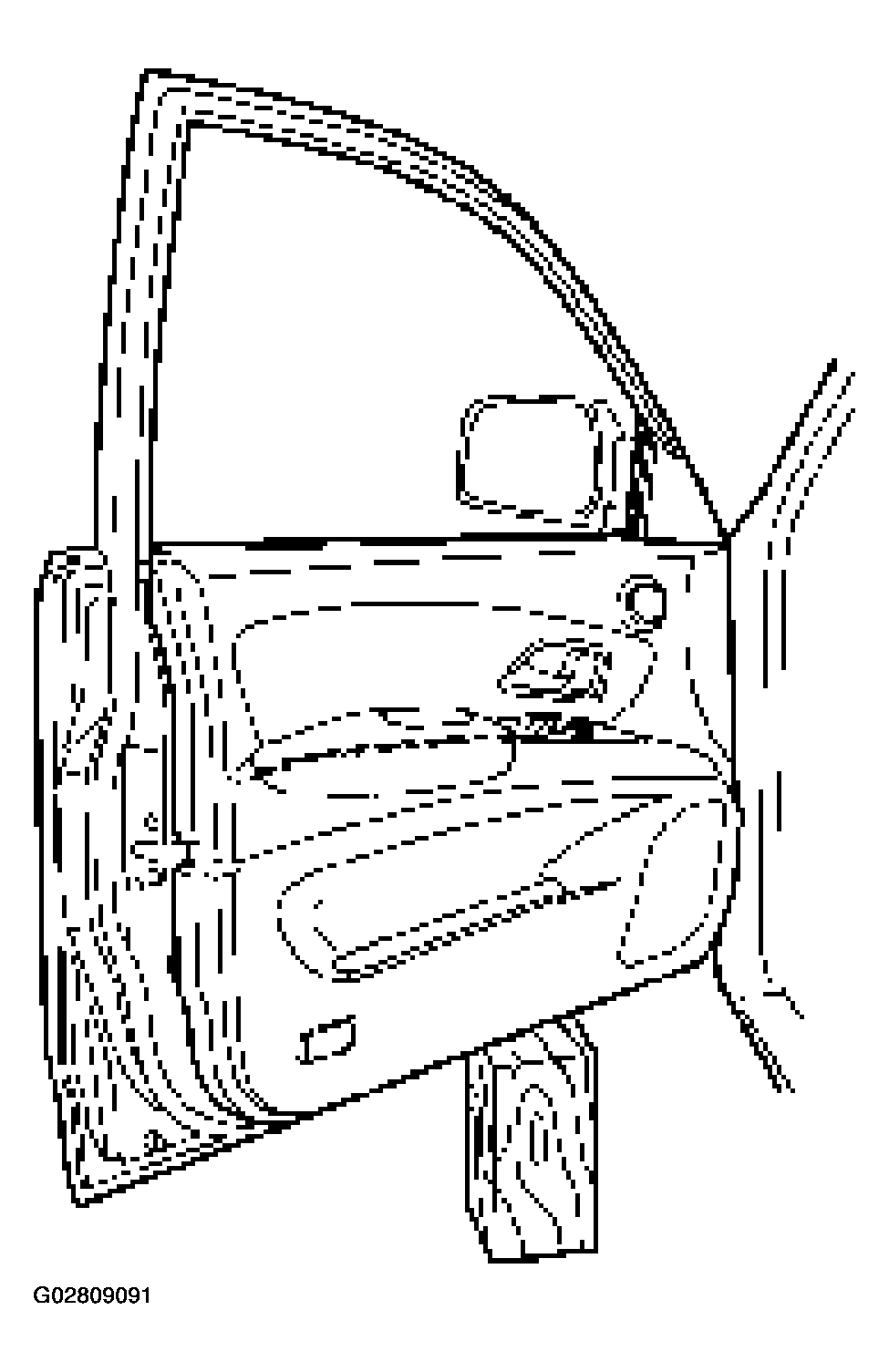

      Fig 2: Positioning Wood Block Under Door For Protection & Supporting Of Door Assembly
      G02809091Courtesy of ISUZU MOTOR CO.
  5. Remove the door harness connector.
    • Pull the door harness grommet out in order to disconnect the harness connector.

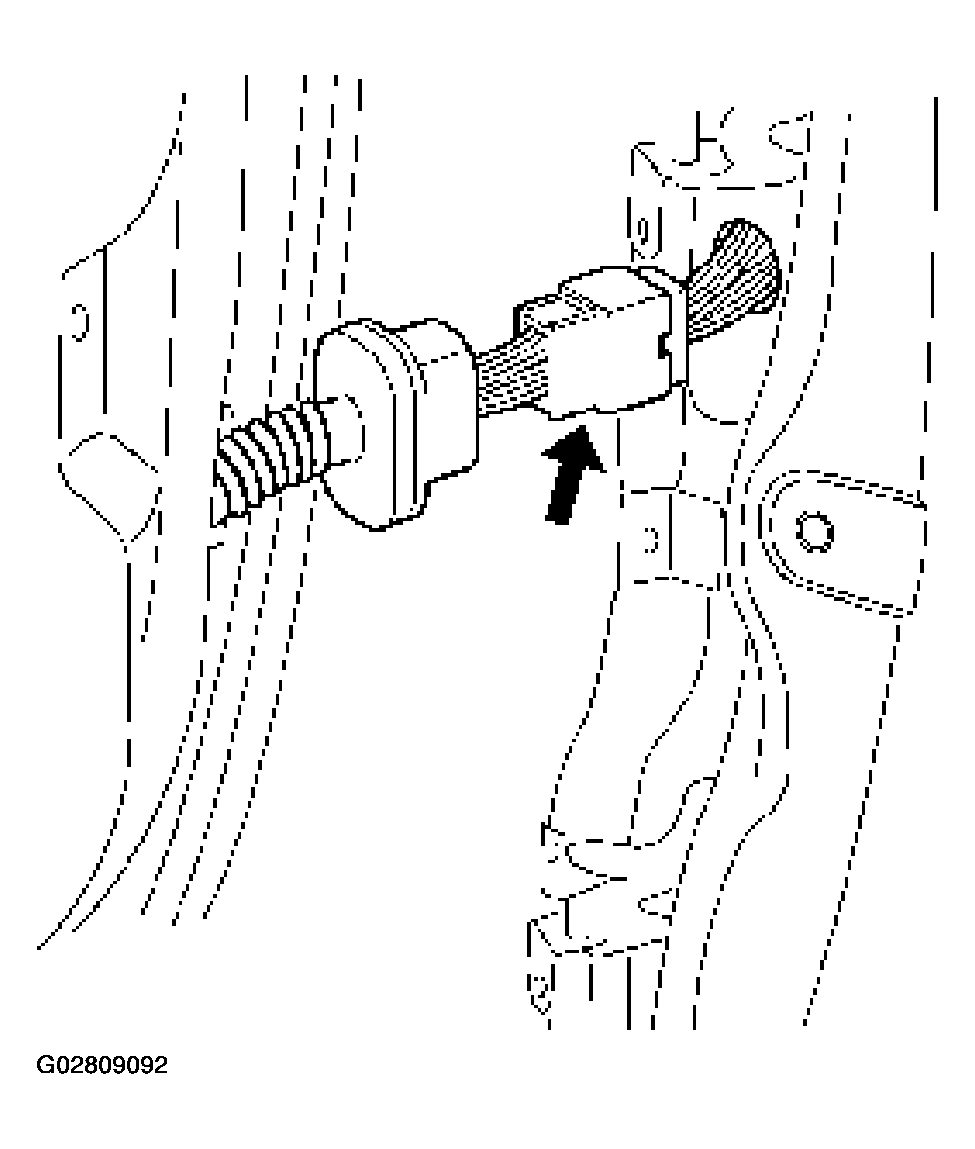

      Fig 3: Removing Door Harness Connector
      G02809092Courtesy of ISUZU MOTOR CO.
  6. Remove the front door assembly.
