Parts Location: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Tighten the engine hood hinge fixing bolts to the specified torque.

   Torque:  10 N.m (87 lb in)

2. Check the engine hood and fender (1).

   Clearance:  4.5 mm (0.18 in)

   Height (step):  0.5 mm (0.02 in)

   • Adjust clearance with the hinges on the engine hood.
   • Adjust height (step) with the hood rests (2).

Fig 1: Adjusting Clearance With Hinges On Engine Hood

Courtesy of ISUZU MOTOR CO.

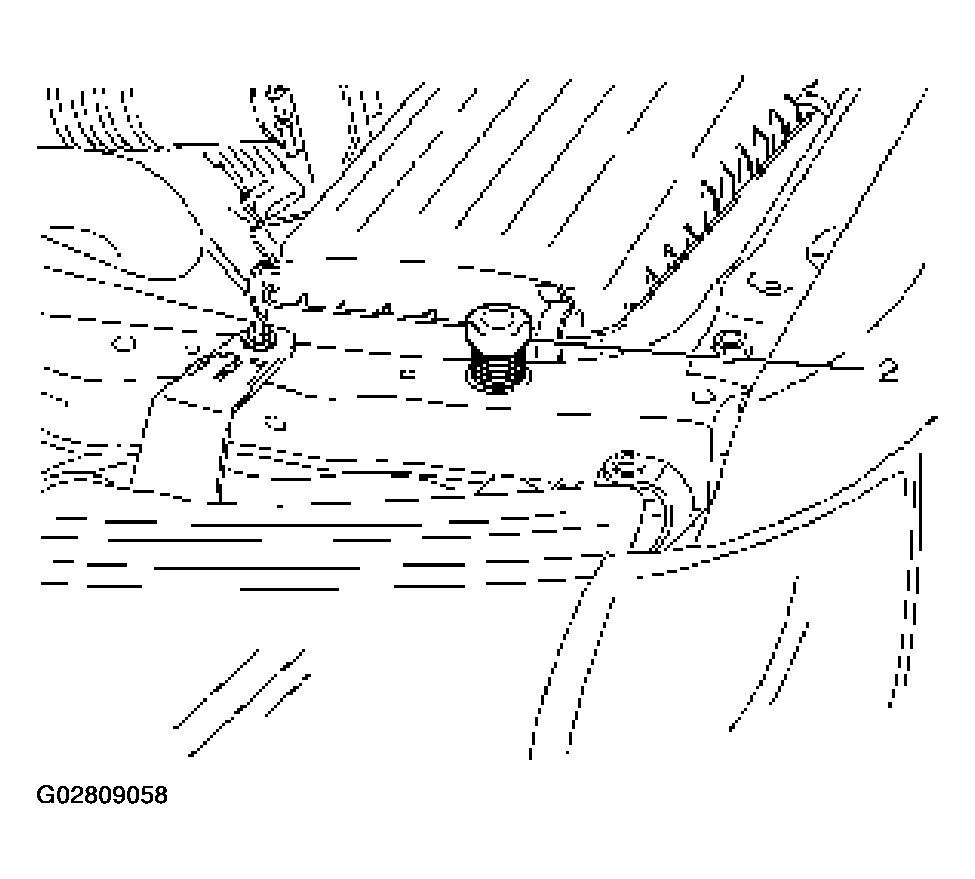

Fig 2: Adjusting Height With Hood Rests

Courtesy of ISUZU MOTOR CO.
