Front Wheel Speed Sensor And Associated Parts: Notes

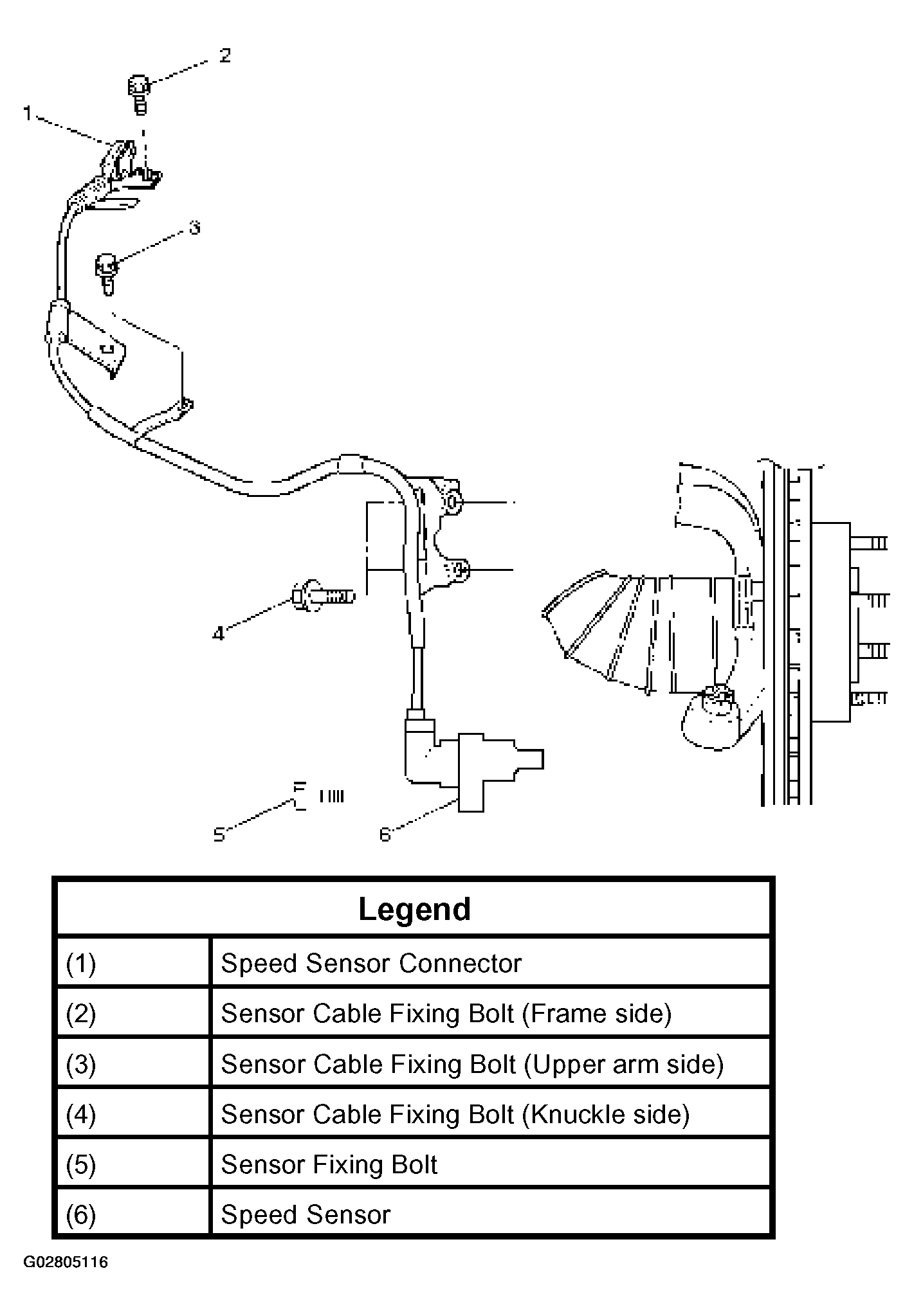

Fig 1: Identifying Front Wheel Speed Sensor & Associated Parts

G02805116

Courtesy of ISUZU MOTOR CO.
