DTC P0218 Transmission Fluid Temperature: Notes

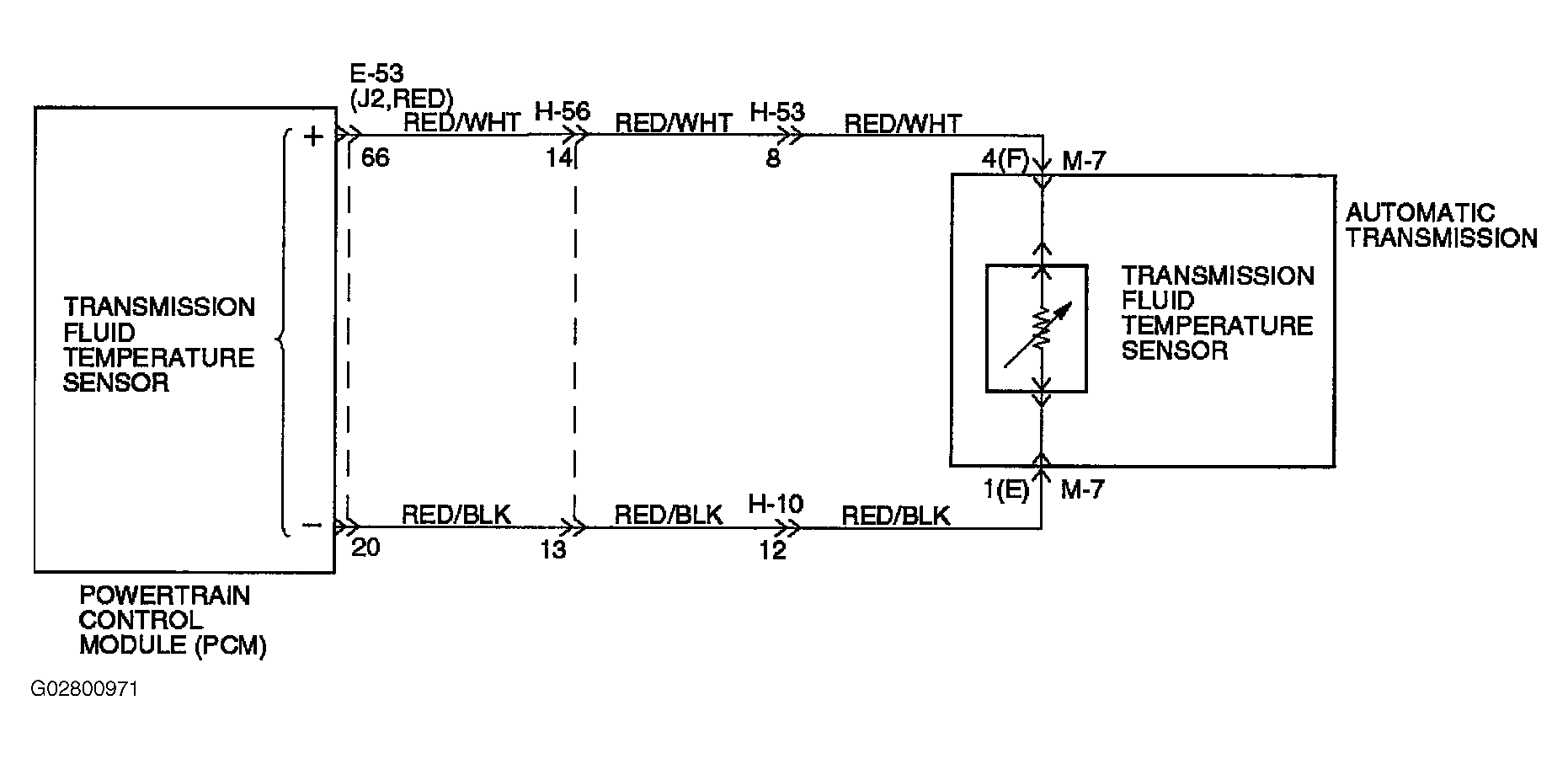

Fig 1: DTC P0218 Transmission Fluid Over Temperature Circuit Diagram

G02800971

Courtesy of ISUZU MOTOR CO.
