Transfer Connector

Transmits the input and output signals of the speed sensors, electromagnetic coil, and 4H and 4L switches to the vehicle harness. A waterproof 12-pin type is used.

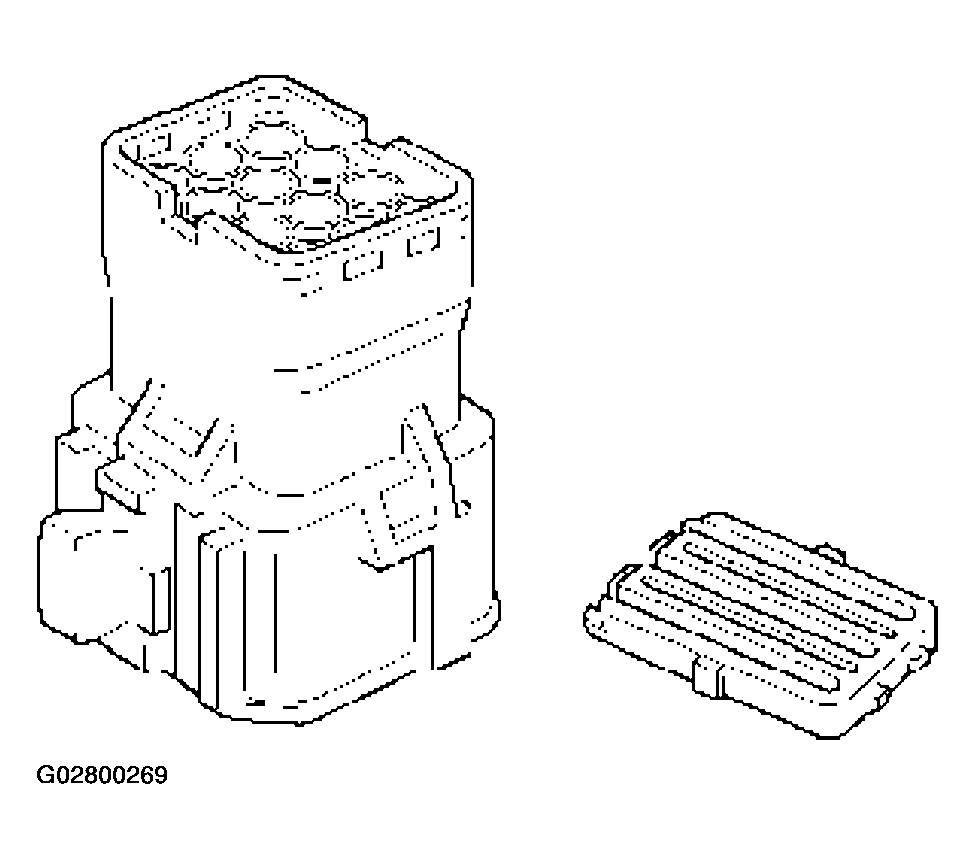

Fig 1: Identifying Transfer Connector
G02800269Courtesy of ISUZU MOTOR CO.
