4WD Control Unit: Removal

  1. Remove lower cluster assembly and front console assembly.

    Refer to INSTRUMENT PANEL ASSEMBLY .

  2. Remove nut.
  3. Remove 4WD control unit.
  4. Disconnect harness connector (1).

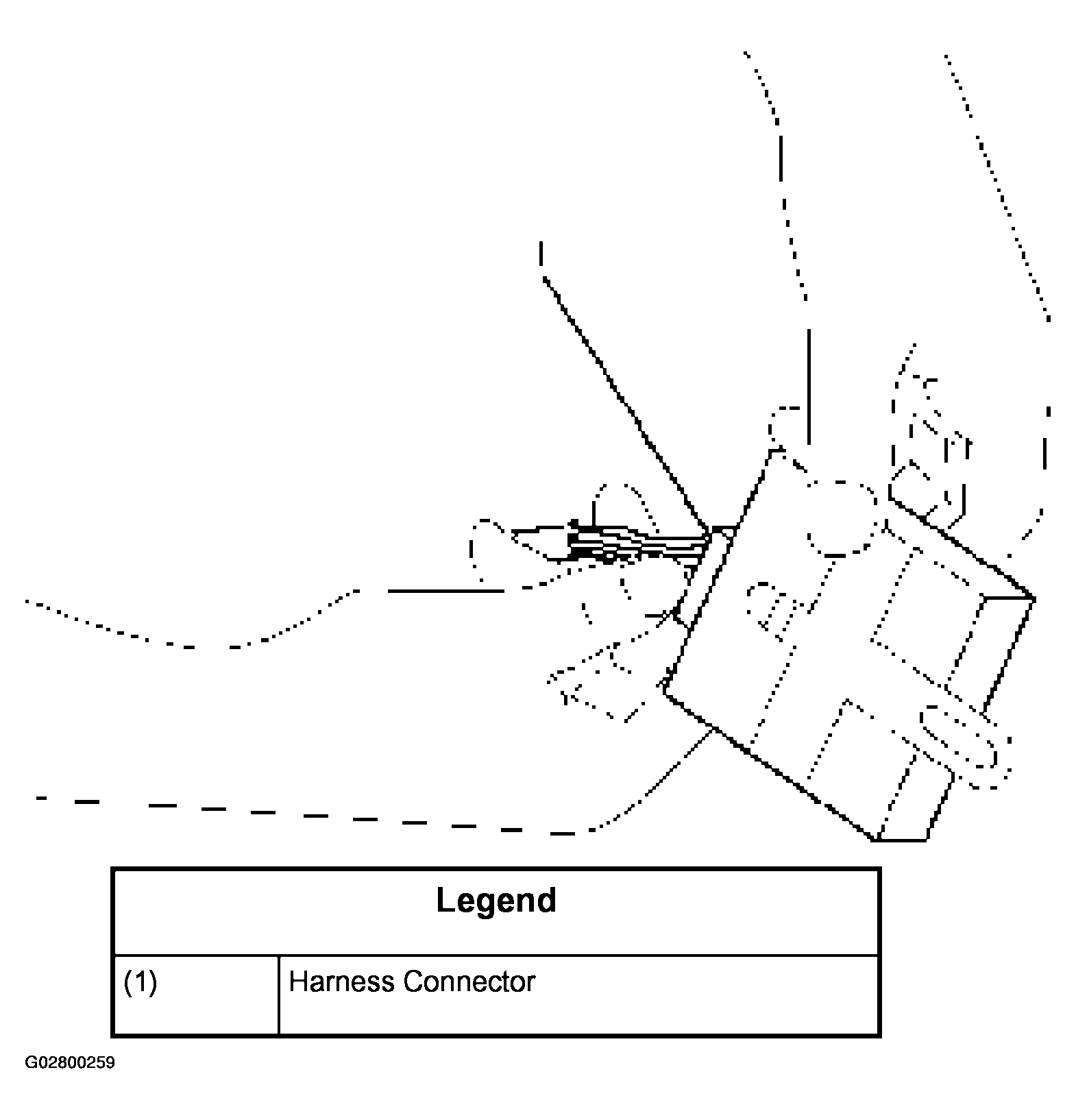

Fig 1: Disconnecting Harness Connector
G02800259Courtesy of ISUZU MOTOR CO.
