Chart TC-2 Transmission Input Inspection Procedure (Use TECH 2)
Chart TC-2 Transmission Input Inspection Procedure (Use TECH 2)

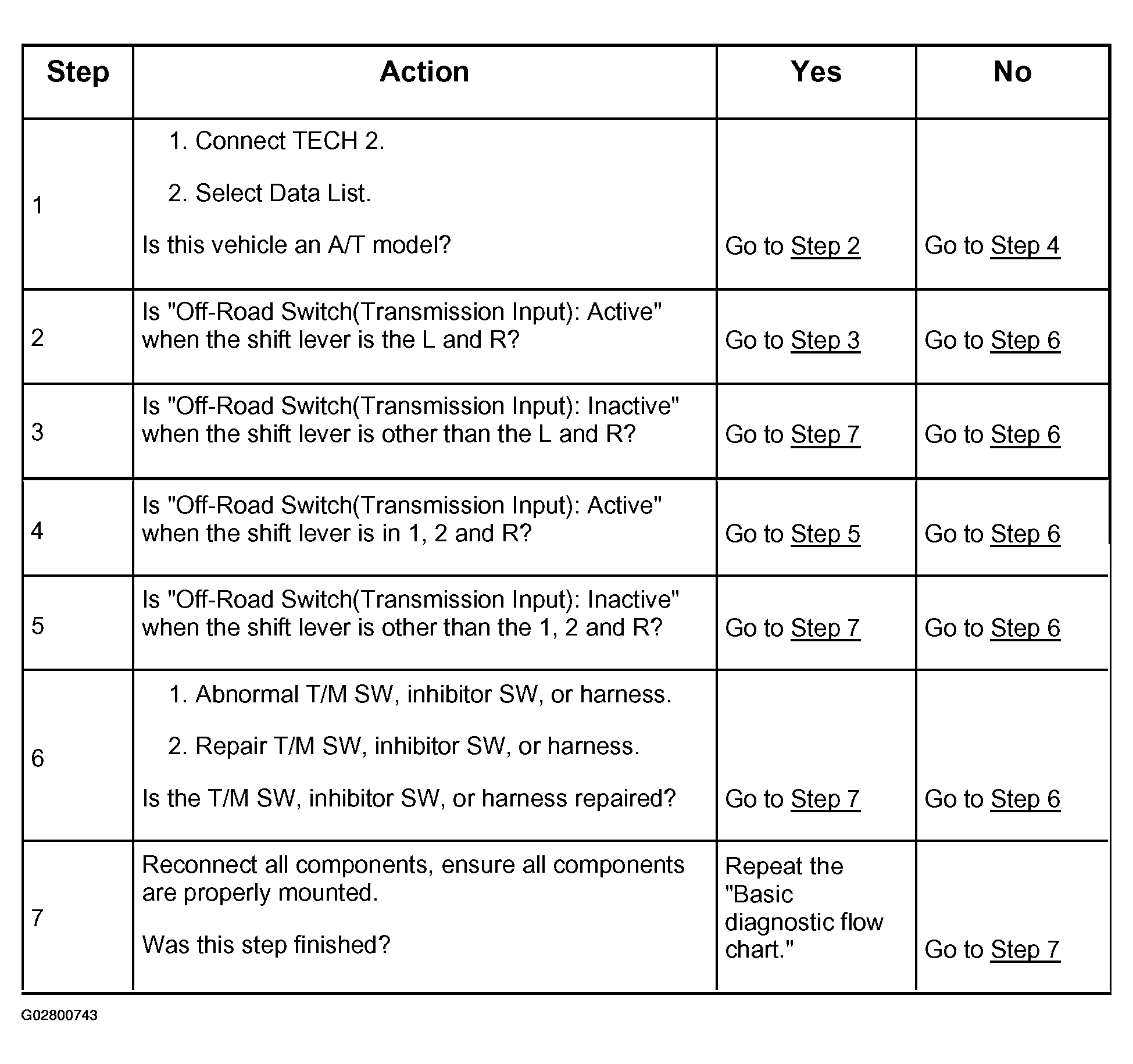

Fig 1: Transmission Input Inspection Procedure (Use TECH 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
