Bulb Check

When the starter switch is turned on, the TOD indicator lamps go on as shown below.

NOTE: Once the starter switch is turned on, all the TOD indicator lamps are lit for two seconds even if the transfer lever is in any position.

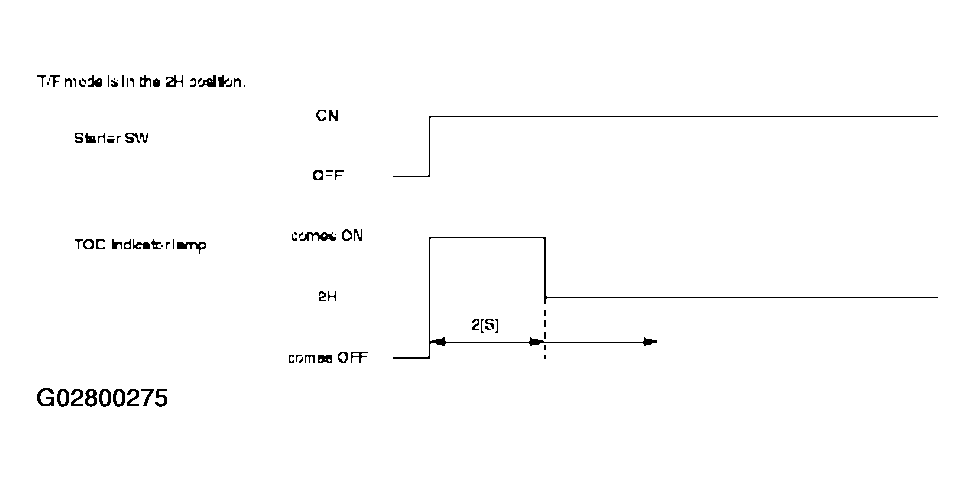

Fig 1: Checking Bulb
G02800275Courtesy of ISUZU MOTOR CO.
