Stop Light Switch: Installation

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: While adjusting the installation of the stop light switch, make sure that the threaded part of the stop light switch does not push the brake pedal.

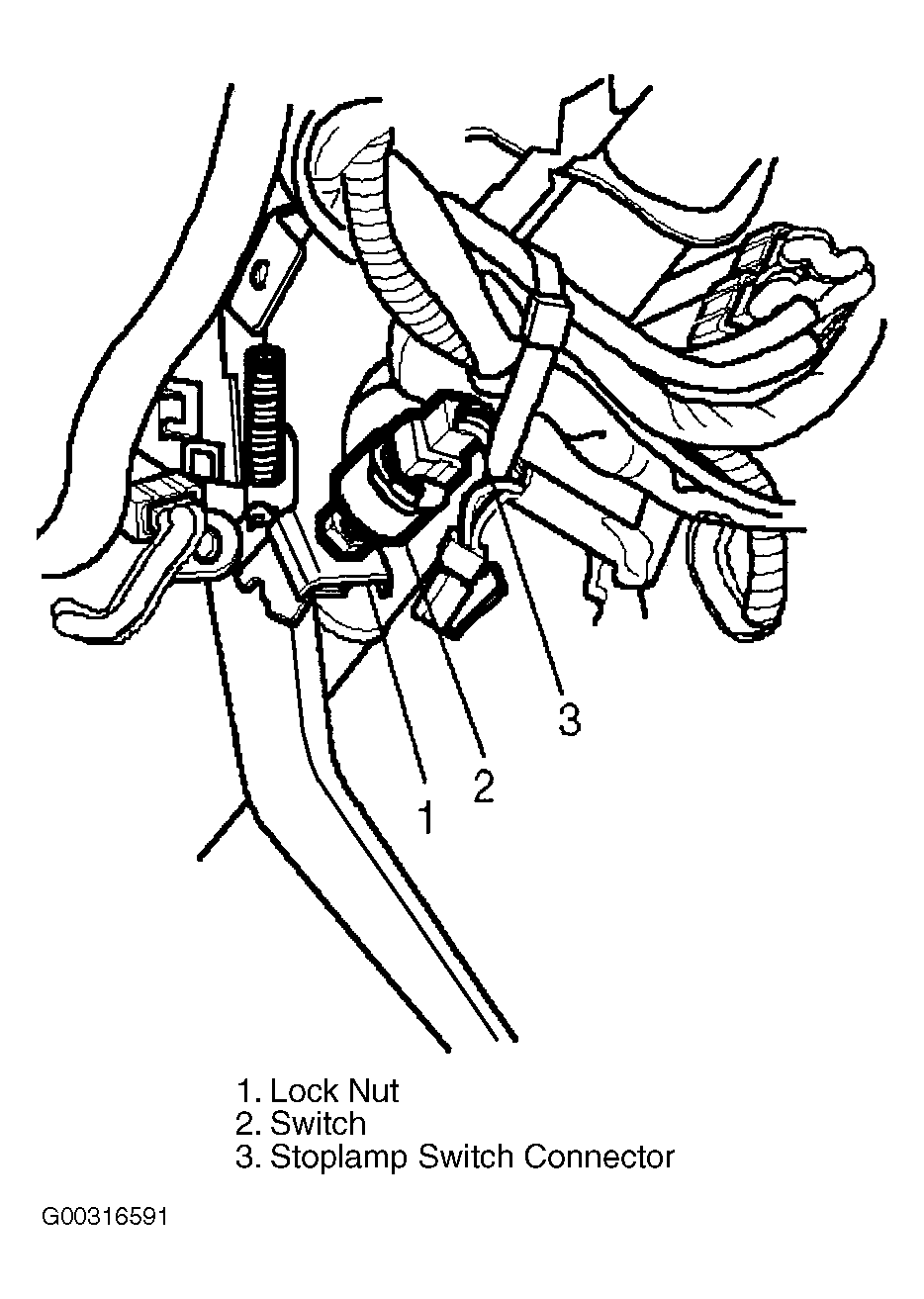

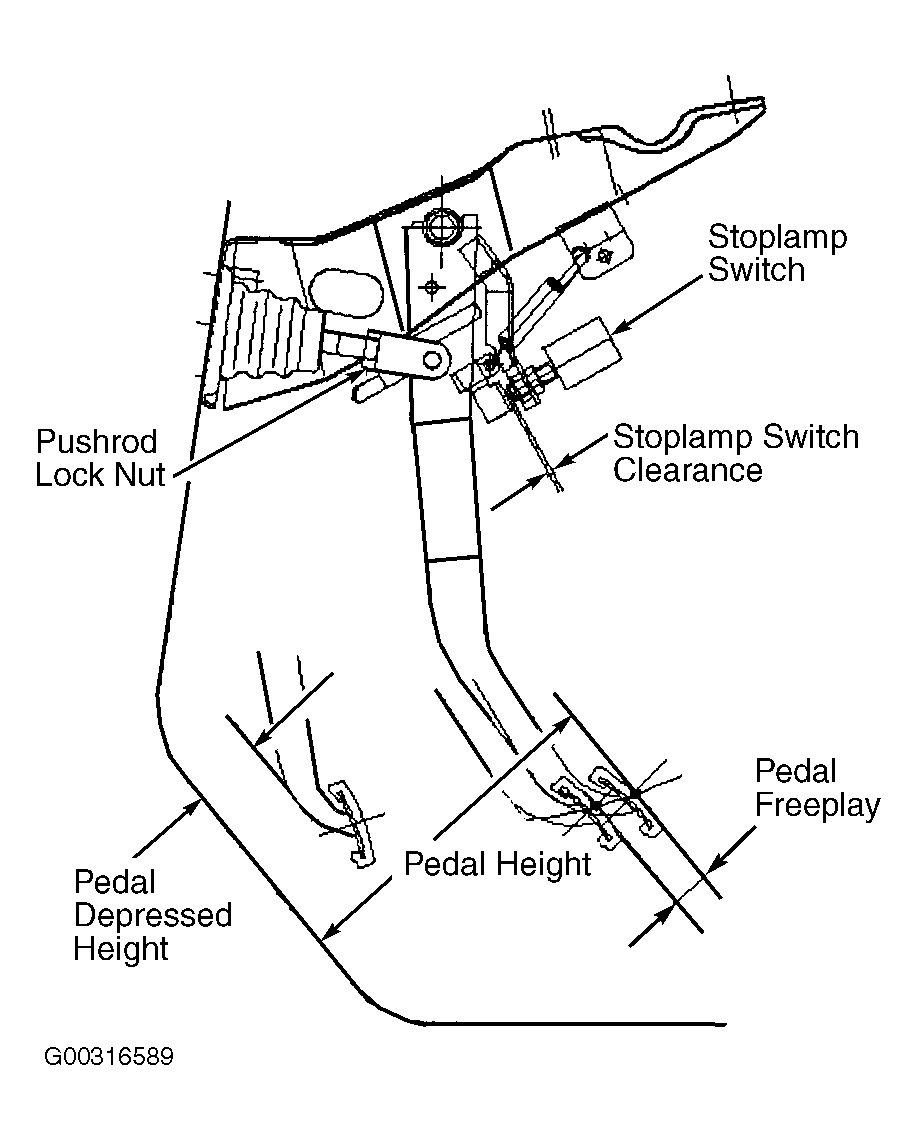

  1. Install stop light switch. See Figure . Adjust the stop light switch to 0-0.008" (0-0.2 mm) of clearance (between the switch housing and the brake pedal) by rotating the switch housing. See Figure .
  2. Install lock nut. Connect stop light switch connector.

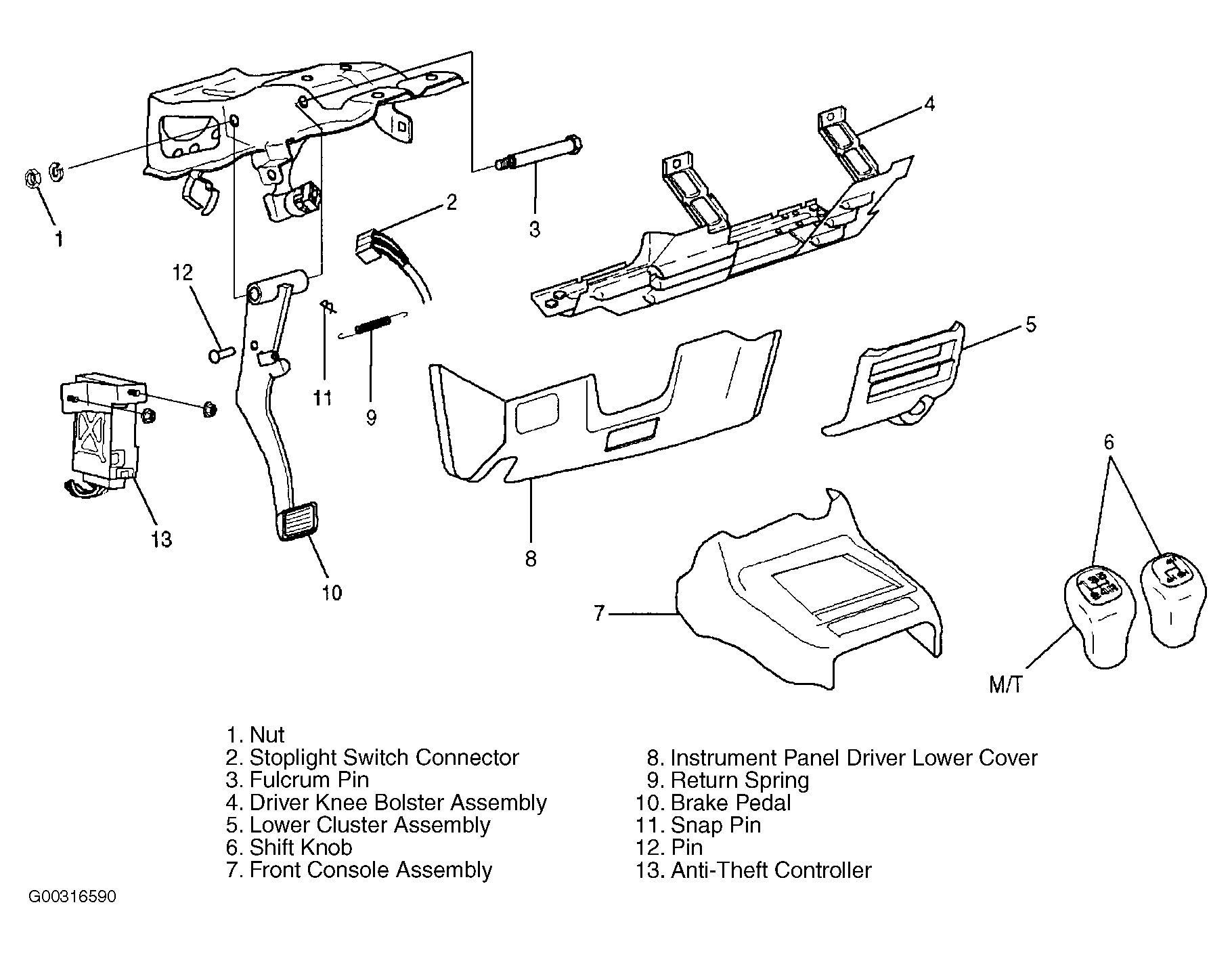

  3. Install driver knee bolster assembly and instrument panel driver lower cover. See Figure .
  4. Install lower cluster assembly, front console assembly and shift knob.
