Isuzu
>>
2001
>>
Trooper LS, RWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Transfer Case (Tod)
>>
Special Tools
Special Tools

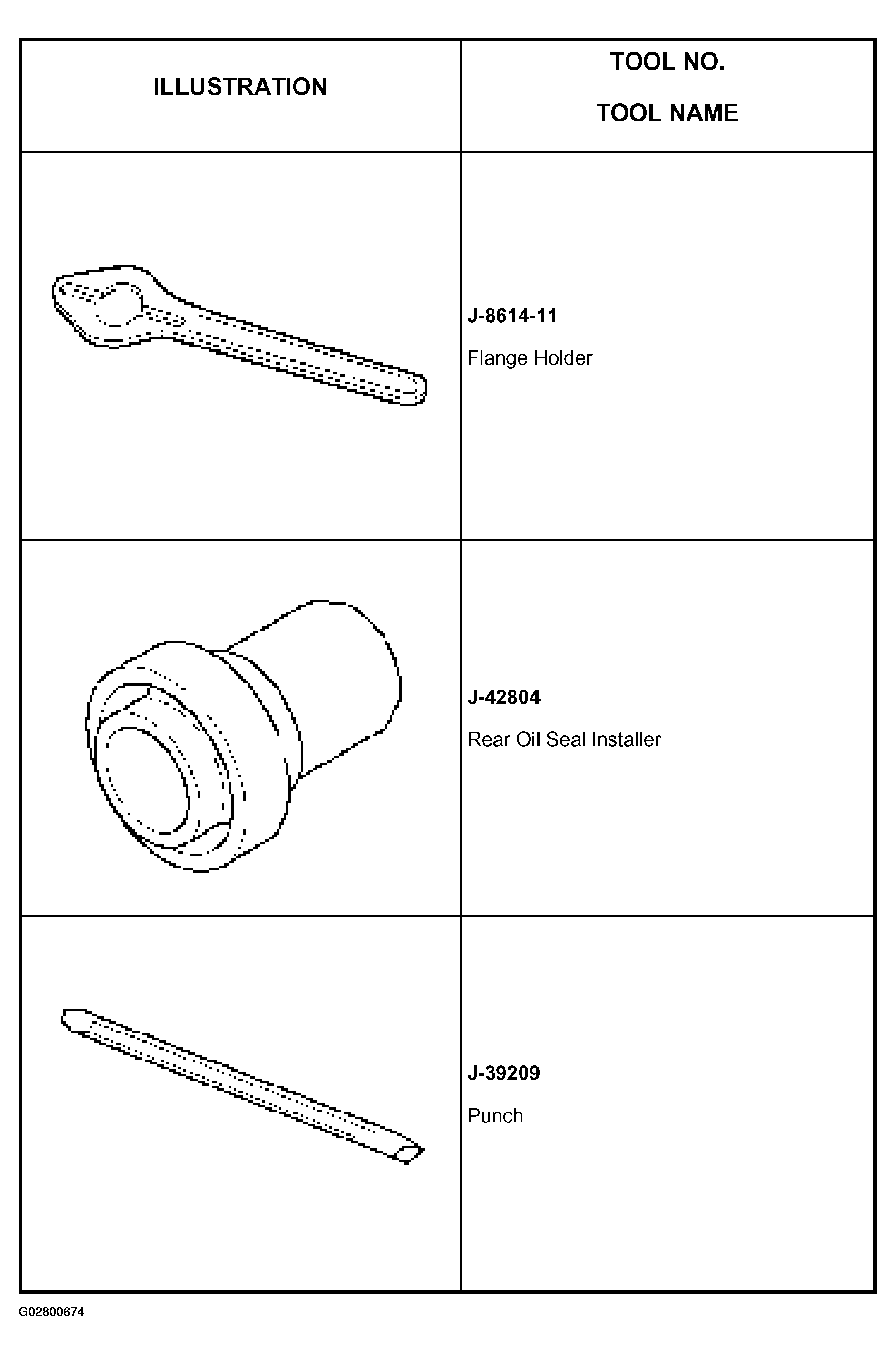

Fig 1: Identifying Special Tools (1 Of 4)
Courtesy of ISUZU MOTOR CO.

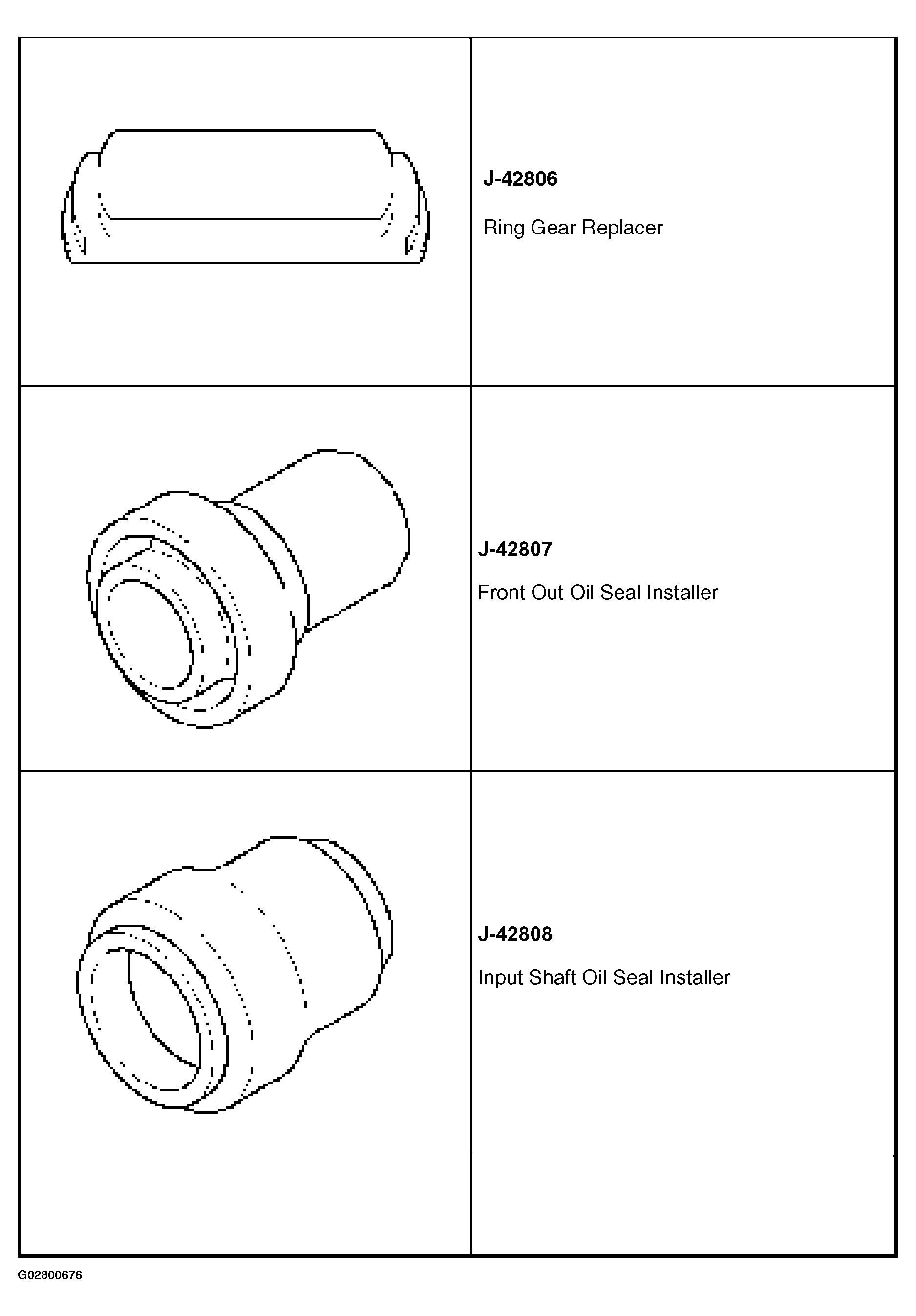

Fig 2: Identifying Special Tools (2 Of 4)
Courtesy of ISUZU MOTOR CO.

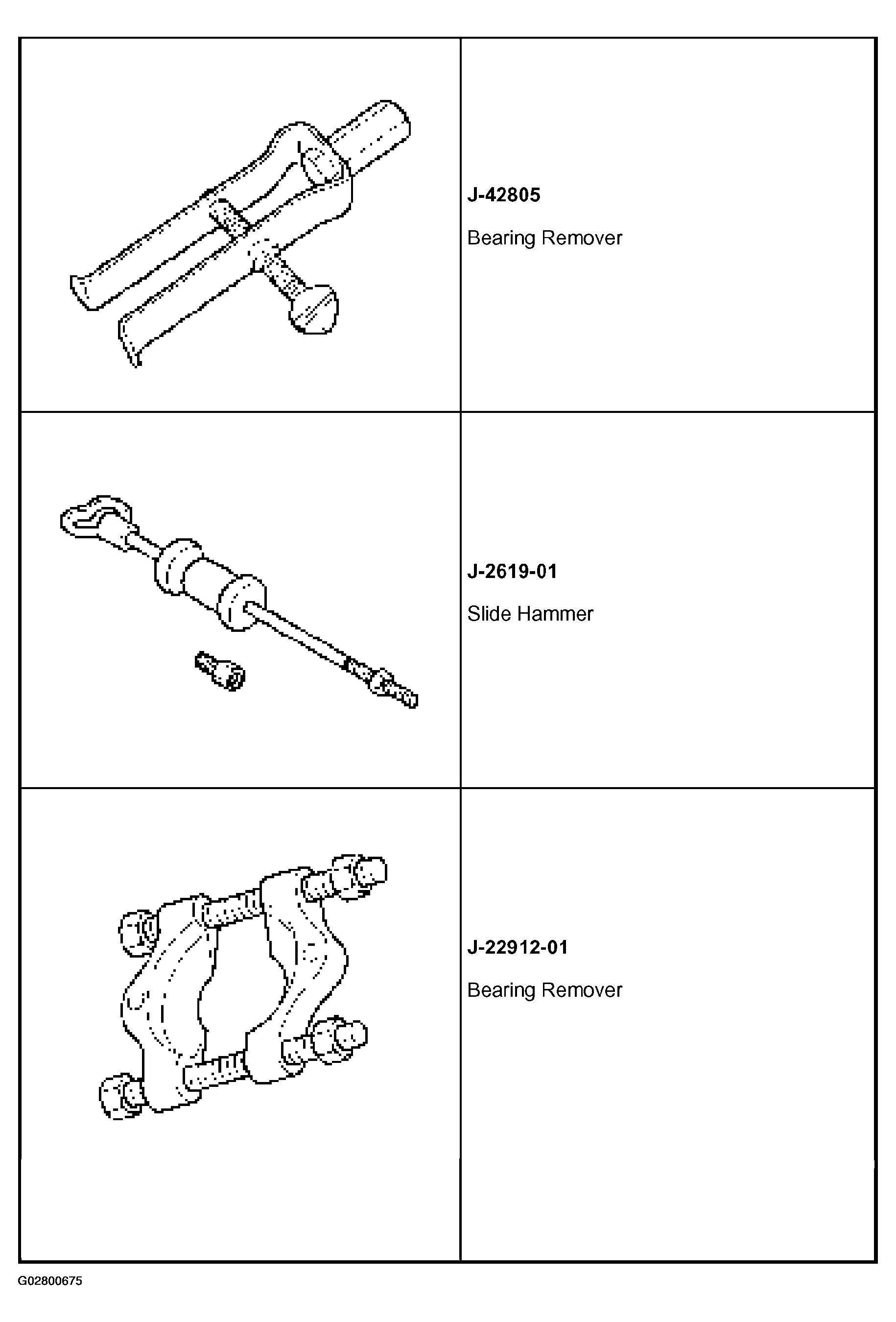

Fig 3: Identifying Special Tools (3 Of 4)
Courtesy of ISUZU MOTOR CO.

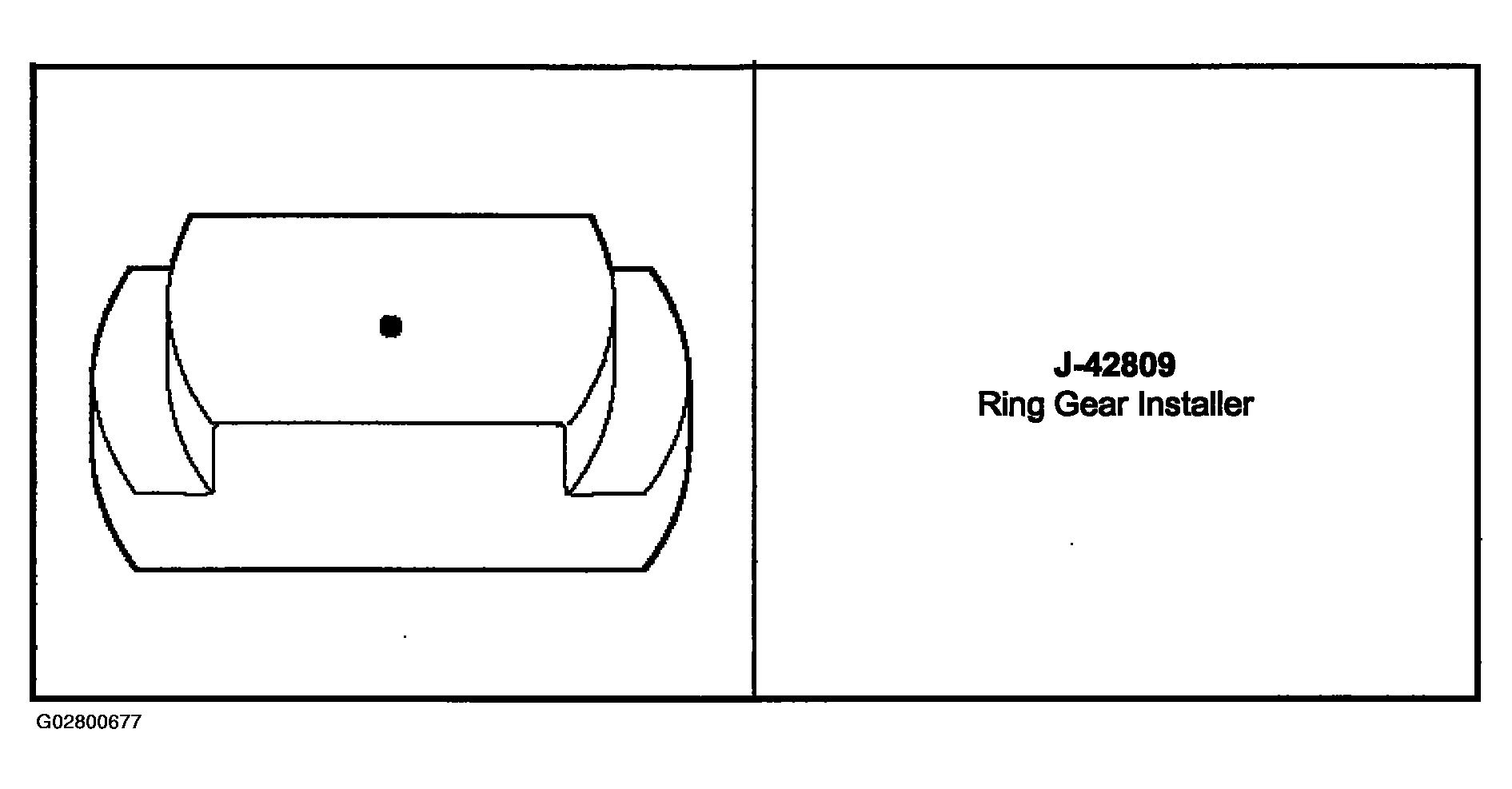

Fig 4: Identifying Special Tools (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
