Tod Ecu

This control unit is mounted to the front right hand seat via a special bracket.

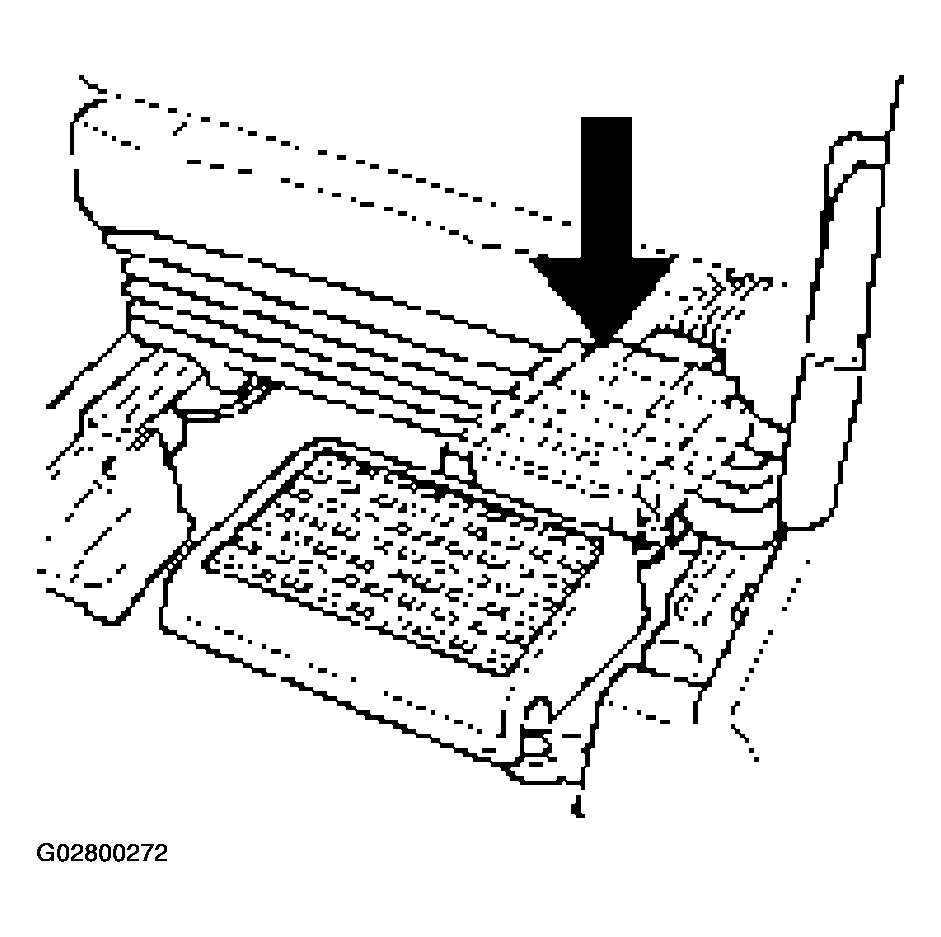

Fig 1: Identifying TOD ECU

G02800272

Courtesy of ISUZU MOTOR CO.
