Electromagnetic Coil

Receives the duty signals from the TOD control unit and controls the pressing force of the clutch pressure cam.

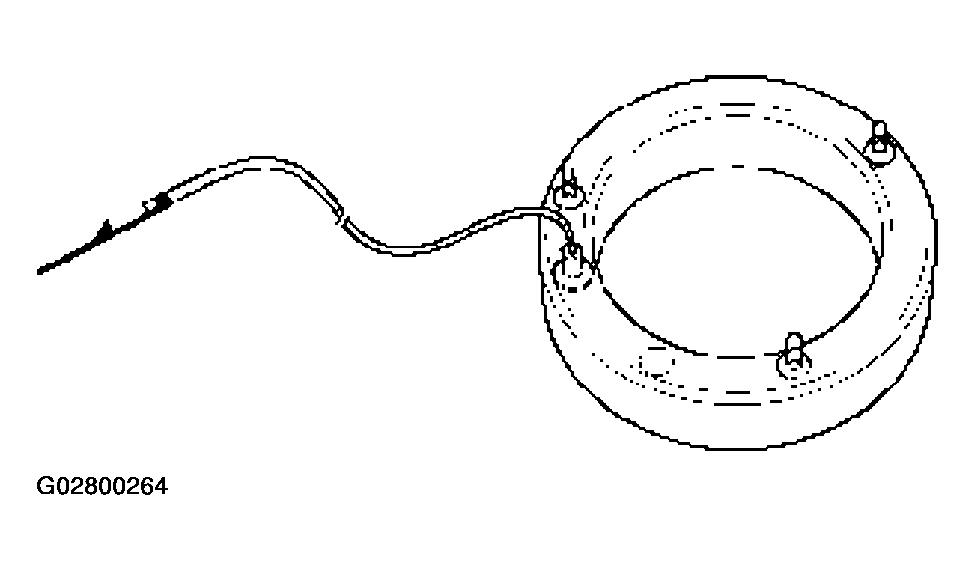

Fig 1: Identifying Electromagnetic Coil
G02800264Courtesy of ISUZU MOTOR CO.
