Transfer Position and Drive Mode

Three drive modes can be selected through operation of 4WD switch and transfer lever.

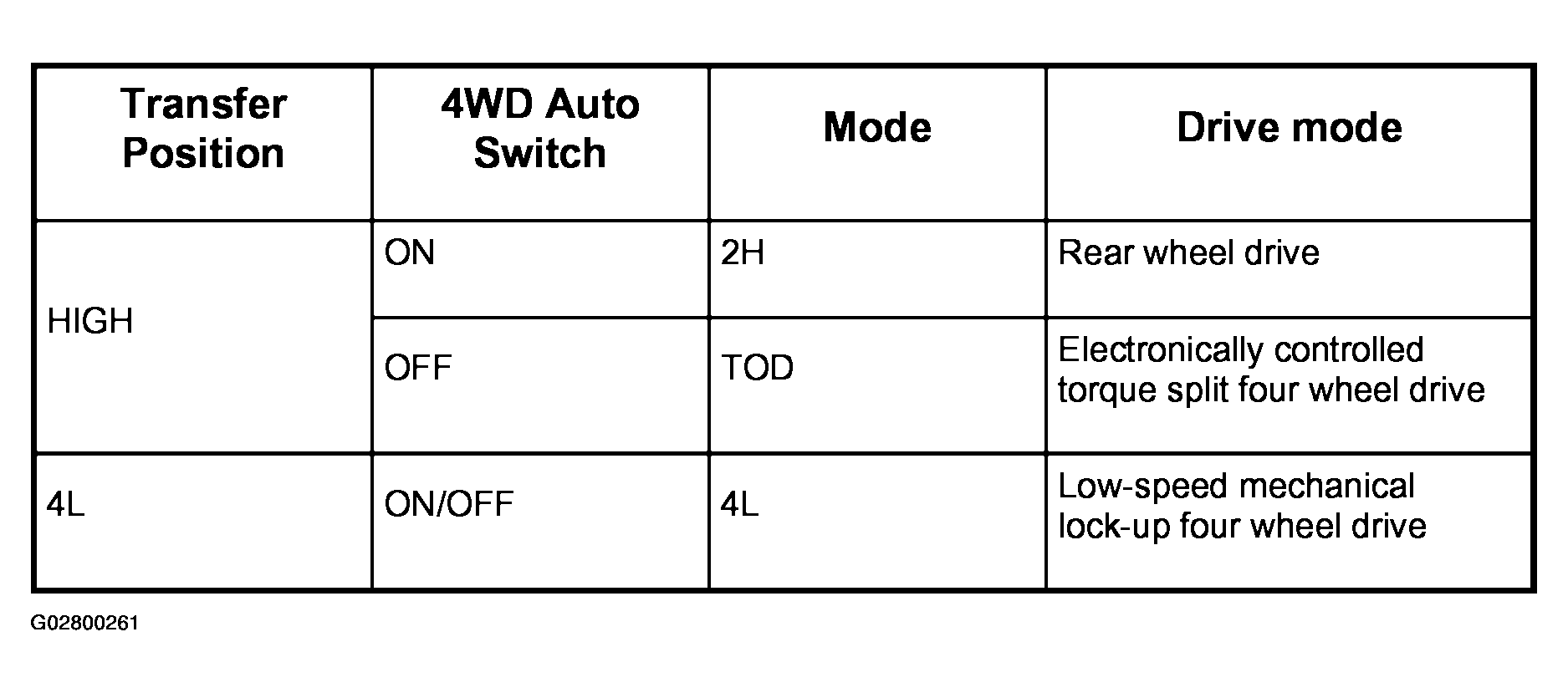

Fig 1: Transfer Position And Drive Mode Chart

Courtesy of ISUZU MOTOR CO.

The electronic control unit (ECU) judges the signals from the transfer lever and controls the transfer drive mode and shift-on-the-fly system status.
