Home >> Isuzu >> 2001 >> Trooper LS, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transmission Control System (4L30-E) >> Diagnosis >> DTC P0730 Gear Error Without Input Speed >> Notes

DTC P0730 Gear Error Without Input Speed: Notes

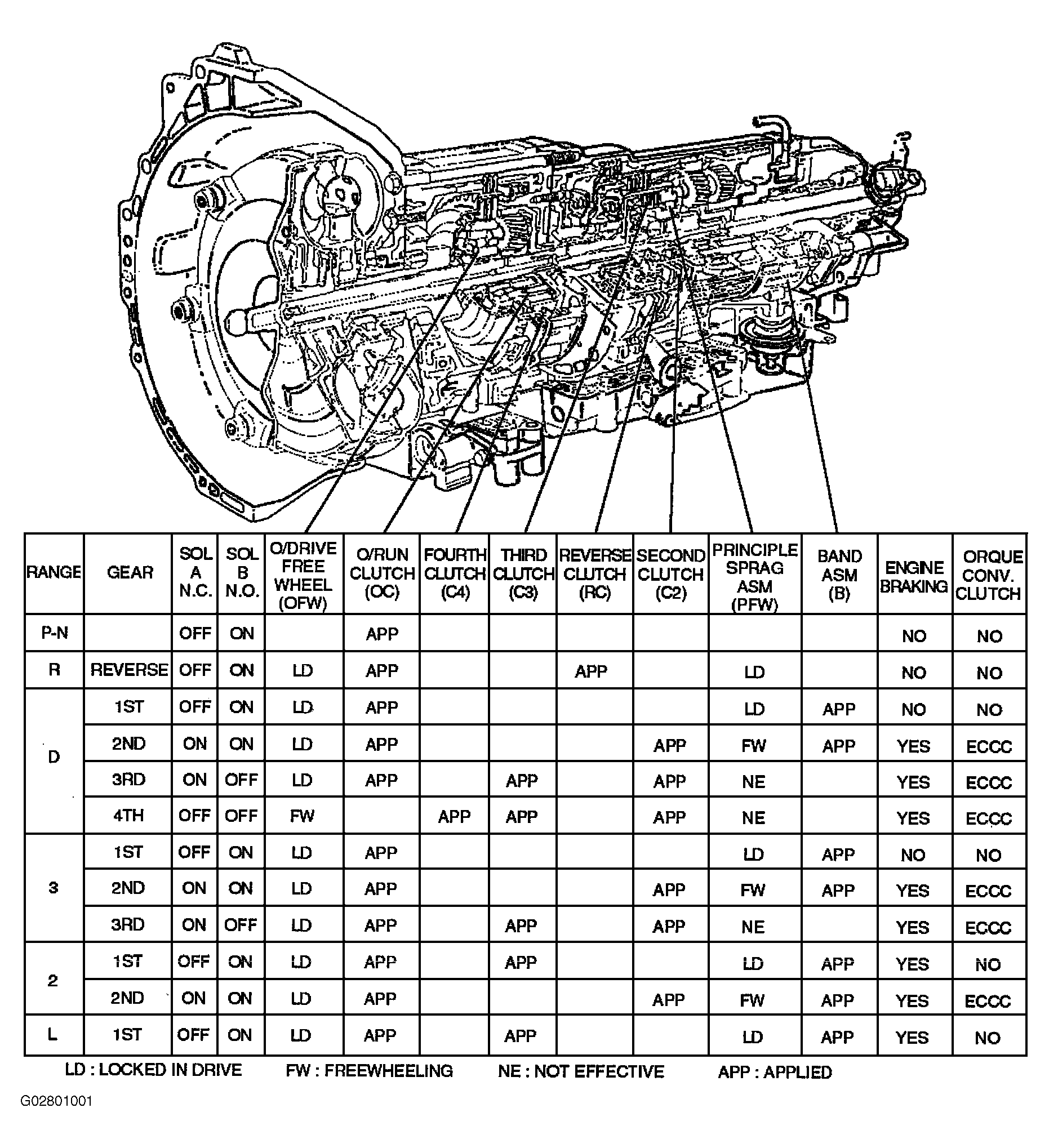

Fig 1: DTC P0730 Gear Error Without Input Speed Solenoid, Clutch And Band Application Table

G02801001

Courtesy of ISUZU MOTOR CO.
