Selector Lever: Removal

  1. Disconnect battery ground cable.
  2. Remove transfer control lever knob (4X4).
  3. Remove front console.
    • Disconnect wiring harness connectors from front console.
  4. Disconnect shift lock cable (1) from the selector lever assembly side.

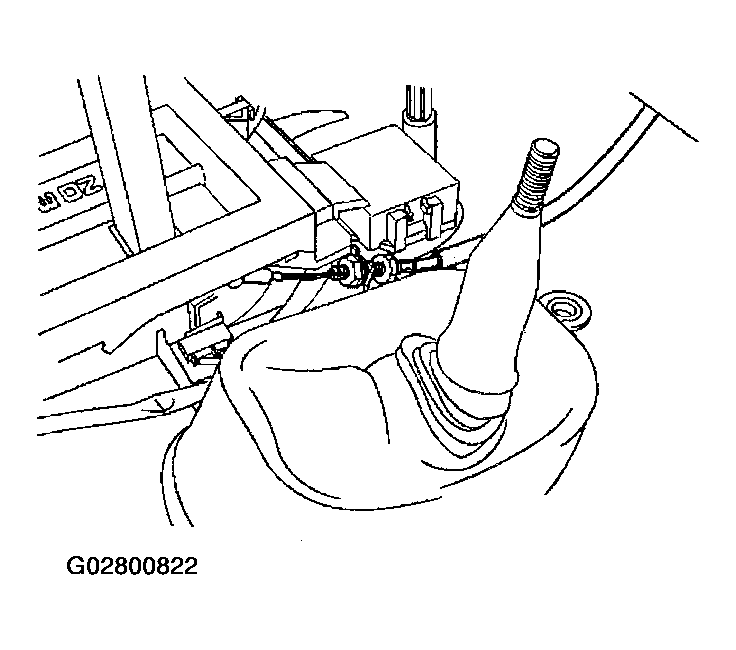

    Fig 1: Disconnecting Shift Lock Cable From Selector Lever Assembly Side
    G02800822Courtesy of ISUZU MOTOR CO.
  5. Disconnect shift control rod (2) from the selector lever assembly side.

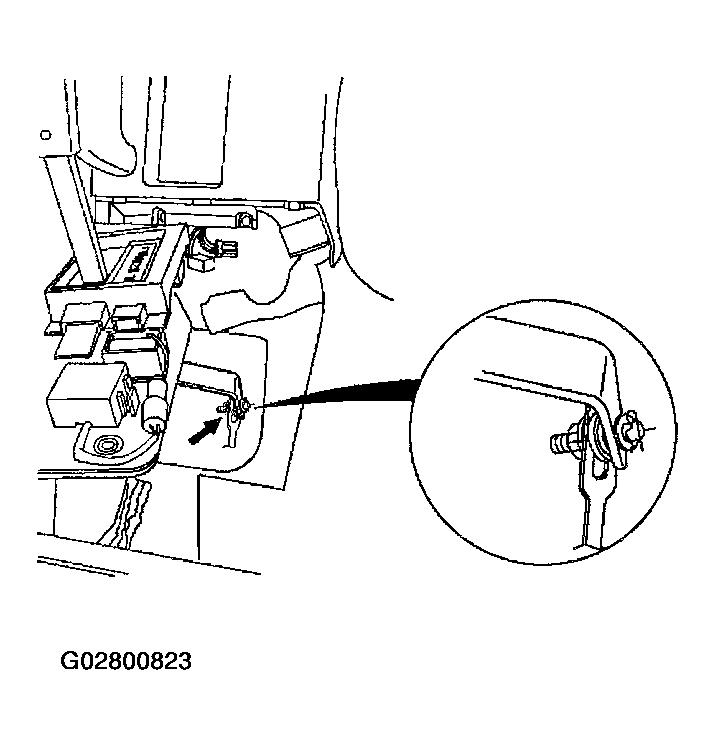

    Fig 2: Disconnecting Shift Control Rod From Selector Lever Assembly Side
    G02800823Courtesy of ISUZU MOTOR CO.
  6. Disconnect wiring harness connectors from the selector lever assembly.
  7. Remove selector lever assembly.
