Rear Wheel Speed Sensor and Associated Parts: Notes

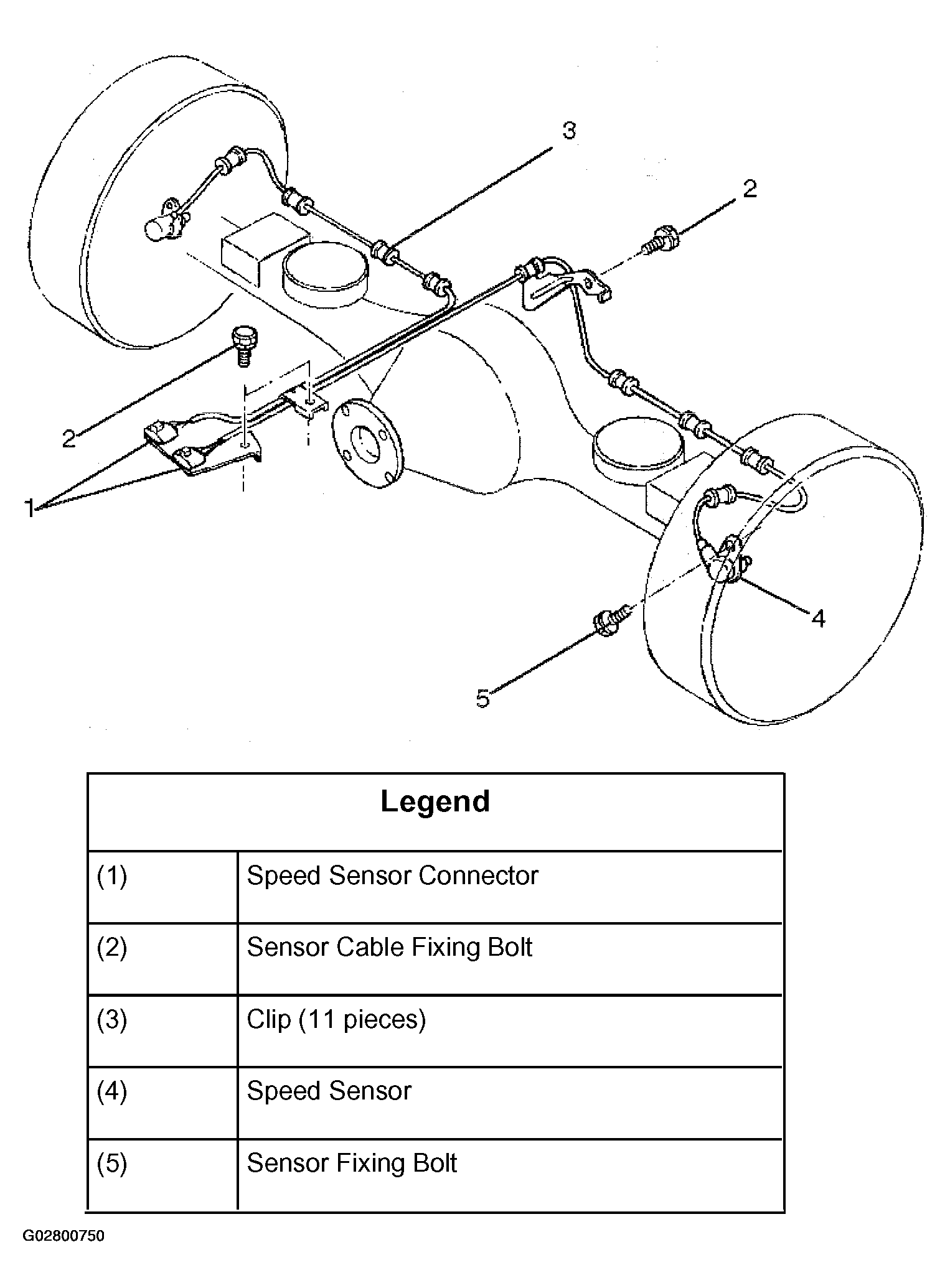

Fig 1: Locating Rear Wheel Speed Sensor And Associated Parts

G02800750

Courtesy of ISUZU MOTOR CO.
